1993 Yamaha GTS1000 Swing Arm OEM Parts Diagram

Submodel GTS1000AEC - 1993

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SWING ARM

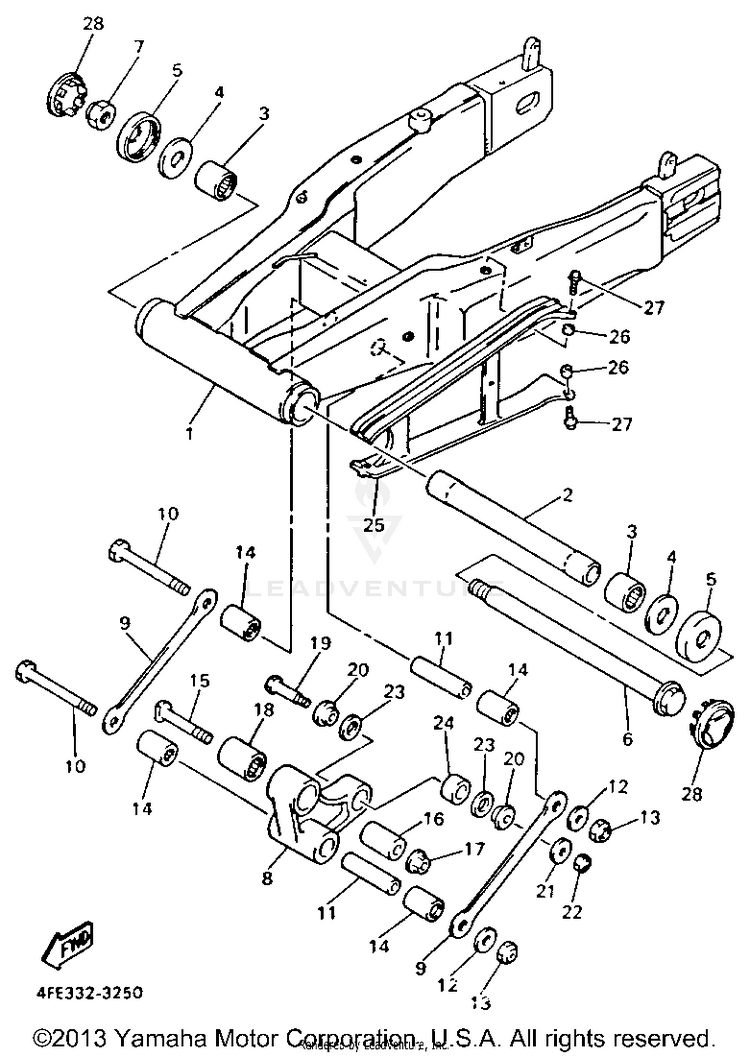

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14FE-22110-00-P1REAR ARM COMP. | LIGHT YELLOWISH GRAY 1$1,054.99$856.95Usually ships in 7-10 business days
24BH-22184-00-00BUSH$87.99$68.63Usually ships in 7-10 business days
393317-52897-00

(replaces part #
93317-52865-00)

BEARING$63.99$49.91Usually ships in 7-10 business days
44BH-22127-00-00SHIM$9.49$8.54Usually ships in 7-10 business days
54BH-22128-00-00COVER, THRUST 1$21.99$18.03Usually ships in 7-10 business days
64BH-22141-00-00SHAFT, PIVOT$91.99$71.75Usually ships in 7-10 business days
790185-20160-00NUT, SELF-LOCKING$45.99$37.71Usually ships in 7-10 business days
84BH-2217A-00-00ARM, RELAY$221.99$173.15Usually ships in 7-10 business days
94BH-2217M-00-00ARM 1$35.99$29.51Usually ships in 7-10 business days
1090101-12749-00BOLT$10.49$8.60Usually ships in 7-10 business days
1190387-126Y1-00COLLAR$24.99$20.49Usually ships in 7-10 business days
1290201-126A7-00WASHER, PLATE$10.49$8.1810+ In-Stock
1390185-12119-00NUT, SELF-LOCKING$12.49$9.746 In-Stock
1493317-41761-00BEARING$46.99$38.53Usually ships in 7-10 business days
1590109-101F1-00BOLT$11.49$9.42Usually ships in 7-10 business days
1690387-100T8-00COLLAR$23.99$19.67Usually ships in 7-10 business days
1790185-10170-00

(replaces part #
95601-10200-00)

NUT, SELF-LOCKING$10.49$8.187 In-Stock
1893317-42060-00BEARING$50.99$39.77Usually ships in 7-10 business days
1990101-10659-00BOLT$10.49$8.182 In-Stock
2090387-124W2-00COLLAR$28.99$23.77Usually ships in 7-10 business days
2190201-105R9-00

(replaces part #
90201-10437-00)

WASHER, PLATE$10.49$8.1810+ In-Stock
2290185-10060-00NUT, SELF-LOCKING$8.49$6.6210+ In-Stock
2393101-16131-00OIL SEAL$12.49$10.24Usually ships in 7-10 business days
2493399-99919-00BEARING$66.99$52.25Usually ships in 7-10 business days
254BH-22151-00-00SEAL, GUARD$82.99$64.73Usually ships in 7-10 business days
2690387-06704-00COLLAR$2.95$2.66Usually ships in 7-10 business days
2790159-06108-00SCREW, WITH WASHER$0.25$0.22Not Shipping
284BH-2219X-00-00COVER$56.99$44.45Usually ships in 7-10 business days
