1993 Yamaha XJ600S (Seca II) Crankcase OEM Parts Diagram

Submodel SECA II - XJ600SEC - 1993

Shop Aftermarket Parts

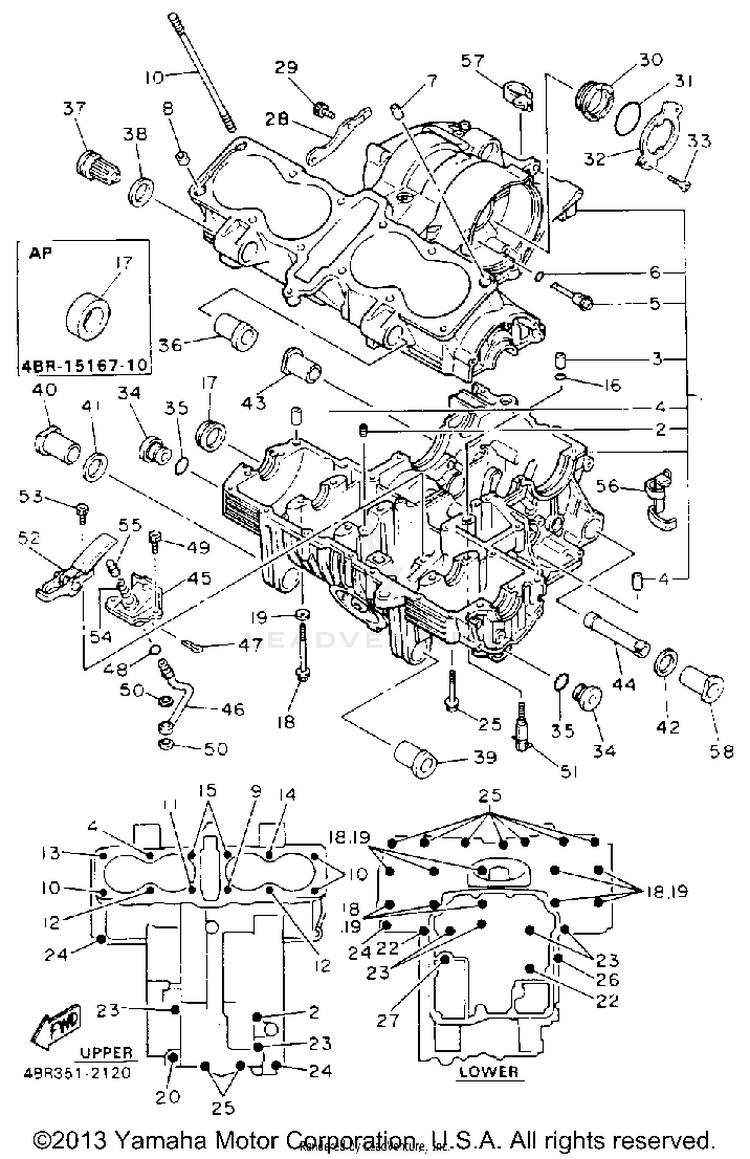

CRANKCASE

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-4BR-15167-10-00PLUG, BLIND 1 | AP$13.99$11.47Usually ships in 7-10 business days
14BR-15100-00-00CRANKCASE ASSEMBLY$492.99$422.41Usually ships in 7-10 business days
24KM-13572-01-00

(replaces part #
4G0-15138-00-00)

NOZZLE$7.99$7.19Usually ships in 7-10 business days
399530-10114-00

(replaces part #
99530-10014-00)

PIN, DOWEL$2.65$2.4810+ In-Stock
499530-12016-00

(replaces part #
99510-12016-00)

PIN, DOWEL$4.89$4.2110+ In-Stock
54BR-15148-00-00NOZZLE 2$35.99$29.51Usually ships in 7-10 business days
693210-11453-00O-RING$8.49$6.623 In-Stock
799530-14016-00PIN, DOWEL A$3.80$3.2710+ In-Stock
890387-16547-00COLLAR$10.49$8.184 In-Stock
990116-08338-00BOLT, STUD$10.99$9.01Usually ships in 7-10 business days
1090116-08566-00BOLT, STUD$9.49$8.54Usually ships in 7-10 business days
1190116-08339-00BOLT, STUD$9.99$8.99Usually ships in 7-10 business days
1290116-08340-00BOLT, STUD$9.49$8.54Usually ships in 7-10 business days
134BR-11363-00-00BOLT, CYLINDER HOLDING 3$12.99$10.65Usually ships in 7-10 business days
144G0-11364-00-00BOLT, CYLINDER HOLDING 4$11.99$9.83Usually ships in 7-10 business days
154G0-11363-00-00BOLT, CYLINDER HOLDING 3$14.99$12.29Usually ships in 7-10 business days
1693210-09350-00O-RING$7.49$5.8410+ In-Stock
1790338-48229-00PLUG | UR$31.99$26.23Not Shipping
1895817-08100-00

(replaces part #
95811-08100-00)

BOLT, FLANGE$6.49$5.062 In-Stock
1990201-094G1-00WASHER, PLATE$10.49$8.185 In-Stock
2095817-08080-00

(replaces part #
95811-08080-00)

BOLT, FLANGE$5.49$4.94Usually ships in 7-10 business days
2195817-06135-00

(replaces part #
95811-06135-00)

BOLT, FLANGE$4.15$3.74Usually ships in 7-10 business days
2295817-06095-00

(replaces part #
95811-06095-00)

BOLT, FLANGE$2.90$2.61Usually ships in 7-10 business days
2395817-06065-00

(replaces part #
95811-06065-00)

BOLT, FLANGE$3.75$3.38Usually ships in 7-10 business days
2495817-06055-00

(replaces part #
95811-06055-00)

BOLT, FLANGE$2.35$2.12Usually ships in 7-10 business days
2595817-06045-00

(replaces part #
95811-06045-00)

BOLT, FLANGE$9.49$7.4010+ In-Stock
2695817-06040-00

(replaces part #
95811-06040-00)

BOLT, FLANGE$6.49$5.0610+ In-Stock
2795817-06035-00

(replaces part #
95811-06035-00)

BOLT, FLANGE$8.49$6.6210+ In-Stock
284BR-15381-00-00PLATE, BEARING COVER$7.49$6.74Usually ships in 7-10 business days
2991317-06016-00

(replaces part #
91316-06016-00)

BOLT (4MY)-$1.4210+ In-Stock
304G0-15163-01-00HOUSING, BEARING 1$20.99$17.21Usually ships in 7-10 business days
3193210-45578-00

(replaces part #
93210-48460-00)

O-RING$9.49$7.538 In-Stock
324G0-15383-00-00PLATE, BEARING COVER$13.49$11.06Usually ships in 7-10 business days
3390151-06014-00SCREW, COUNTERSUNK$10.49$8.60Usually ships in 7-10 business days
343KM-15189-00-00PLUG$43.99$36.07Usually ships in 7-10 business days
3593210-20573-00O-RING$9.49$7.408 In-Stock
364G0-15336-00-00DAMPER, ENGINE MOUNT 3$34.99$28.69Usually ships in 7-10 business days
3733M-15336-00-00DAMPER, ENGINE MOUNT 3$16.49$13.52Usually ships in 7-10 business days
3890202-15153-00WASHER, PLATE$2.75$2.48Usually ships in 7-10 business days
394G0-15316-00-00DAMPER, ENGINE MOUNT 1$27.93$22.90Usually ships in 7-10 business days
4033M-15337-00-00DAMPER 4$16.99$13.93Usually ships in 7-10 business days
4190202-15153-00WASHER, PLATE$2.75$2.48Usually ships in 7-10 business days
4290202-17211-00WASHER, PLATE$6.49$5.84Usually ships in 7-10 business days
4346X-15326-00-00DAMPER, ENGINE MOUNT 2$60.99$47.57Usually ships in 7-10 business days
444BR-15327-00-00SPACER, ENGINE MOUNT$22.99$18.85Usually ships in 7-10 business days
454G0-11592-00-00TENSIONER, CHAIN$53.99$42.11Usually ships in 7-10 business days
464G0-13171-00-00PIPE, DELIVERY 2$21.99$18.03Usually ships in 7-10 business days
4791490-25020-00

(replaces part #
91401-25020-00)

PIN. COTTER$3.45$2.9710+ In-Stock
4893210-07540-00O-RING$7.49$5.8410+ In-Stock
4990110-06158-00BOLT, HEXAGON SOCKET HEAD$1.55$1.40Usually ships in 7-10 business days
5090430-10171-00BOLT, UNION$3.45$2.9710+ In-Stock
514G0-11575-00-00RELIEF VALVE ASSY$46.99$38.53Usually ships in 7-10 business days
524BR-11492-00-00TENSIONER ARM COMP.$106.99$83.45Usually ships in 7-10 business days
5390110-06158-00BOLT, HEXAGON SOCKET HEAD$1.55$1.40Usually ships in 7-10 business days
5490501-143A8-00SPRING, COMPRESSION$4.90$4.41Usually ships in 7-10 business days
5546X-11597-00-00PLUNGER, TENSIONER$25.99$21.31Usually ships in 7-10 business days
5690462-08087-00CLAMP$7.49$6.74Usually ships in 7-10 business days
5790465-10290-00CLAMP$10.49$8.60Usually ships in 7-10 business days
5890387-125Y2-00COLLAR$17.99$14.75Usually ships in 7-10 business days
