1993 Yamaha XJ600S (Seca II) Cylinder Head OEM Parts Diagram

Submodel SECA II - XJ600SEC - 1993

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

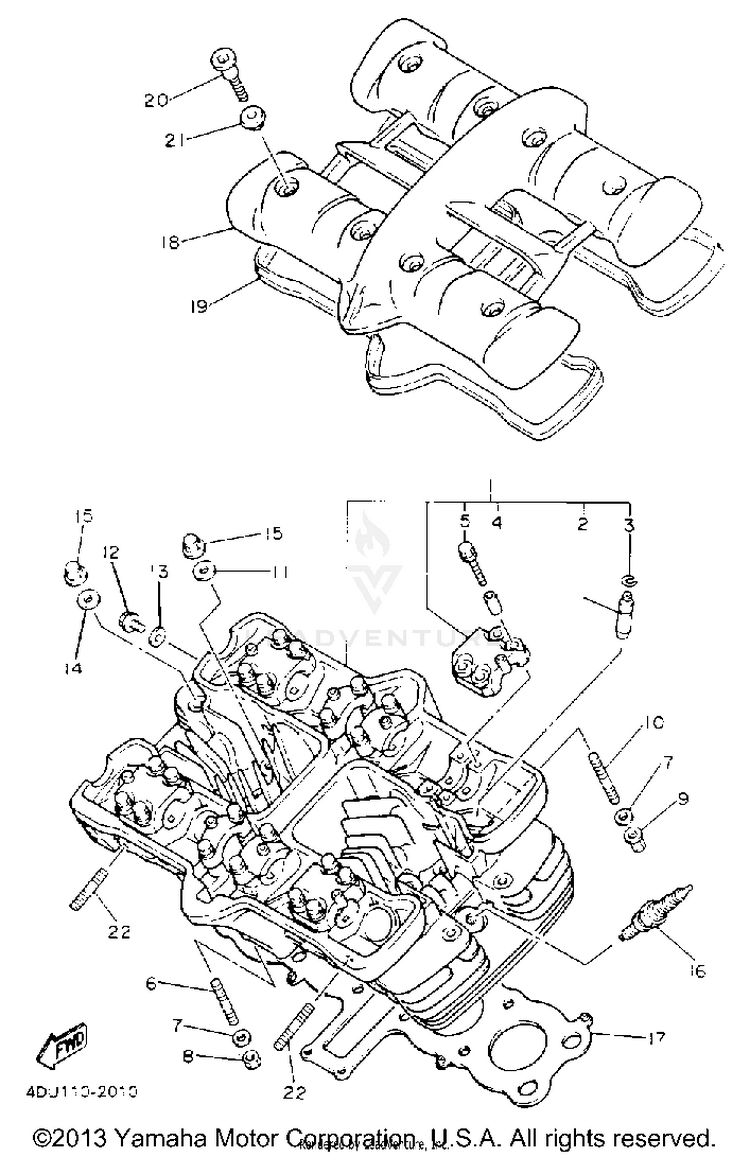

CYLINDER HEAD

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14BR-11101-00-00CYLINDER HEAD ASSEMBLY$1,183.99$991.16Usually ships in 7-10 business days
24BR-11133-10-00GUIDE, INTAKE VALVE$59.99$46.79Usually ships in 7-10 business days
393440-09141-00CIRCLIP$2.45$2.1110+ In-Stock
491808-16023-00

(replaces part #
99510-08016-00)

PIN, DOWEL$7.99$6.2310+ In-Stock
590105-06153-00BOLT, FLANGE$4.45$4.00Usually ships in 7-10 business days
650M-14651-00-00

(replaces part #
95612-06618-00)

BOLT$4.35$3.92Usually ships in 7-10 business days
792990-06600-00

(replaces part #
92901-06600-00)

WASHER, PLAIN (646)$2.95$2.797 In-Stock
895317-06600-00

(replaces part #
95311-06600-00)

NUT$3.85$3.3110+ In-Stock
990179-06500-00

(replaces part #
90179-06499-00)

NUT$8.49$6.6210+ In-Stock
1095617-06625-00

(replaces part #
95612-06625-00)

BOLT, STUD$9.49$7.403 In-Stock
1190201-094G1-00WASHER, PLATE$10.49$8.185 In-Stock
1290153-06029-00

(replaces part #
90153-06045-00)

SCREW, HEXAGON$9.49$7.40
1390430-06014-00GASKET$8.99$7.0110+ In-Stock
1490201-080L7-00WASHER, PLATE$4.05$3.4810+ In-Stock
1590176-08026-00NUT, CROWN$16.49$12.8610+ In-Stock
16CR8-E0000-00-00

(replaces part #
NGK-CR8E0-00-00)

PLUG, SPARK (NGK CR8E) | UR$10.49$8.1810+ In-Stock
174BR-11181-00-00GASKET, CYLINDER HEAD 1$156.99$122.45Usually ships in 7-10 business days
184DU-11191-00-00COVER, CYLINDER HEAD 1$273.36$213.22Usually ships in 7-10 business days
194BR-11193-00-00GASKET, HEAD COVER 1$127.99$99.83Usually ships in 7-10 business days
2090109-066F0-00BOLT$9.49$7.4010+ In-Stock
215EA-1111G-00-00

(replaces part #
4BR-1111G-09-00)

RUBBER, MOUNT 1$28.99$22.6110+ In-Stock
2295617-08620-00

(replaces part #
90116-08360-00)

BOLT, STUD$8.49$6.6210+ In-Stock
