1993 Yamaha XT600 Generator OEM Parts Diagram

Submodel XT600EEC - 1993

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

GENERATOR

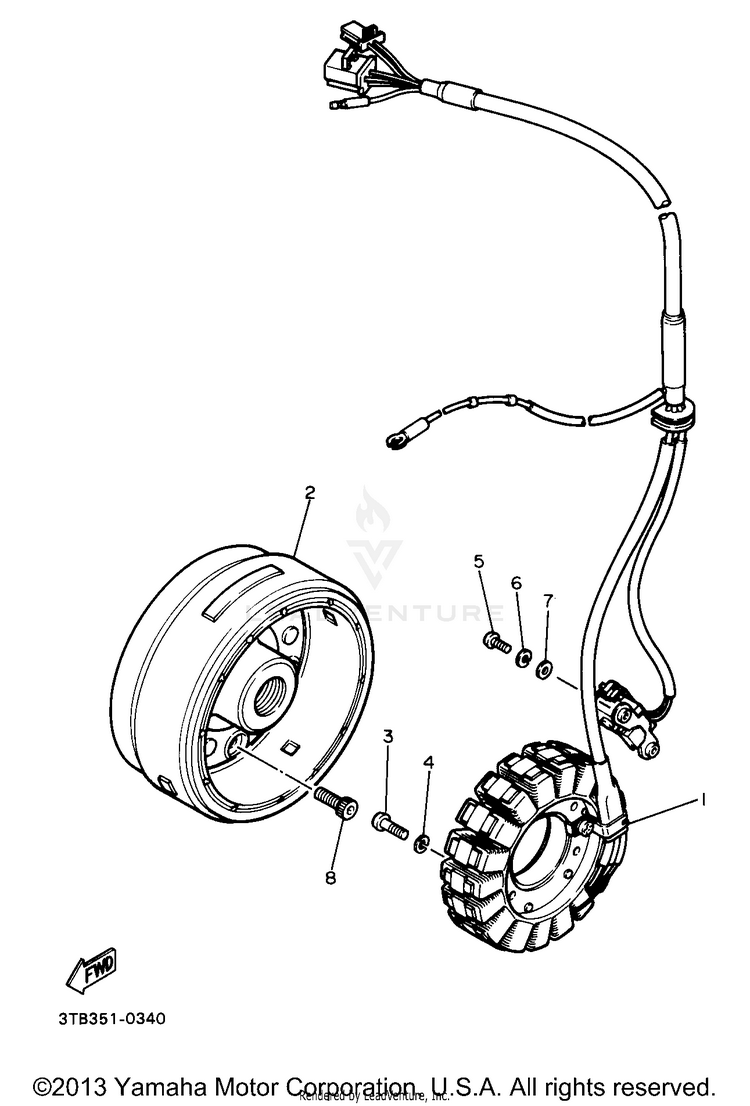

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13TB-81410-00-00STATOR ASSEMBLY$544.99$456.00Usually ships in 7-10 business days
23TB-81450-01-00

(replaces part #
3TB-81450-00-00)

ROTOR ASSY$356.99$278.45Usually ships in 7-10 business days
398517-06025-00

(replaces part #
98501-06025-00)

SCREW, PAN HEAD$4.05$3.4810+ In-Stock
492995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
598507-05016-00

(replaces part #
98501-05016-00)

SCREW, WITH WASHER$1.80$1.5510+ In-Stock
692990-05100-00WASHER, SPRING-$0.8310+ In-Stock
792990-05600-00

(replaces part #
92901-05600-00)

WASHER, PLATE$1.60$1.44Usually ships in 7-10 business days
891317-08025-00

(replaces part #
90110-08193-00)

BOLT$9.49$7.407 In-Stock
