1993 Yamaha XT600 Side Cover OEM Parts Diagram

Submodel XT600EEC - 1993

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

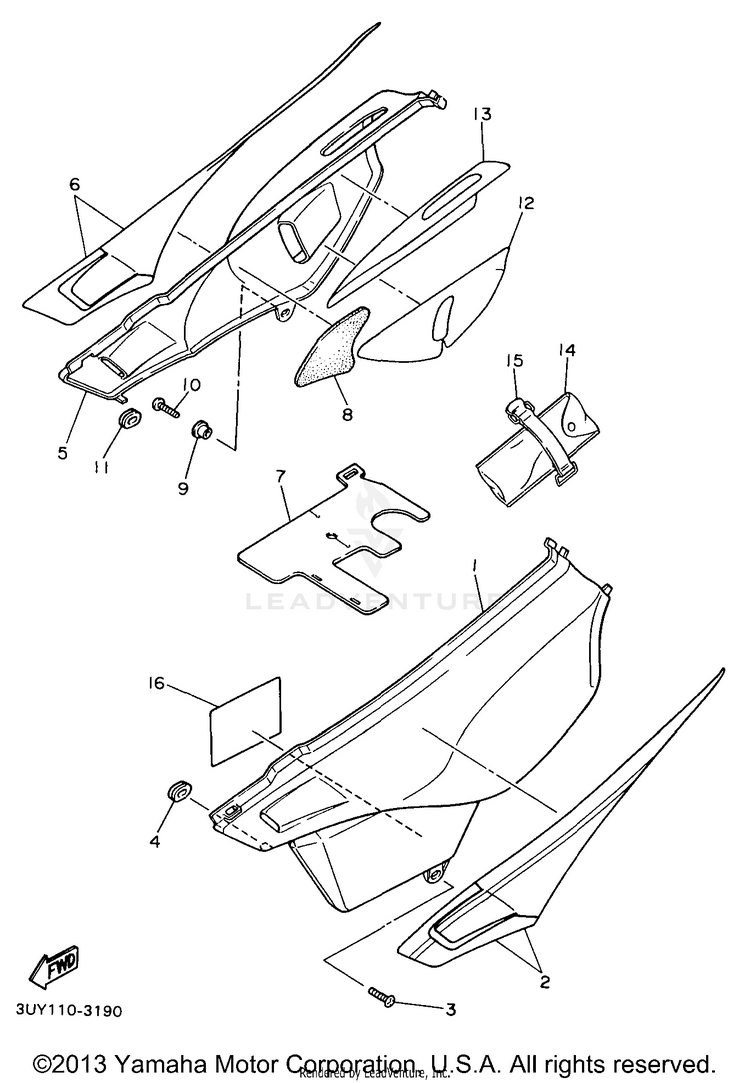

SIDE COVER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-3UY-2179R-30-00PLATE, EPA 1 | UR CA ONLY$41.99$34.43Usually ships in 7-10 business days
13TB-21711-70-00COVER, SIDE 1 | YAMAHA BLACK$68.99$53.81Not Shipping
23TB-2173L-11-00GRAPHIC SET 1$40.99$33.61Usually ships in 7-10 business days
390149-06223-00SCREW$9.49$8.54Usually ships in 7-10 business days
490480-01176-00GROMMET$12.49$9.7410+ In-Stock
53TB-21721-70-00COVER, SIDE 2 | YAMAHA BLACK$64.99$50.69Usually ships in 7-10 business days
63TB-2174L-11-00GRAPHIC SET 1$40.99$33.61Usually ships in 7-10 business days
73TB-2177F-00-00COVER$13.49$11.06Usually ships in 7-10 business days
83TB-21542-00-00DAMPER 2$5.49$4.94Not Shipping
990387-061V4-00COLLAR$6.49$6.2010+ In-Stock
1090149-06223-00SCREW$9.49$8.54Usually ships in 7-10 business days
1190480-01176-00GROMMET$12.49$9.7410+ In-Stock
123TB-2174A-00-00INSULATOR, SIDE COVER$28.99$23.77Usually ships in 7-10 business days
133TB-2174A-10-00INSULATOR, SIDE COVER$23.99$19.67Usually ships in 7-10 business days
141LN-W2810-01-00

(replaces part #
3TB-28100-00-00)

TOOL KIT (48Y-28100-00-00)$130.99$102.17Not Shipping
1546X-21376-00-00BAND, TOOL$15.49$12.70Usually ships in 7-10 business days
163UY-2179V-30-00PLATE, EPA 1 | UR NON-CA$26.99$22.13Usually ships in 7-10 business days
