1993 Yamaha YZ250 Front Master Cylinder OEM Parts Diagram

Submodel YZ250E1 - 1993

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

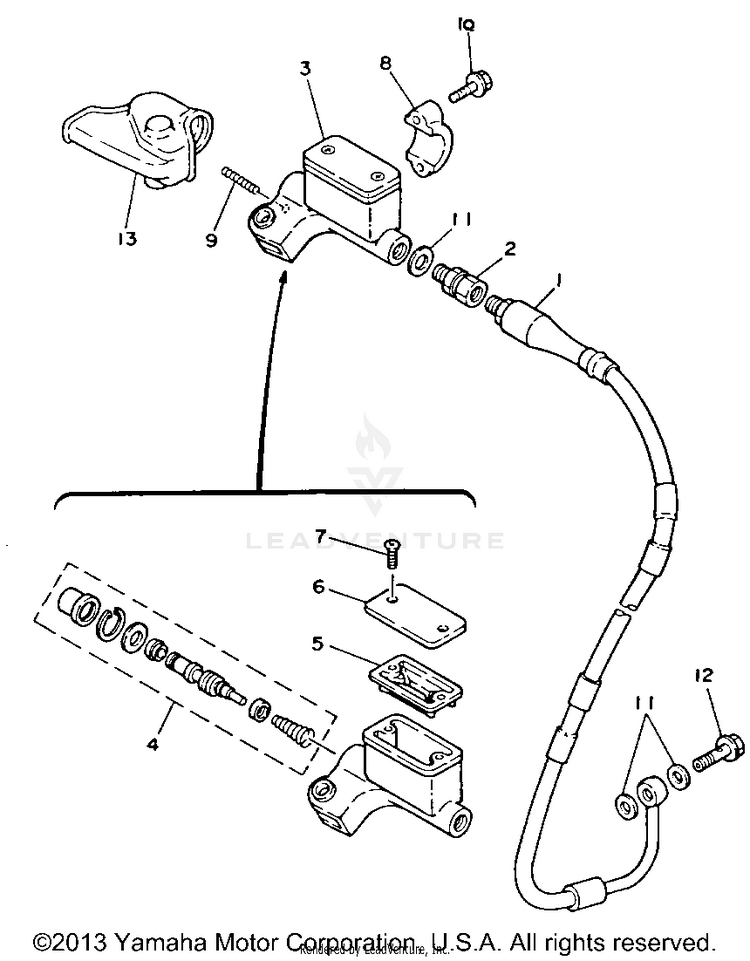

FRONT MASTER CYLINDER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14MX-25872-00-00

(replaces part #
4DA-25872-00-00)

HOSE, BRAKE 1 (4MX-25872-01-00)$232.99$181.73Not Shipping
23LC-25885-00-00JOINT$31.99$24.954 In-Stock
33SP-25870-01-00MASTER CYLINDER SUB ASSY$380.99$297.17Usually ships in 7-10 business days
43SP-W0041-00-00CYLINDER KIT, MASTER$63.99$49.912 In-Stock
AFTERMARKET ALTERNATIVE
$29.80$28.3110+ In-Stock
556A-25854-00-00DIAPHRAGM, RESERVOIR$42.99$33.534 In-Stock
62VN-25852-02-00

(replaces part #
2VN-25852-01-00)

CAP, RESERVOIR$17.99$14.03
798707-04012-00

(replaces part #
98706-04012-00)

SCREW, FLAT HEAD-$1.9410+ In-Stock
856A-25867-00-00BRACKET, MASTER CYLINDER$31.99$24.953 In-Stock
990501-061G2-00SPRING, COMPRESSION$3.60$3.104 In-Stock
1095027-06025-00

(replaces part #
95026-06025-00)

BOLT, FLANGE$4.16$3.5810+ In-Stock
1190201-10118-00WASHER, PLATE$3.80$3.2710+ In-Stock
1290401-10159-00

(replaces part #
90401-10034-00)

BOLT, UNION$12.49$9.7410+ In-Stock
1356A-26372-01-00COVER, HANDLE LEVER 1$26.99$21.053 In-Stock
