1994 Yamaha BADGER 80 Crankcase OEM Parts Diagram

Submodel BADGER - YFM80F - 1994

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

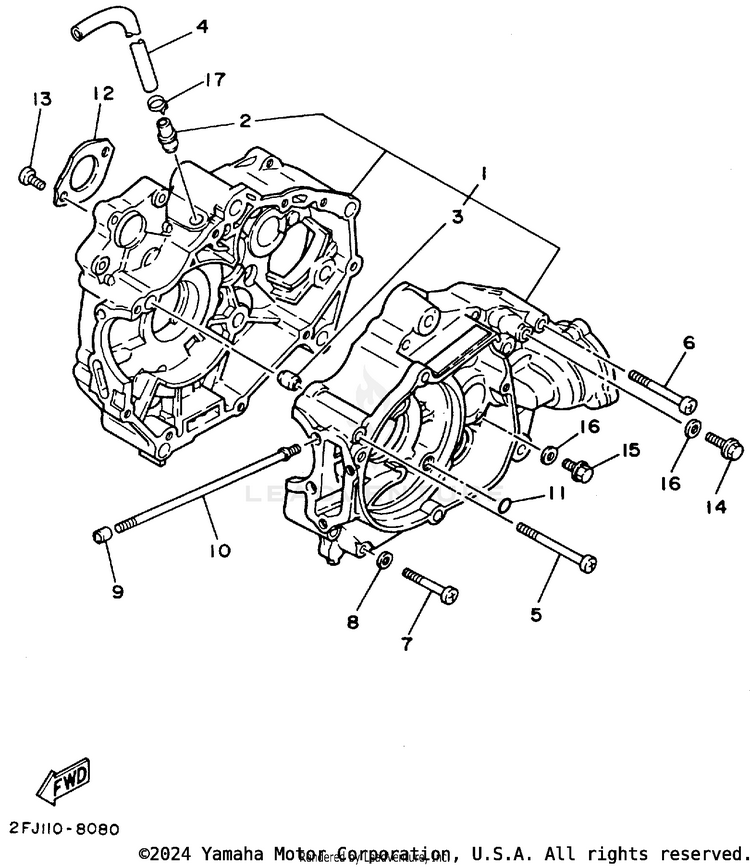

CRANKCASE

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12FJ-15100-01-00CRANKCASE ASSY$408.99$339.88Usually ships in 7-10 business days
259V-11167-00-00PIPE, BREATHER 2$11.99$9.83Usually ships in 7-10 business days
399530-12016-00

(replaces part #
99510-12016-00)

PIN, DOWEL$4.89$4.2110+ In-Stock
490445-121F6-00HOSE (L700)$12.99$10.65Usually ships in 7-10 business days
598580-06575-00SCREW, PAN HEAD$13.49$11.06Usually ships in 7-10 business days
698580-06560-00SCREW, PAN HEAD (92580-06560-00$10.49$8.184 In-Stock
798580-06545-00SCREW, PAN HEAD (92503-06045-00$6.49$5.4910+ In-Stock
890430-06014-00GASKET$8.99$7.0110+ In-Stock
991808-12024-00

(replaces part #
99510-08012-00)

PIN, DOWEL$4.55$4.106 In-Stock
1090116-06042-00

(replaces part #
90116-06399-00)

BOLT, STUD$5.49$4.2810+ In-Stock
1193210-07540-00O-RING$7.49$5.8410+ In-Stock
1222F-15383-01-00PLATE, BEARING COVER$2.75$2.48Usually ships in 7-10 business days
1398517-06012-00

(replaces part #
98511-06012-00)

SCREW,PAN$4.10$3.5310+ In-Stock
1495817-06025-00

(replaces part #
95811-06025-00)

BOLT, FLANGE$5.49$4.2810+ In-Stock
1595817-06016-00BOLT, FLANGE$1.95$1.6810+ In-Stock
1690430-06166-00GASKET$4.05$3.4810+ In-Stock
1790467-13133-00

(replaces part #
90467-13064-00)

CLIP$9.49$7.4010+ In-Stock
