1994 Yamaha BLASTER 200 Intake OEM Parts Diagram

Submodel BLASTER - YFS200F - 1994

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

INTAKE

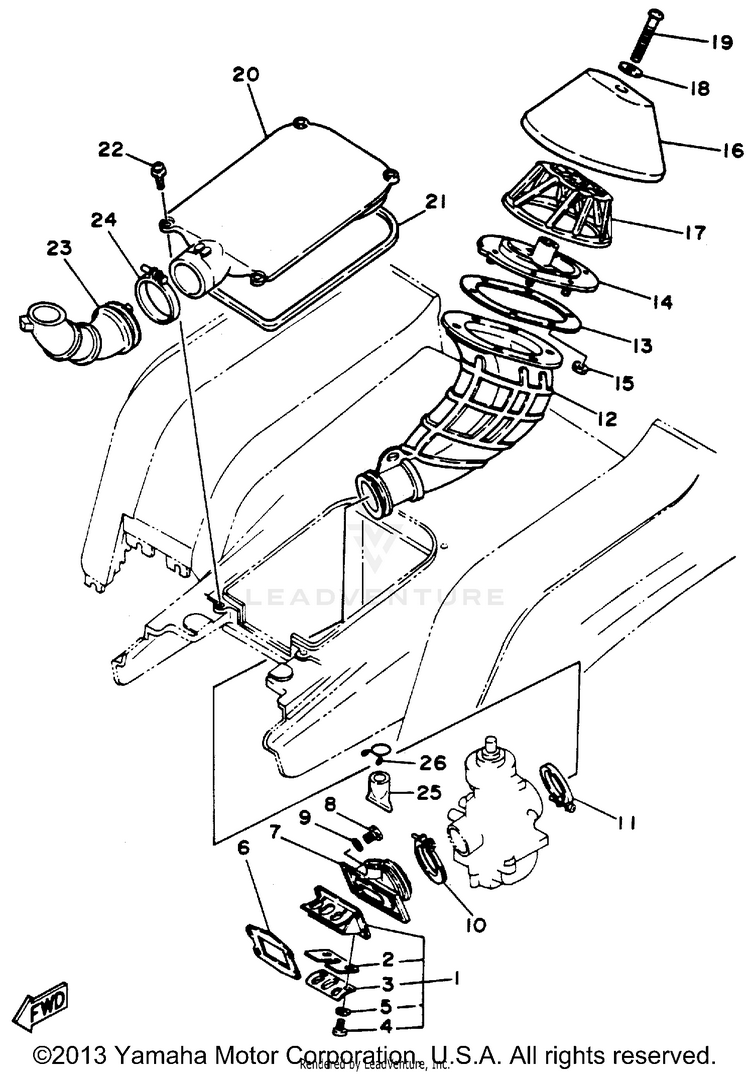

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12HF-13610-01-00REED VALVE ASSY$198.99$155.21Usually ships in 7-10 business days
22HF-13613-00-00REED, VALVE$25.99$20.276 In-Stock
358T-13616-01-00STOPPER, REED VALVE$10.99$8.574 In-Stock
498580-03008-00SCREW, PAN HEAD$3.85$3.3110+ In-Stock
592990-03100-00WASHER, SPRING$9.49$7.4010+ In-Stock
63JM-13621-00-00GASKET, VALVE SEAT$18.99$14.8110+ In-Stock
72XJ-13565-00-00JOINT, CARBURETOR$73.99$57.712 In-Stock
897017-06025-00

(replaces part #
97011-06025-00)

BOLT$4.55$3.9110+ In-Stock
992907-06600-00

(replaces part #
92906-06600-00)

WASHER, PLATE$1.00$0.9910+ In-Stock
1090450-44046-00HOSE CLAMP ASSY$18.49$14.4210+ In-Stock
1190460-49058-00CLAMP, HOSE$8.49$6.6710+ In-Stock
122XJ-14453-00-00JOINT, AIR CLEANER 1$201.99$157.551 In-Stock
132XJ-14477-00-00PLATE$46.99$36.652 In-Stock
142XJ-14459-00-00HOLDER, GUIDE$33.99$26.51Not Shipping
1595617-05100-00

(replaces part #
95601-05100-00)

NUT, U$10.49$8.1810+ In-Stock
162XJ-14451-01-00

(replaces part #
2XJ-14451-00-00)

ELEMENT, AIR CLEANER$35.99$28.077 In-Stock
AFTERMARKET ALTERNATIVE
$12.95$12.8810+ In-Stock
172XJ-14458-00-00GUIDE$34.99$27.2910+ In-Stock
1890209-06096-00WASHER$10.49$8.1810+ In-Stock
1998580-06560-00SCREW, PAN HEAD (92580-06560-00$10.49$8.184 In-Stock
202XJ-14412-01-00CAP, CLEANER CASE 1$33.99$27.772 In-Stock
211VJ-14462-00-00SEAL$19.99$15.5910+ In-Stock
2290159-06085-00SCREW, WITH WASHER$9.49$7.4010+ In-Stock
232XJ-14437-00-00DUCT$37.99$29.632 In-Stock
2490450-56001-00

(replaces part #
90460-56105-00)

HOSE CLAMP ASSY$19.49$15.2010+ In-Stock
2559V-14457-00-00SEAL$7.49$5.8410+ In-Stock
2690467-22080-00CLIP$9.49$7.4010+ In-Stock
