1994 Yamaha BLASTER 200 Rear Arm OEM Parts Diagram

Submodel BLASTER - YFS200F - 1994

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

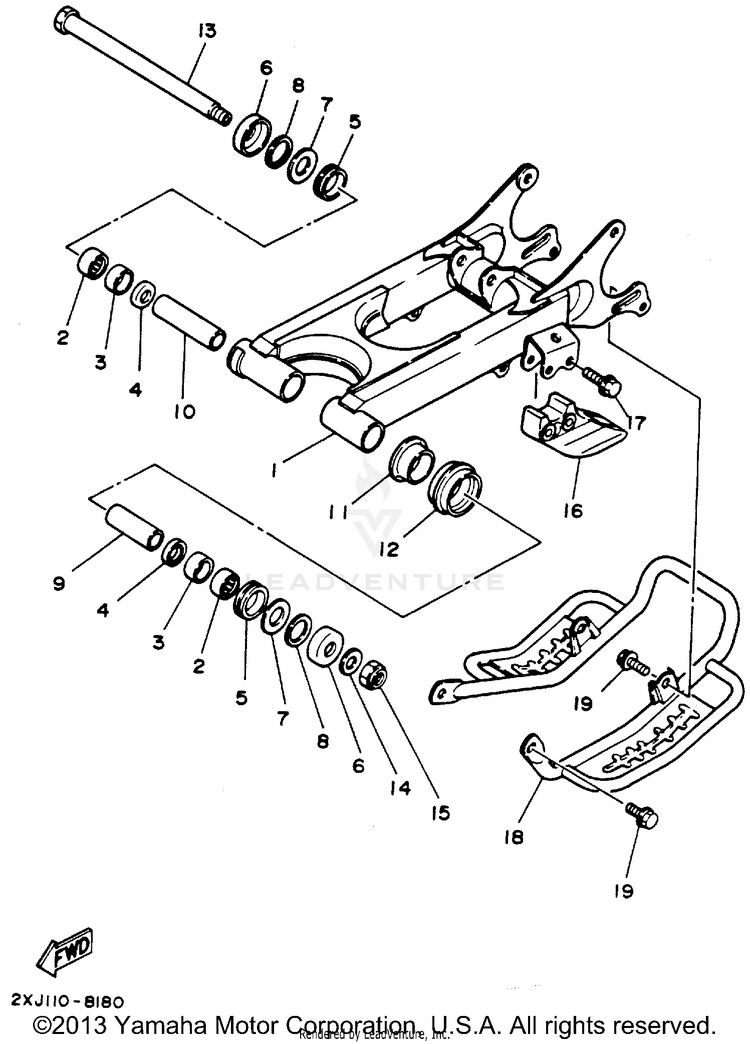

REAR ARM

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15VM-22110-10-00

(replaces part #
2XJ-22110-00-35)

REAR ARM COMP. | SILVER$365.99$285.47Usually ships in 7-10 business days
293317-32231-00BEARING$48.99$38.2110+ In-Stock
390380-22111-00BUSH, SOLID$21.99$17.1510+ In-Stock
493106-22019-00OIL SEAL (DC 22-28-8)$12.49$9.7410+ In-Stock
593108-35004-00OIL SEAL (35-41-8)$17.49$13.6410+ In-Stock
62K6-22128-01-00COVER, THRUST 1$32.99$25.734 In-Stock
790201-247L2-00

(replaces part #
90201-244A9-00)

WASHER, PLATE$11.49$8.9610+ In-Stock
8240-22127-00-00SHIM (0.3T) | UN$7.49$5.8410+ In-Stock
92XJ-22123-00-00BUSH 1$49.99$40.99Not Shipping
102XJ-22124-00-00BUSH 2$33.99$26.5110+ In-Stock
112GU-22155-00-00PIPE$23.99$18.715 In-Stock
122GU-22151-10-00SEAL, GUARD$18.99$14.818 In-Stock
132JN-22141-00-00SHAFT, PIVOT$71.99$56.157 In-Stock
1490201-15797-00

(replaces part #
90201-14218-00)

WASHER, PLATE$10.49$8.1810+ In-Stock
1590185-14070-00NUT, SELF-LOCKING$14.49$11.3010+ In-Stock
1638W-22199-00-00SUPPORT, CHAIN$43.99$34.316 In-Stock
1795817-08040-00

(replaces part #
95811-08040-00)

BOLT, FLANGE$7.49$5.841 In-Stock
182XJ-2219X-00-00COVER$154.01$120.13Not Shipping
1995817-08012-00

(replaces part #
95811-08012-00)

BOLT, FLANGE$5.49$4.2810+ In-Stock
