1994 Yamaha RT100 Crankcase OEM Parts Diagram

Submodel RT100F - 1994

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CRANKCASE

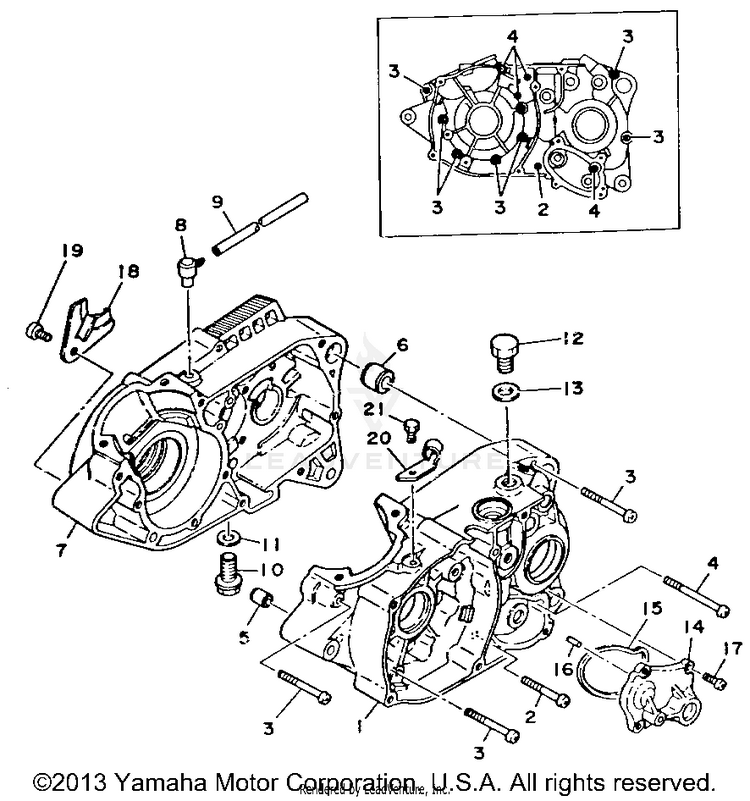

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11T9-15111-00-00CRANKCASE 1$360.99$281.57Usually ships in 7-10 business days
298580-06040-00SCREW, PAN HEAD$9.49$7.408 In-Stock
398580-06550-00SCREW, PAN HEAD$9.49$7.409 In-Stock
498580-06560-00

(replaces part #
92580-06560-00)

SCREW, PAN HEAD (92580-06560-00$10.49$8.184 In-Stock
599530-10114-00

(replaces part #
99530-10014-00)

PIN, DOWEL$2.65$2.4810+ In-Stock
699530-14016-00PIN, DOWEL A$3.80$3.2710+ In-Stock
71T9-15121-01-00CRANKCASE 2$245.99$191.87Usually ships in 7-10 business days
8583-15371-00-00BREATHER$7.49$5.8410+ In-Stock
990445-072G8-00

(replaces part #
90445-07340-00)

HOSE (L310)$32.99$25.734 In-Stock
1090340-12005-00PLUG, STRAIGHT SCREW$9.49$7.406 In-Stock
1190430-12207-00GASKET$8.49$6.6210+ In-Stock
1290340-12004-00PLUG, STRAIGHT SCREW$4.90$4.41Not Shipping
1390201-12790-00

(replaces part #
37R-82543-00-00)

WASHER, PLATE$10.49$8.185 In-Stock
14437-15419-01-00COVER, SHIFTER 1$89.99$70.19Usually ships in 7-10 business days
15401-15449-00-00RING, RUBBER$32.99$25.732 In-Stock
1693603-12007-00PIN, DOWEL$2.75$2.362 In-Stock
1798507-06014-00

(replaces part #
98503-06014-00)

SCREW, PAN HEAD$9.49$7.4010+ In-Stock
18304-15128-00-00HOLDER$7.49$6.74Usually ships in 7-10 business days
1998507-08010-00

(replaces part #
98511-08010-00)

SCREW, PAN HEAD$9.49$7.406 In-Stock
20401-15441-02-00HOLDER, CLUTCH CABLE$14.49$11.88Not Shipping
2197013-06012-00BOLT$6.49$5.0610+ In-Stock
