1994 Yamaha RT100 Steering OEM Parts Diagram

Submodel RT100F - 1994

Shop Aftermarket Parts

STEERING

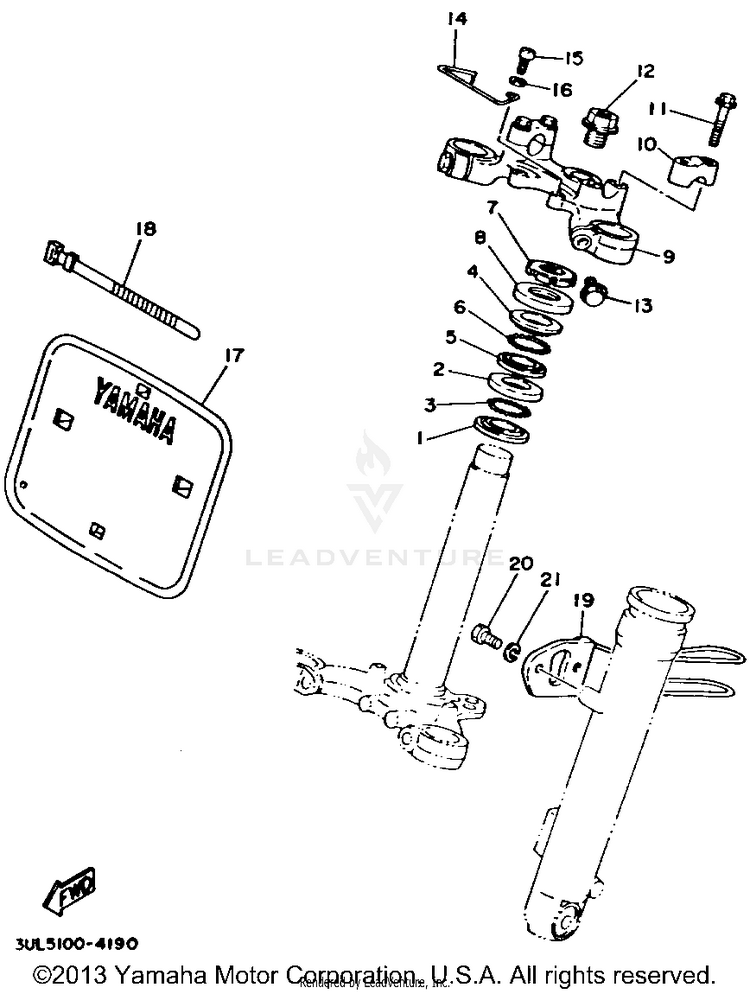

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1B6E-23411-00-00

(replaces part #
156-23411-00-00)

. .RACE, BALL 1$9.49$7.406 In-Stock
2B6E-23412-00-00

(replaces part #
156-23412-00-00)

RACE, BALL 2$14.49$11.3010+ In-Stock
393501-04011-00BALL$9.49$7.4010+ In-Stock
4BP2-23411-00-00

(replaces part #
22F-23411-01-00)

RACE, BALL 1$12.49$9.747 In-Stock
5BP2-23412-00-00

(replaces part #
22F-23412-01-00)

RACE, BALL 2$8.49$6.626 In-Stock
693503-16003-00

(replaces part #
93503-16010-00)

BALL$2.90$2.4910+ In-Stock
790179-25004-00

(replaces part #
90179-25033-00)

NUT$26.99$21.055 In-Stock
8122-23416-00-00COVER, BALL RACE 2$8.49$6.625 In-Stock
9354-23435-00-35

(replaces part #
354-23435-00-T9)

CROWN, HANDLE | COMPETITION SILVER$93.99$73.31Usually ships in 7-10 business days
101E6-23441-10-35HOLDER, HANDLE UPPER | SILVER$25.99$20.274 In-Stock
1195817-08035-00

(replaces part #
95811-08035-00)

BOLT, FLANGE$10.49$8.1810+ In-Stock
1290105-14220-00

(replaces part #
90105-14136-00)

BOLT, FLANGE$5.49$4.285 In-Stock
1395817-08030-00

(replaces part #
95811-08030-00)

BOLT, FLANGE$9.49$7.408 In-Stock
143UL-2331E-00-00GUIDE, CABLE$24.99$20.49Usually ships in 7-10 business days
1598517-06012-00

(replaces part #
98516-06012-00)

SCREW,PAN$4.10$3.5310+ In-Stock
1692907-06100-00

(replaces part #
92906-06100-00)

WASHER, SPRING$1.30$1.1210+ In-Stock
173UL-23485-40-00PLATE, NUMBER$22.99$18.85Not Shipping
18437-83936-11-00BAND, SWITCH CORD$5.00$4.3010+ In-Stock
191T9-23318-00-00HOLDER, CABLE 1$34.99$28.69Usually ships in 7-10 business days
2097013-06012-00BOLT$6.49$5.0610+ In-Stock
2192995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
