CYLINDER HEAD

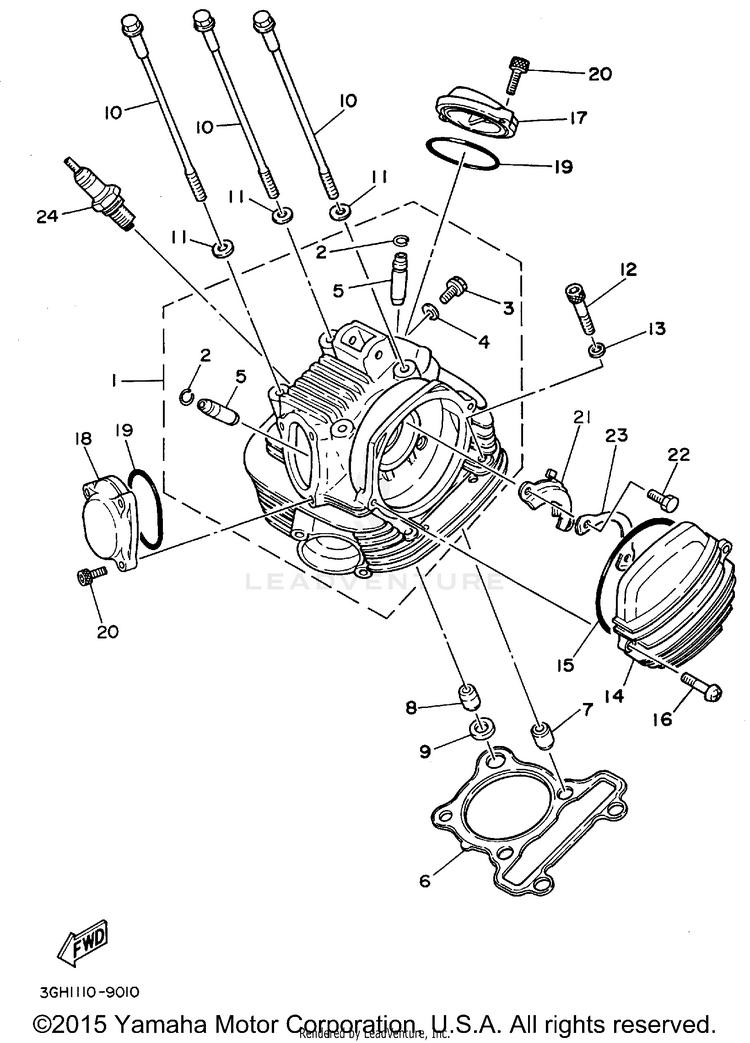

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14BD-11101-03-00

(replaces part #
4BD-11102-00-00)

CYLINDER HEAD ASSY$444.99$347.09Usually ships in 7-10 business days
293440-10085-00CIRCLIP$9.49$7.4010+ In-Stock
390153-06029-00

(replaces part #
90153-06045-00)

SCREW, HEXAGON$9.49$7.40
490430-06014-00GASKET$8.99$7.0110+ In-Stock
55H0-11133-11-00

(replaces part #
5H0-11133-10-00)

GUIDE, INTAKE VALVE$74.99$58.492 In-Stock
63GH-11181-00-00GASKET, CYLINDER HEAD 1$60.99$47.573 In-Stock
799530-14016-00PIN, DOWEL A$3.80$3.2710+ In-Stock
893612-16254-00

(replaces part #
91810-08016-00)

PIN, DOWEL$6.49$5.0610+ In-Stock
990430-12186-00GASKET$16.49$12.866 In-Stock
1090105-08160-00

(replaces part #
90105-08195-00)

BOLT, FLANGE$8.49$6.6210+ In-Stock
1190201-080L7-00WASHER, PLATE$4.05$3.4810+ In-Stock
1291317-08045-00

(replaces part #
91316-08045-00)

BOLT, HEX. SOCKET HEAD$9.49$7.405 In-Stock
1390201-086M0-00

(replaces part #
90201-087K2-00)

WASHER, PLATE$9.49$7.4010+ In-Stock
144BD-11185-00-00COVER, CYLINDER HEAD SIDE 1$36.99$30.33Usually ships in 7-10 business days
1593211-05471-00O-RING$16.49$12.8610+ In-Stock
1698580-06020-00SCREW, PAN HEAD$9.49$7.405 In-Stock
173GC-11186-00-00COVER, CYLINDER HEAD SIDE 2$24.99$20.49Usually ships in 7-10 business days
183GC-11187-00-00COVER, CYLINDER HEAD SIDE 3$23.99$19.67Usually ships in 7-10 business days
1993210-57634-00O-RING$15.49$12.0810+ In-Stock
2091317-06018-00

(replaces part #
91316-06018-00)

BOLT, HEX. SOCKET HEAD$9.49$7.4010+ In-Stock
215H0-1111F-00-00PLATE$26.99$22.13Usually ships in 7-10 business days
2297013-06012-00BOLT$6.49$5.0610+ In-Stock
2390215-06184-00WASHER, LOCK$11.49$8.968 In-Stock
24D7E-A0000-00-00

(replaces part #
NGK-D7EA0-00-00)

D7EA NGK SPLUG 10P | UR$4.95$4.267 In-Stock
