1994 Yamaha TIMBERWOLF 250 4X4 Exhaust OEM Parts Diagram

Submodel TIMBERWOLF 4WD - YFB250FWF - 1994

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

EXHAUST

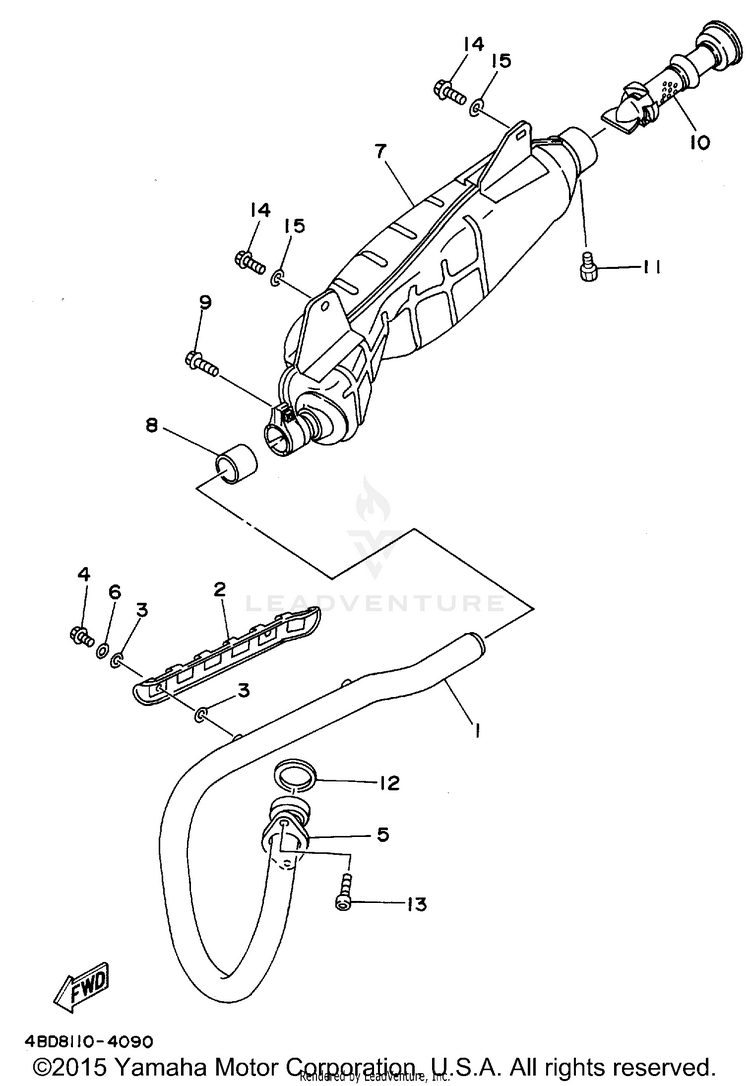

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14KD-14611-00-00PIPE, EXHAUST 1$221.99$173.15Usually ships in 7-10 business days
23Y1-14628-00-00PROTECTOR, EXHAUST PIPE$44.99$36.89Not Shipping
34BD-14766-00-00WASHER, PROTECTOR$5.99$4.6710+ In-Stock
495027-06008-00BOLT, FLANGE$7.99$6.234 In-Stock
55H0-14612-01-00

(replaces part #
5H0-14612-00-00)

NUT, RING$17.99$14.033 In-Stock
690206-06090-00WASHER, WAVE$9.49$7.4010+ In-Stock
74BD-14711-01-00

(replaces part #
4BD-14711-00-00)

MUFFLER 1$447.99$349.43Usually ships in 7-10 business days
83YF-14714-00-00GASKET, MUFFLER$39.99$31.1910+ In-Stock
999999-01790-00BOLT, FLANGE (95026-08025-00)$8.49$7.64Usually ships in 7-10 business days
1021V-14752-00-00PIPE, OUTLET$132.99$103.731 In-Stock
1197017-06008-00

(replaces part #
97011-06008-00)

BOLT, HEX$3.85$3.313 In-Stock
124BE-14613-00-00GASKET, EXHAUST PIPE$10.99$8.5710+ In-Stock
1391317-06020-00

(replaces part #
91316-06020-00)

BOLT, HEX. SOCKET HEAD$2.75$2.3610+ In-Stock
1495817-08020-00

(replaces part #
95821-08020-00)

BOLT, FLANGE$10.49$8.181 In-Stock
1590201-08326-00WASHER, PLATE$9.49$7.4010+ In-Stock
