1996 Yamaha RT100 Electrical 1 OEM Parts Diagram

Submodel RT100H - 1996

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

ELECTRICAL 1

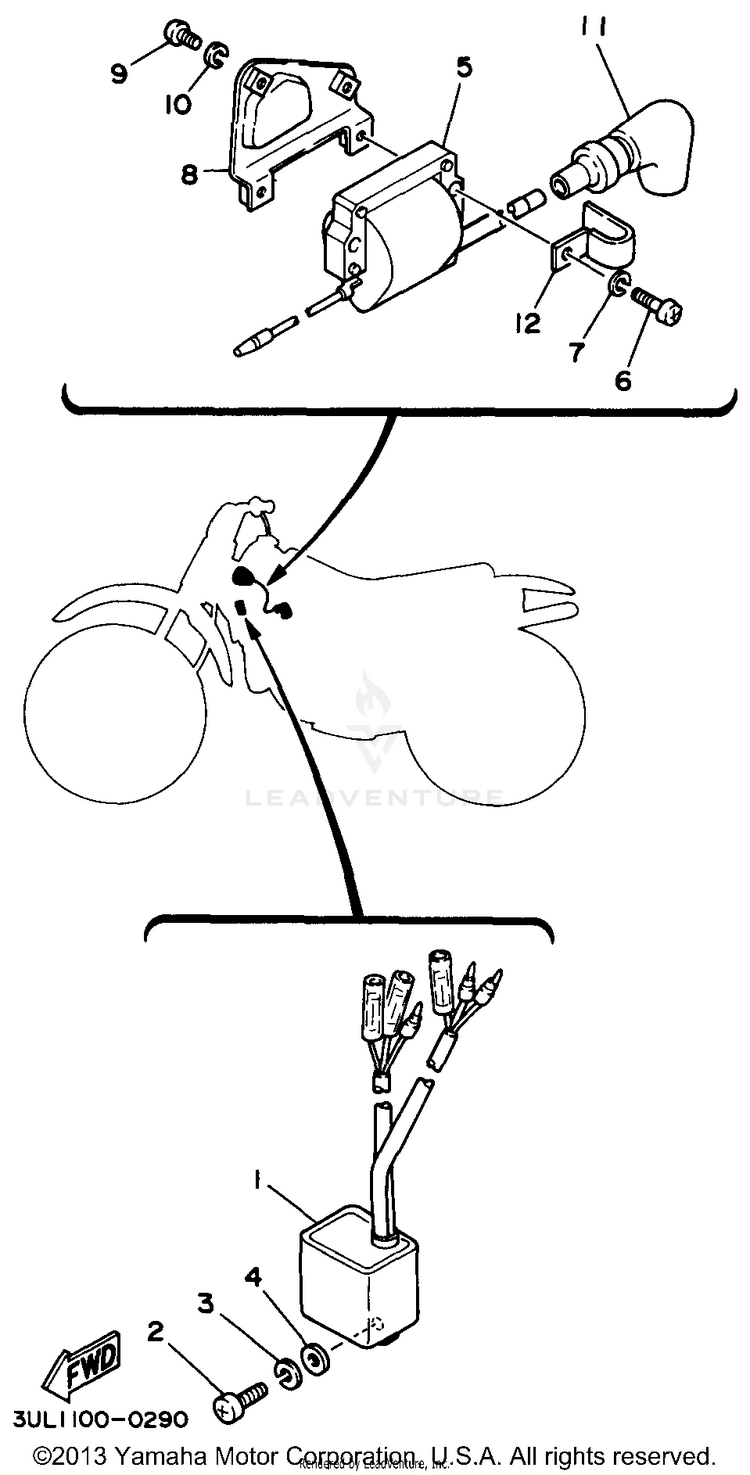

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13T0-85540-20-00C.D.I. UNIT ASSEMBLY$222.87$173.84Not Shipping
298507-06016-00SCREW,PAN HEAD$3.48$2.9910+ In-Stock
392907-06100-00WASHER, SPRING$1.30$1.1210+ In-Stock
492907-06600-00WASHER, PLATE$1.00$0.9910+ In-Stock
5355-82310-40-00

(replaces part #
5G4-82310-40-00)

IGNITION COIL ASSEMBLY$211.99$165.35Usually ships in 7-10 business days
698517-06025-00SCREW, PAN HEAD$4.05$3.4810+ In-Stock
792907-06100-00WASHER, SPRING$1.30$1.1210+ In-Stock
8336-82316-01-00BRACKET, IGNITION COIL$21.99$18.03Usually ships in 7-10 business days
998517-06012-00

(replaces part #
98507-06012-00)

SCREW,PAN$4.10$3.5310+ In-Stock
1092907-06100-00WASHER, SPRING$1.30$1.1210+ In-Stock
118DG-82370-00-00

(replaces part #
81E-82370-20-00)

PLUG CAP ASSY | WITH NOISE SUPPRESSOR$53.99$42.1110+ In-Stock
1290462-05005-00CLAMP$10.49$8.183 In-Stock
