1996 Yamaha RT100 Side Cover OEM Parts Diagram

Submodel RT100H - 1996

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SIDE COVER

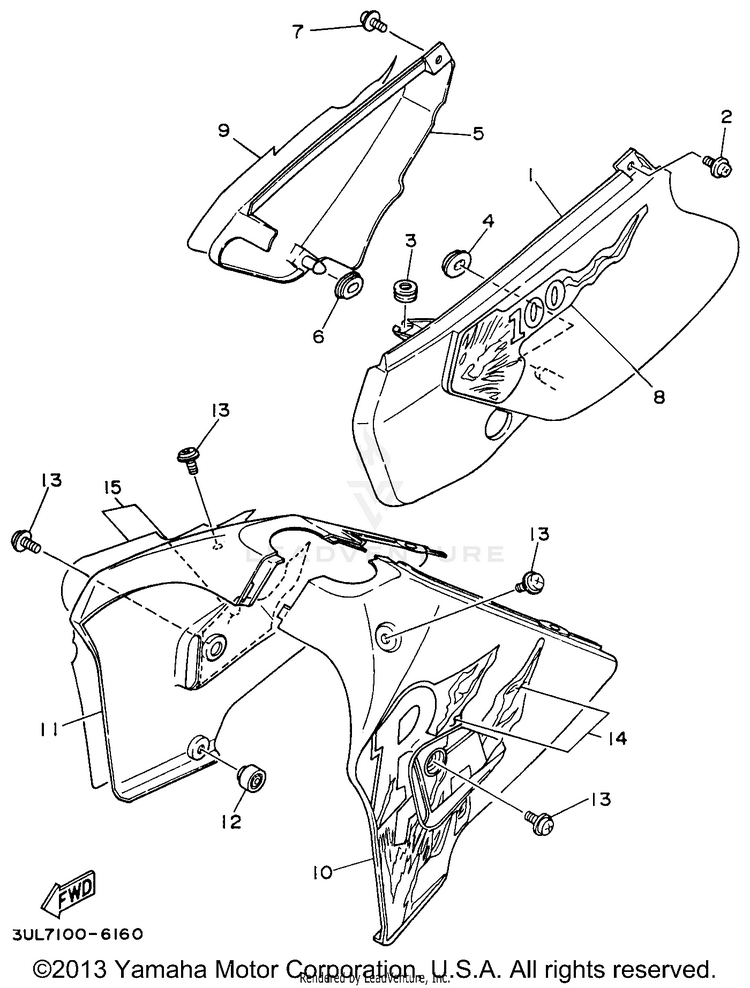

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13UL-21711-10-98COVER, SIDE 1 | LOW GLOSS BLACK (098)$70.99$55.37Not Shipping
290159-06059-00SCREW, WITH WASHER$11.49$8.9610+ In-Stock
390480-12325-00GROMMET$9.49$8.544 In-Stock
490480-01401-00GROMMET (41Y)$9.49$7.4010+ In-Stock
53UL-21721-10-00COVER, SIDE 2$74.99$58.49Not Shipping
690480-01401-00GROMMET (41Y)$9.49$7.4010+ In-Stock
790159-06059-00SCREW, WITH WASHER$11.49$8.9610+ In-Stock
83UL-2173E-60-00GRAPHIC 1$60.99$47.57Usually ships in 7-10 business days
93UL-2173F-60-00GRAPHIC 2$73.99$57.71Usually ships in 7-10 business days
103UL-2137W-30-00SCOOP, AIR 1$60.99$47.57Usually ships in 7-10 business days
113UL-2137X-30-00SCOOP, AIR 2$58.99$46.01Not Shipping
123JD-24181-00-00DAMPER, LOCATING 1$4.50$4.05Not Shipping
1390159-06160-00SCREW, WITH WASHER$9.49$7.406 In-Stock
143UL-2173L-30-00GRAPHIC SET 1$88.99$69.41Usually ships in 7-10 business days
153UL-2174L-30-00GRAPHIC SET 2$68.99$53.81Usually ships in 7-10 business days
