1996 Yamaha TW200 Generator OEM Parts Diagram

Submodel TW200HC - 1996

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

GENERATOR

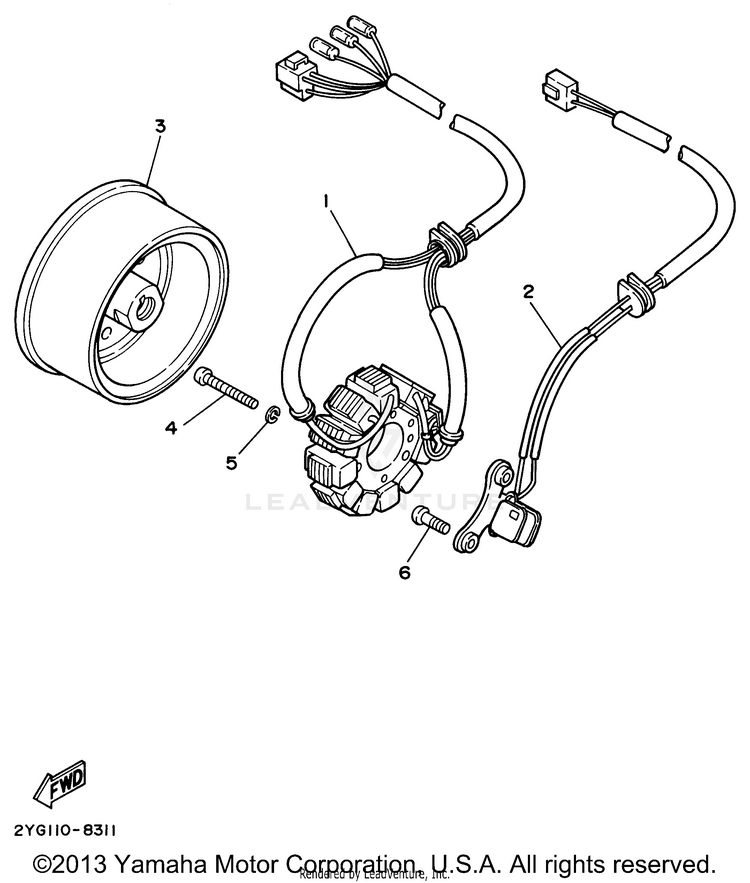

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12YG-81410-M0-00STATOR ASSEMBLY$349.99$291.02Usually ships in 7-10 business days
22YG-85580-M0-00COIL, PULSER$154.99$120.89Not Shipping
32YG-85550-02-00

(replaces part #
2YG-85550-01-00)

ROTOR ASSY$502.99$392.33Usually ships in 7-10 business days
498517-05030-00

(replaces part #
98507-05030-00)

SCREW, PAN HEAD$11.49$8.962 In-Stock
592907-05100-00WASHER, SPRING$9.49$7.706 In-Stock
698517-06020-00

(replaces part #
98507-06020-00)

SCREW,PAN HEAD$2.35$2.0210+ In-Stock
