1996 Yamaha TW200 Steering OEM Parts Diagram

Submodel TW200HC - 1996

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STEERING

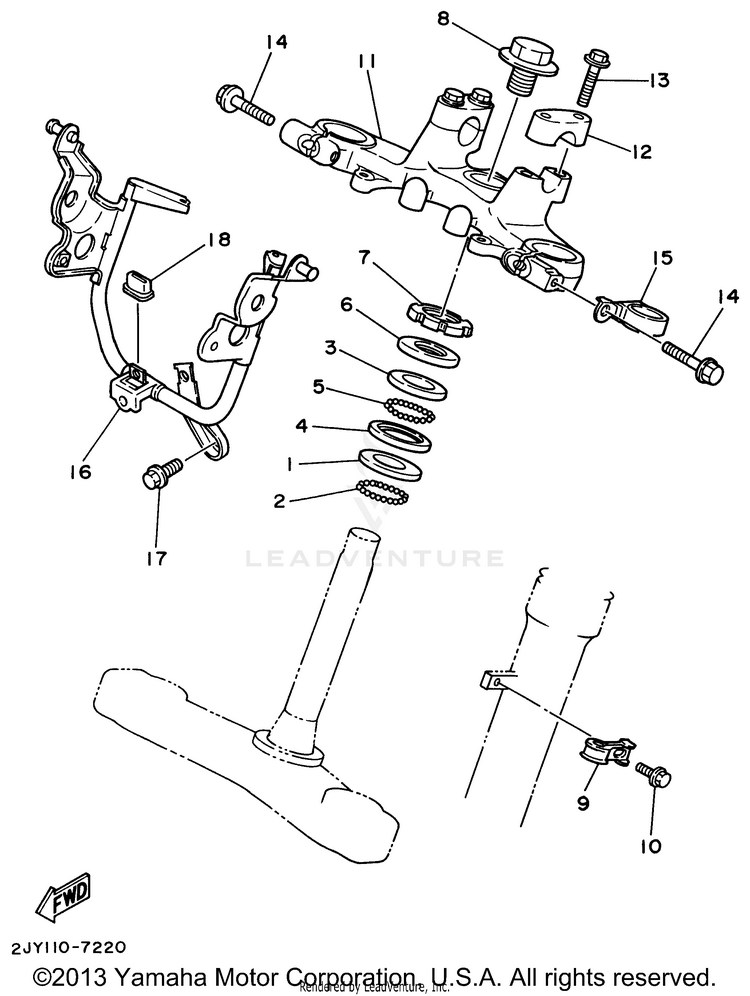

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1B6E-23412-00-00

(replaces part #
156-23412-00-00)

RACE, BALL 2$14.49$11.3010+ In-Stock
293501-04011-00BALL$9.49$7.4010+ In-Stock
3BP2-23411-00-00

(replaces part #
22F-23411-01-00)

RACE, BALL 1$12.49$9.747 In-Stock
4BP2-23412-00-00

(replaces part #
22F-23412-01-00)

RACE, BALL 2$8.49$6.626 In-Stock
593503-16003-00

(replaces part #
93503-16010-00)

BALL$2.90$2.4910+ In-Stock
6122-23416-00-00COVER, BALL RACE 2$8.49$6.625 In-Stock
790179-25004-00

(replaces part #
90179-25033-00)

NUT$26.99$21.055 In-Stock
890105-14102-00BOLT, FLANGE$6.49$5.063 In-Stock
93Y1-23319-00-00HOLDER, CABLE 2$5.49$4.282 In-Stock
1095817-06012-00BOLT, FLANGE$1.95$1.7710+ In-Stock
112JX-23435-10-35

(replaces part #
2JX-23435-00-35)

CROWN, HANDLE | SILVER (035)$146.99$114.65Usually ships in 7-10 business days
121E6-23441-10-35HOLDER, HANDLE UPPER | SILVER (035)$25.99$20.274 In-Stock
1395814-08035-00

(replaces part #
95824-08035-00)

BOLT, FLANGE$9.49$7.405 In-Stock
1495027-08050-00BOLT, FLANGE$1.40$1.266 In-Stock
153R1-23317-00-00HOLDER, CABLE$26.99$21.05Not Shipping
162JX-23174-00-00STAY, HEADLIGHT$118.99$92.81Not Shipping
1795817-06012-00BOLT, FLANGE$1.95$1.7710+ In-Stock
1830X-23445-00-00DAMPER$10.99$8.574 In-Stock
