1996 Yamaha Virago XV1100 Front Master Cylinder OEM Parts Diagram

Submodel VIRAGO 1100 - XV1100HC - 1996

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRONT MASTER CYLINDER

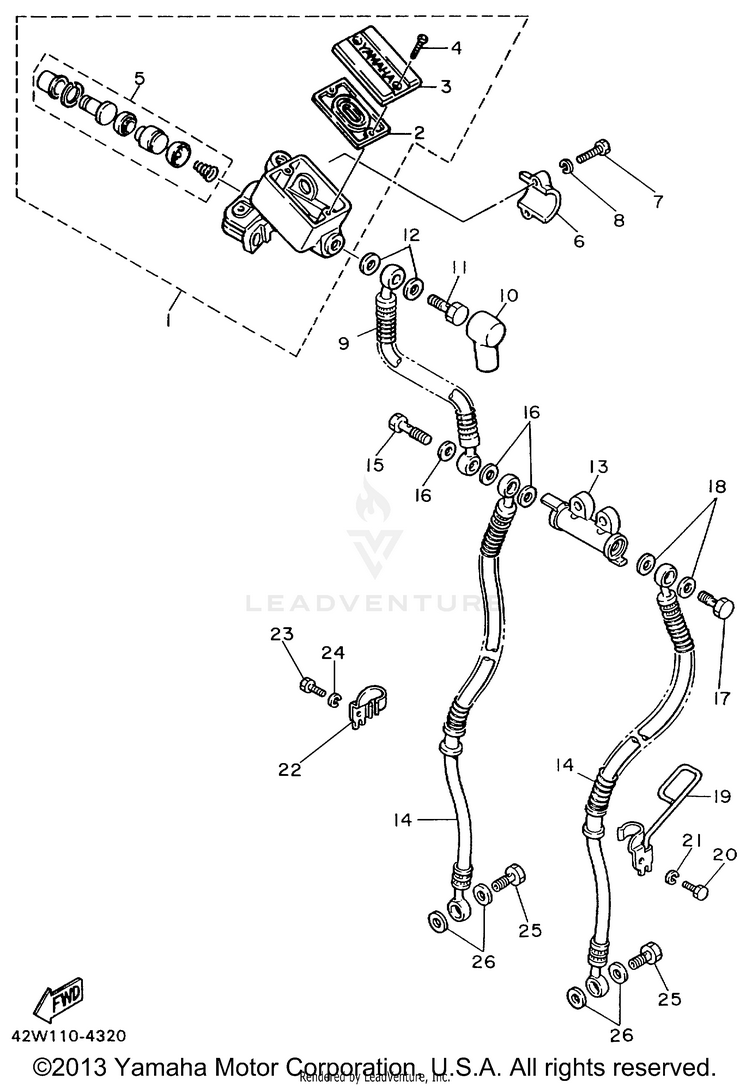

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13SD-25870-20-00

(replaces part #
22R-25850-02-00)

MSTR. CYLINDER. SUB ASSEMBLYSUB$527.99$411.83Usually ships in 7-10 business days
24HM-25854-00-00DIAPHRAGM, RESERVOIR$38.99$31.97Usually ships in 7-10 business days
33GM-25852-02-00

(replaces part #
3GM-25852-01-00)

CAP, RESERVOIR$62.99$49.13Usually ships in 7-10 business days
498707-04012-00SCREW, FLAT HEAD-$1.9410+ In-Stock
54K0-W0041-50-00CYLINDER KIT, MASTER$99.99$77.992 In-Stock
AFTERMARKET ALTERNATIVE
$29.55$28.076 In-Stock
64L0-25867-00-00BRACKET, MASTER CYLINDER$35.99$29.51Usually ships in 7-10 business days
797017-06025-00BOLT$4.55$3.9110+ In-Stock
892907-06600-00WASHER, PLATE$1.00$0.9910+ In-Stock
942H-25872-02-00HOSE, BRAKE 1$129.99$101.39Usually ships in 7-10 business days
104L0-25862-02-00

(replaces part #
4L0-25862-00-00)

BOOT, MASTER CYLINDER-$4.983 In-Stock
1190401-10159-00BOLT, UNION$12.49$9.7410+ In-Stock
1290201-10118-00WASHER, PLATE$3.80$3.2710+ In-Stock
1342H-25885-01-00JOINT$82.99$64.73Usually ships in 7-10 business days
1442H-25873-02-00HOSE, BRAKE 2$129.99$101.39Usually ships in 7-10 business days
1590401-10038-00

(replaces part #
90401-10160-00)

BOLT, UNION$13.49$11.062 In-Stock
1690201-10118-00WASHER, PLATE$3.80$3.2710+ In-Stock
1790401-10159-00BOLT, UNION$12.49$9.7410+ In-Stock
1890201-10118-00WASHER, PLATE$3.80$3.2710+ In-Stock
1942X-25875-00-00HOLDER, BRAKE HOSE 1$29.99$24.59Usually ships in 7-10 business days
2097017-06010-00BOLT(3JP)$4.05$3.4810+ In-Stock
2192907-06100-00WASHER, SPRING$1.30$1.1210+ In-Stock
2242X-25876-00-00HOLDER, BRAKE HOSE 2$18.99$15.57Usually ships in 7-10 business days
2397017-06010-00BOLT(3JP)$4.05$3.4810+ In-Stock
2492907-06100-00WASHER, SPRING$1.30$1.1210+ In-Stock
2590401-10159-00BOLT, UNION$12.49$9.7410+ In-Stock
2690201-10118-00WASHER, PLATE$3.80$3.2710+ In-Stock
