1996 Yamaha Virago XV1100 Handle Switch Lever OEM Parts Diagram

Submodel VIRAGO 1100 - XV1100HC - 1996

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

HANDLE SWITCH LEVER

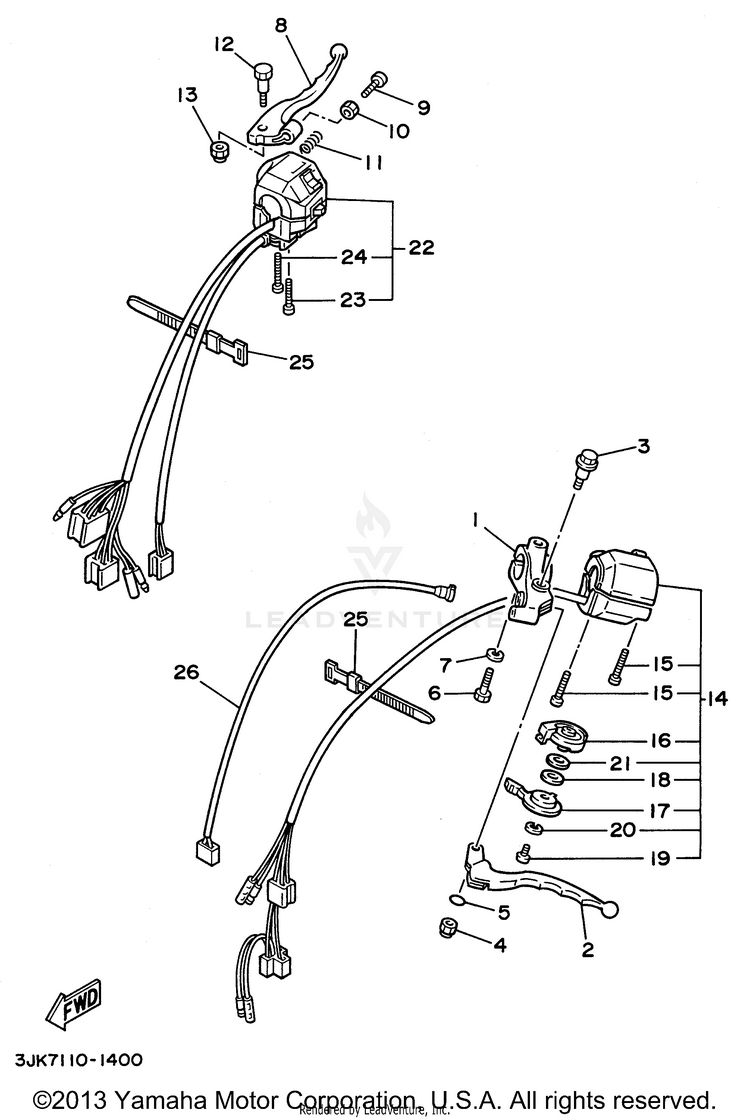

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
110M-82911-00-00HOLDER, LEVER 1$80.99$63.17Usually ships in 7-10 business days
22GV-83912-00-00LEVER 1$31.99$26.23Usually ships in 7-10 business days
390109-06799-00BOLT$5.49$4.288 In-Stock
495617-06100-00NUT, U$2.90$2.4910+ In-Stock
593210-11368-00O-RING$6.49$5.84Usually ships in 7-10 business days
697017-06025-00

(replaces part #
97007-06025-00)

BOLT$4.55$3.9110+ In-Stock
792907-06100-00WASHER, SPRING$1.30$1.1210+ In-Stock
82W1-83922-00-00LEVER 2$34.99$28.69Usually ships in 7-10 business days
990149-06131-00SCREW$9.49$7.4010+ In-Stock
1090170-06010-00NUT$9.49$7.404 In-Stock
1190501-10312-00SPRING, COMPRESSION$9.49$7.405 In-Stock
1290109-06577-00BOLT$6.49$5.0610+ In-Stock
1395617-06100-00NUT, U$2.90$2.4910+ In-Stock
142UJ-83973-00-00SWITCH, HANDLE 3$276.99$216.05Usually ships in 7-10 business days
1598507-05035-00SCREW, PAN HEAD$9.49$7.407 In-Stock
1610M-83942-00-00COVER, STARTER$39.99$32.79Usually ships in 7-10 business days
1710M-83941-00-00LEVER, STARTER$28.99$23.77Usually ships in 7-10 business days
1892990-06200-00WASHER, PLAIN-$1.2810+ In-Stock
1998517-06008-00

(replaces part #
98507-06008-00)

SCREW$9.49$7.404 In-Stock
2092995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
211AA-8397X-00-00SPACER$8.49$7.64Usually ships in 7-10 business days
223CF-83972-00-00SWITCH, HANDLE 4$320.27$249.81Not Shipping
2398507-05040-00SCREW, PAN HEAD$9.49$8.543 In-Stock
2498507-05045-00SCREW, PAN HEAD$10.49$8.183 In-Stock
25437-83936-01-00BAND, SWITCH CORD$8.49$6.6210+ In-Stock
263Y6-82917-00-00SWITCH$16.49$13.52Usually ships in 7-10 business days
