1997 Yamaha BANSHEE 350 Crankshaft Piston OEM Parts Diagram

Submodel BANSHEE - YFZ350J - 1997

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CRANKSHAFT PISTON

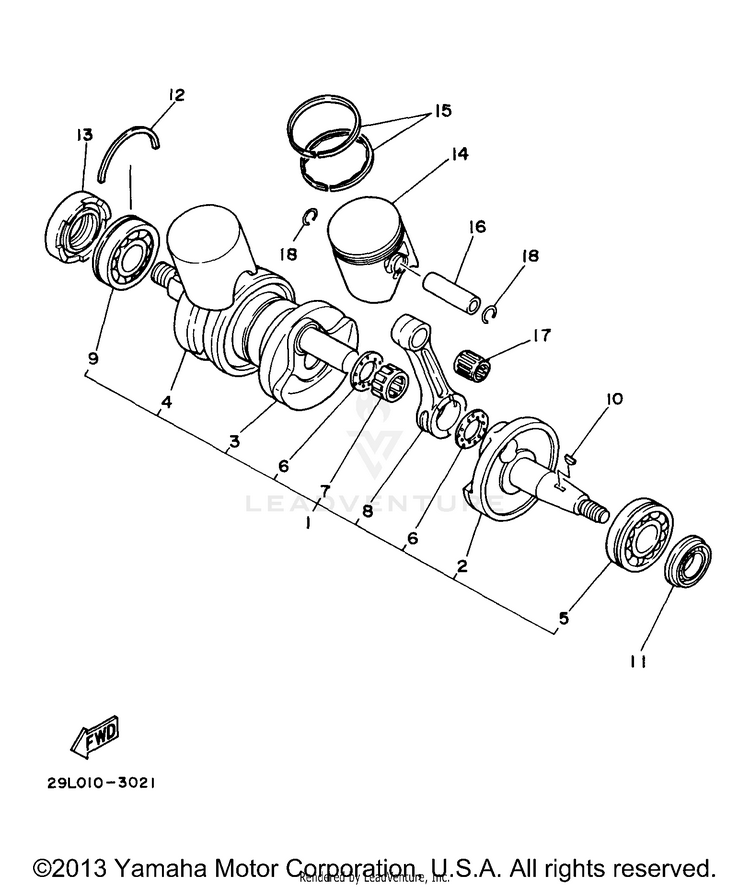

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-2GU-11636-00-00PISTON (0.50MM O/S) | AP$144.99$113.09Usually ships in 7-10 business days
-2GU-11635-00-00PISTON (0.25MM O/S) | AP$79.99$62.39Usually ships in 7-10 business days
-2GU-11610-21-00PISTON RING SET (0.50MM O/S) | AP$74.99$58.49Usually ships in 7-10 business days
-2GU-11610-11-00PISTON RING SET (0.25MM O/S) | AP$78.99$61.61Usually ships in 7-10 business days
129L-11400-30-00CRANKSHAFT ASSY$1,096.99$900.021 In-Stock
229L-11412-00-00CRANK 1$147.99$115.43Usually ships in 7-10 business days
329L-11401-09-00

(replaces part #
29L-11409-30-00)

CRANK SUB ASSY 1$445.99$370.07Usually ships in 7-10 business days
429L-11442-10-00CRANK 4$145.99$113.87Usually ships in 7-10 business days
593306-30571-00

(replaces part #
93306-30561-00)

BEARING$78.99$61.614 In-Stock
690209-22257-00WASHER$32.99$27.052 In-Stock
793310-523D2-00

(replaces part #
93310-522L4-00)

BEARING, CYLINDRICAL$84.99$66.29Usually ships in 7-10 business days
829L-11651-00-00ROD, CONNECTING$110.99$86.57Usually ships in 7-10 business days
993306-30549-00BEARING$71.99$56.155 In-Stock
1090280-05033-00KEY, WOODRUFF$11.49$8.96
1193103-25108-00OIL SEAL$22.99$17.938 In-Stock
12278-17424-01-00CIRCLIP 1$23.99$18.7110+ In-Stock
1393103-40077-00OIL SEAL$20.99$16.3710+ In-Stock
142GU-11631-00-94PISTON (STD)$152.99$119.332 In-Stock
152GU-11610-01-00PISTON RING SET (STD)$76.99$60.057 In-Stock
164L0-11633-00-00PIN, PISTON$34.99$27.296 In-Stock
1793310-316D6-00BEARING$43.99$34.3110+ In-Stock
1893450-17129-00CIRCLIP$4.45$3.8310+ In-Stock
