1997 Yamaha BANSHEE 350 Front Fender OEM Parts Diagram

Submodel BANSHEE - YFZ350J - 1997

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

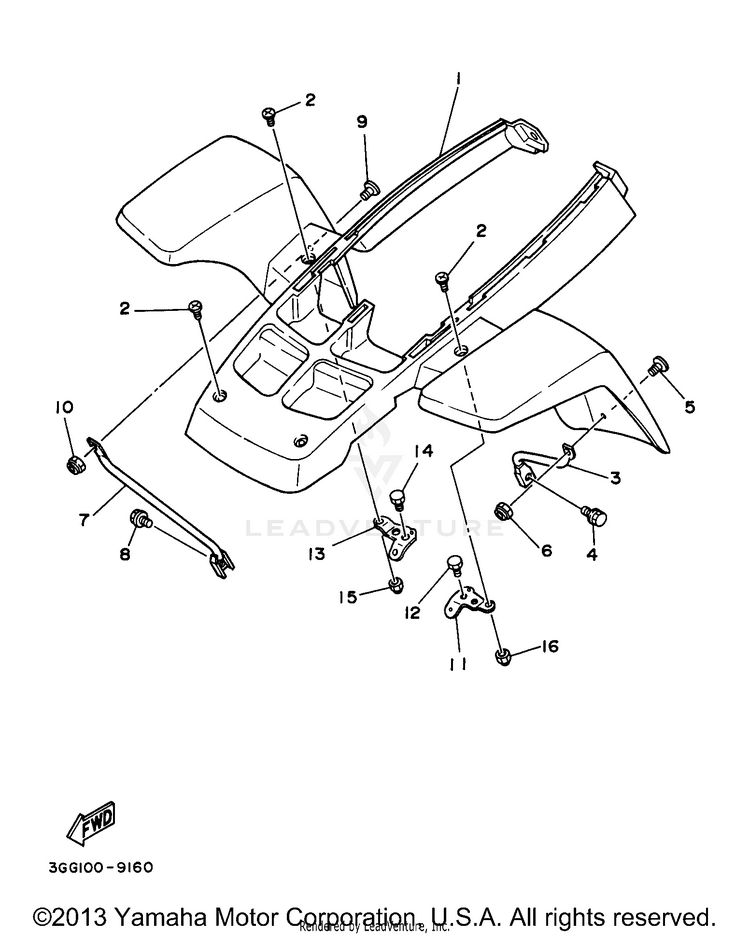

FRONT FENDER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-2GU-W2151-81-00

(replaces part #
2GU-W2151-80-00)

FRONT FENDER COMP. | Use for Color LIGHT REDDISH YELLOW SOLID 1 ( LRYS1 / 0386 )$428.99$389.615 In-Stock
12GU-W2151-71-00

(replaces part #
2GU-W2151-70-00)

FRONT FENDER COMP. | Use for Color YAMAHA BLACK ( YB / 0033 )$476.99$437.052 In-Stock
290149-06306-00SCREW$3.65$3.1410+ In-Stock
32GU-21513-00-00STAY, FENDER 1$55.99$43.677 In-Stock
495817-06010-00BOLT,FLANGE$5.49$4.2810+ In-Stock
590149-06306-00SCREW$3.65$3.1410+ In-Stock
695617-06100-00NUT, U$2.90$2.4910+ In-Stock
72GU-21514-00-00STAY, FENDER 2$55.99$43.673 In-Stock
895817-06010-00BOLT,FLANGE$5.49$4.2810+ In-Stock
990149-06306-00SCREW$3.65$3.1410+ In-Stock
1095617-06100-00NUT, U$2.90$2.4910+ In-Stock
112GU-21587-10-00

(replaces part #
2GU-21587-00-00)

STAY 1$19.99$15.592 In-Stock
1297017-08016-00

(replaces part #
97027-08016-00)

BOLT$9.49$7.408 In-Stock
132GU-21588-10-00

(replaces part #
2GU-21588-00-00)

STAY 2$19.99$15.593 In-Stock
1497017-08016-00

(replaces part #
97027-08016-00)

BOLT$9.49$7.408 In-Stock
1595617-06100-00NUT, U$2.90$2.4910+ In-Stock
1695617-06100-00NUT, U$2.90$2.4910+ In-Stock
