1998 Yamaha BANSHEE 350 Clutch OEM Parts Diagram

Submodel BANSHEE - YFZ350K - 1998

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CLUTCH

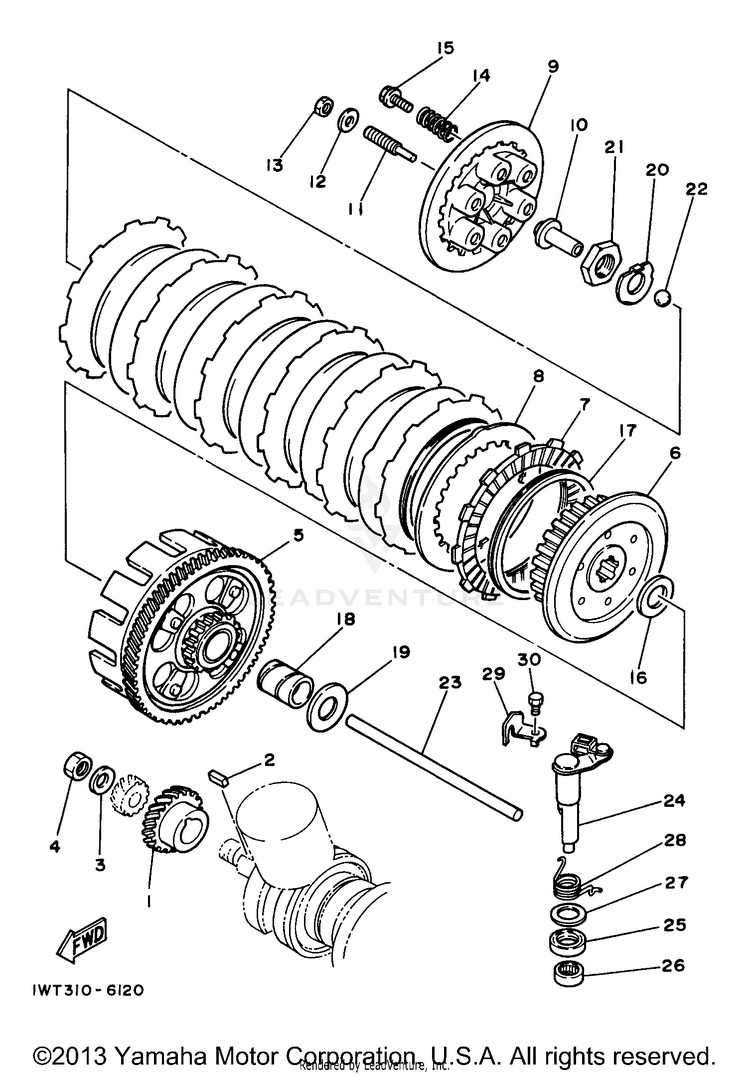

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14L0-16111-00-YX

(replaces part #
4L0-16111-00-00)

GEAR, PRIMARY DRIVE$109.99$85.795 In-Stock
290282-07023-00KEY, STRAIGHT$10.49$8.187 In-Stock
390208-16019-00WASHER, CONICAL SPRING$9.49$7.4010+ In-Stock
490170-16425-00

(replaces part #
90170-16182-00)

NUT$10.49$8.185 In-Stock
531K-16150-11-00

(replaces part #
31K-16150-10-00)

PRIMARY DRIVEN GEAR COMP.$376.99$294.058 In-Stock
61A0-16371-00-00BOSS, CLUTCH$86.99$67.8510+ In-Stock
75Y1-16331-01-00PLATE, FRICTION 2$32.99$25.7310+ In-Stock
8498-16325-10-00

(replaces part #
498-16325-00-00)

PLATE, CLUTCH 2$15.99$12.4710+ In-Stock
929L-16351-00-00PLATE, PRESSURE 1$50.99$39.777 In-Stock
1029L-16356-00-00ROD, PUSH 1$22.99$17.936 In-Stock
1190149-08143-00SCREW$19.49$15.208 In-Stock
1292907-08200-00WASHER$9.49$7.4010+ In-Stock
1395317-08700-00NUT$10.49$8.185 In-Stock
1490501-23138-00SPRING, COMPRESSION$6.49$5.0610+ In-Stock
1590159-06016-00SCREW, WITH WASHER$3.65$3.1410+ In-Stock
16360-16154-00-00PLATE, THRUST 1$23.99$18.716 In-Stock
17278-16367-00-00RING, CUSHION$26.99$21.0510+ In-Stock
18278-16181-01-00SPACER 1$46.99$36.654 In-Stock
19360-16154-00-00PLATE, THRUST 1$23.99$18.716 In-Stock
2090215-20223-00WASHER, LOCK$5.49$4.2810+ In-Stock
2190170-20320-00NUT$17.49$13.6410+ In-Stock
2293515-32029-00BALL$4.55$3.9110+ In-Stock
2329L-16357-00-00ROD, PUSH 2$22.99$17.935 In-Stock
2429L-16380-00-00PUSH LEVER ASSY$76.99$60.053 In-Stock
2593102-17004-00OIL SEAL$12.49$9.748 In-Stock
2693315-11720-00BEARING$35.99$28.0710+ In-Stock
2790201-18262-00

(replaces part #
90201-17327-00)

WASHER, PLATE$10.49$8.1810+ In-Stock
2890508-16599-00SPRING, TORSION$9.49$7.4010+ In-Stock
2990465-16239-00CLAMP$18.49$14.4210+ In-Stock
3097017-06010-00

(replaces part #
97007-06010-00)

BOLT(3JP)$4.05$3.4810+ In-Stock
