1998 Yamaha BANSHEE 350 Front Master Cylinder OEM Parts Diagram

Submodel BANSHEE - YFZ350K - 1998

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

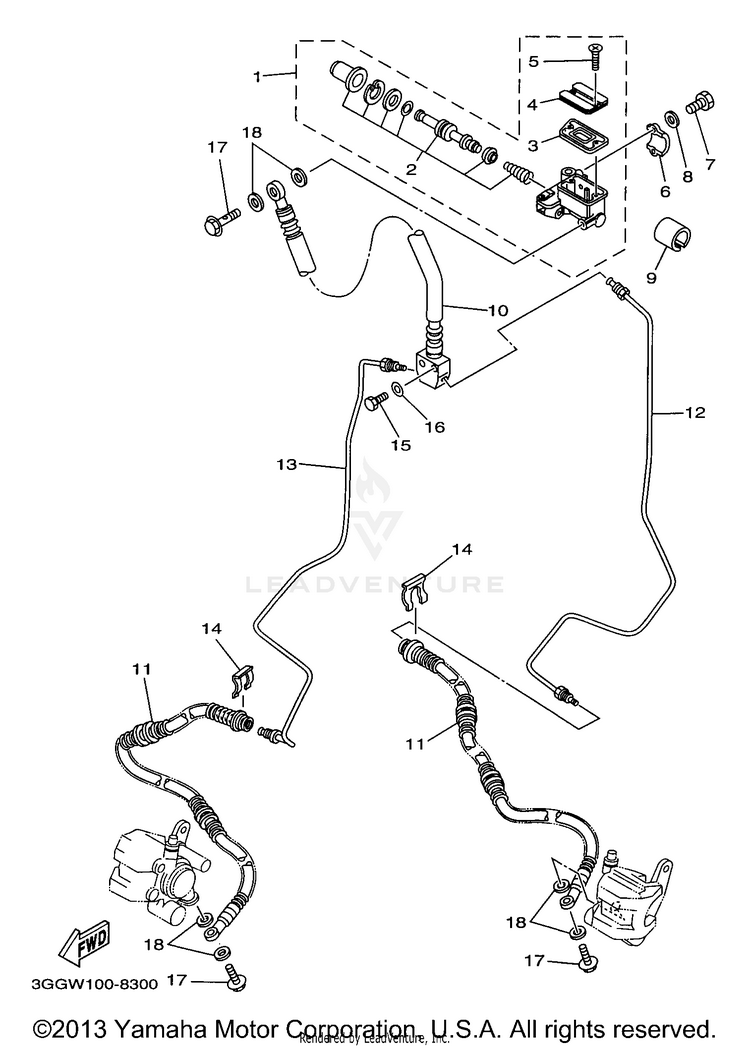

FRONT MASTER CYLINDER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12GU-25870-00-00MASTER CYLINDER SUB ASSY$262.99$205.13Usually ships in 7-10 business days
24H7-W0041-50-00CYLINDER KIT, MASTER$84.99$66.296 In-Stock
AFTERMARKET ALTERNATIVE
$29.80$28.316 In-Stock
34L0-25854-00-00DIAPHRAGM, RESERVOIR$30.99$24.1710+ In-Stock
44H7-25852-00-00CAP, RESERVOIR$43.99$34.312 In-Stock
598707-04012-00

(replaces part #
98706-04012-00)

SCREW, FLAT HEAD-$1.9410+ In-Stock
656A-25867-00-00BRACKET, MASTER CYLINDER$31.99$24.953 In-Stock
797017-06025-00

(replaces part #
97007-06025-00)

BOLT$4.55$3.9110+ In-Stock
892907-06600-00WASHER, PLATE$1.00$0.9910+ In-Stock
91UY-26259-00-00COLLAR$21.99$17.152 In-Stock
102GU-25872-10-00

(replaces part #
2GU-25872-02-00)

HOSE, BRAKE 1$172.99$134.93Usually ships in 7-10 business days
113GG-25873-21-00

(replaces part #
3GG-25873-11-00)

HOSE, BRAKE 2$102.99$80.334 In-Stock
122GU-25871-10-00

(replaces part #
2GU-25871-00-00)

PIPE, BRAKE$26.99$21.052 In-Stock
132GU-25882-10-00

(replaces part #
2GU-25882-00-00)

PIPE, BRAKE 2$21.99$17.155 In-Stock
142GU-25866-00-00CIRCLIP$10.99$8.573 In-Stock
1597017-08025-00

(replaces part #
97027-08025-00)

BOLT$11.49$8.9610+ In-Stock
1692907-08600-00WASHER, PLATE$3.25$2.80
1790401-10159-00BOLT, UNION$12.49$9.7410+ In-Stock
1890201-10118-00WASHER, PLATE$3.80$3.2710+ In-Stock
