1998 Yamaha BREEZE 125 Alternate Engine OEM Parts Diagram

Submodel BREEZE - YFA1K - 1998

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

ALTERNATE ENGINE

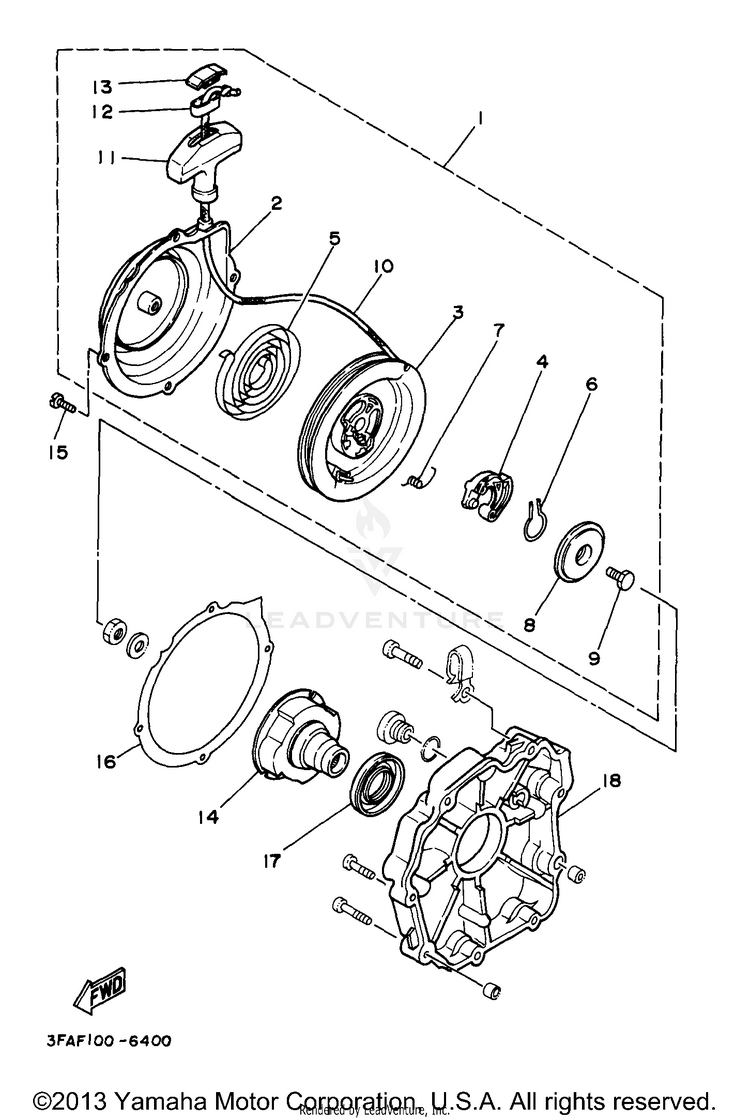

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13FA-15710-00-00STARTER ASSY$225.99$176.27Usually ships in 7-10 business days
23FA-15711-00-00CASE, STARTER$156.05$121.72Usually ships in 7-10 business days
33FA-15714-00-00DRUM, SHEAVE$59.99$46.79Usually ships in 7-10 business days
436R-15741-01-00PAWL, DRIVE$26.99$22.13Not Shipping
536R-15713-00-00SPRING, STARTER$34.99$27.291 In-Stock
636R-15715-00-00SPRING, FRICTION$18.99$15.57Not Shipping
736R-15767-00-00SPRING$6.99$6.29Not Shipping
836R-15716-00-00PLATE, DRIVE$16.99$13.93Not Shipping
997017-06012-00

(replaces part #
97007-06012-00)

BOLT$4.05$3.4810+ In-Stock
1036R-15751-00-00

(replaces part #
3FA-15751-00-00)

ROPE, STARTER$32.99$27.05Not Shipping
113FA-15755-00-00HANDLE, STARTER$15.99$13.11Not Shipping
123FA-15726-00-00WASHER, FLAT$6.49$5.84Usually ships in 7-10 business days
133FA-15779-00-00COVER$6.49$5.84Usually ships in 7-10 business days
143FA-15723-01-00PULLEY, STARTER$224.99$175.49Usually ships in 7-10 business days
1598517-06012-00

(replaces part #
98507-06012-00)

SCREW,PAN$4.10$3.5310+ In-Stock
163FA-15699-10-00GASKET$11.99$9.83Usually ships in 7-10 business days
1793102-28476-00

(replaces part #
93103-28164-00)

OIL SEAL$24.99$19.498 In-Stock
183FA-15787-10-00ADAPTOR | FOR MANUAL$188.99$147.41Usually ships in 7-10 business days
