1998 Yamaha BREEZE 125 Taillight OEM Parts Diagram

Submodel BREEZE - YFA1K - 1998

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

TAILLIGHT

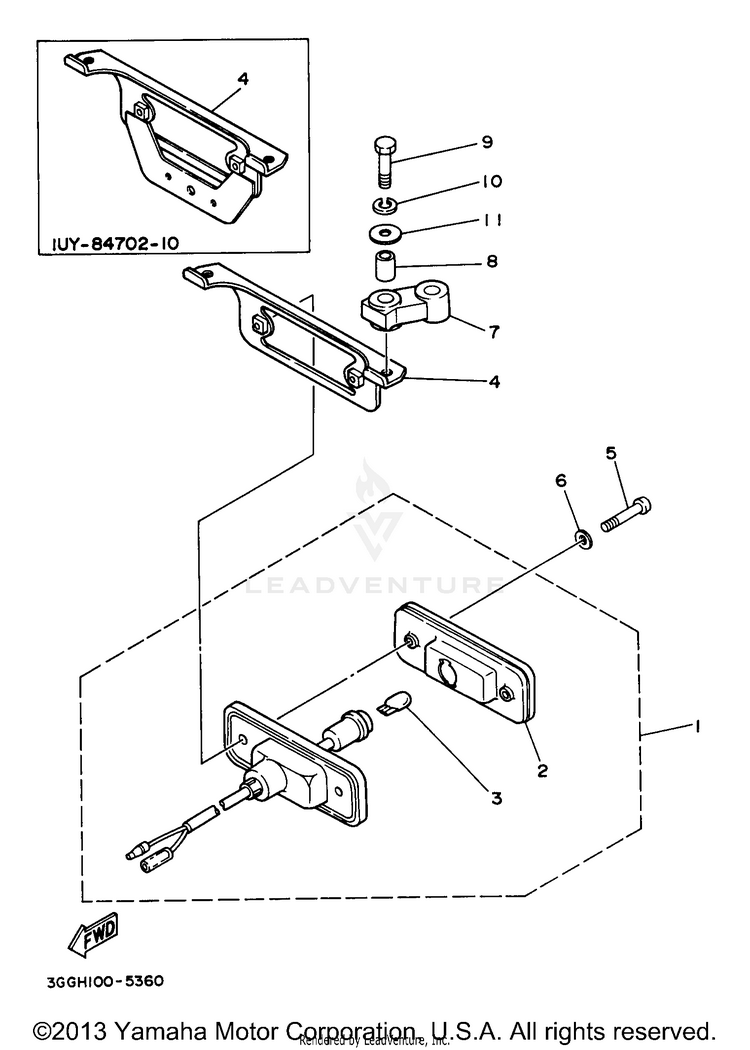

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
138W-84710-00-00TAILLIGHT UNIT ASSY$49.99$38.99Not Shipping
238W-84721-00-00LENS, TAILLIGHT$13.49$10.52Not Shipping
33F9-84744-00-XX

(replaces part #
38W-84714-00-00)

BULB, METER 12V 3.8W$2.40$2.16Not Shipping
41UY-84702-10-00

(replaces part #
1UY-84702-00-00)

BRACKET, TAILLIGHT$31.99$26.23Not Shipping
598517-04020-00

(replaces part #
98507-04020-00)

SCREW, PAN HEAD$9.49$7.4010+ In-Stock
692907-04600-00WASHER$1.85$1.596 In-Stock
738W-84736-00-00DAMPER, TAIL 1$7.49$5.846 In-Stock
890387-07598-00

(replaces part #
90387-06299-00)

COLLAR$6.49$5.0610+ In-Stock
997017-06025-00

(replaces part #
97007-06025-00)

BOLT$4.55$3.9110+ In-Stock
1092907-06100-00WASHER, SPRING$1.30$1.1210+ In-Stock
1190201-06380-00WASHER, PLATE-$0.7110+ In-Stock
