1998 Yamaha RT100 Exhaust OEM Parts Diagram

Submodel RT100K - 1998

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

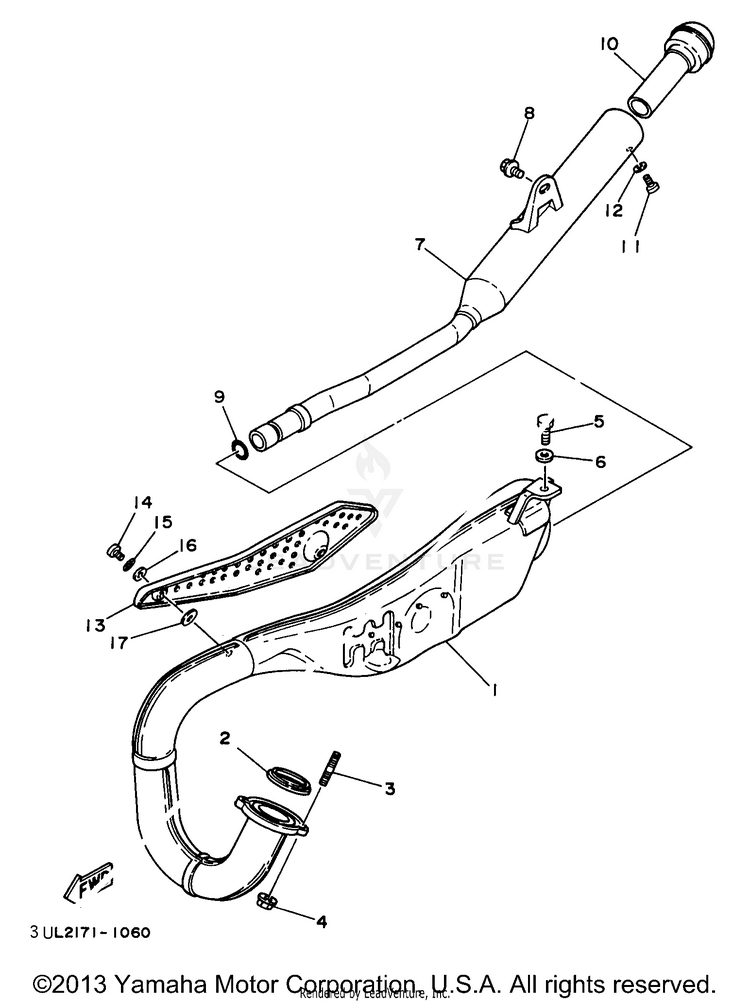

EXHAUST

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13UL-14610-01-00EXHAUST PIPE ASSEMBLY 1$236.99$184.85Usually ships in 7-10 business days
23PA-14613-10-00GASKET, EXHAUST PIPE$16.49$12.8610+ In-Stock
390116-06016-00BOLT, STUD$5.99$4.672 In-Stock
495604-06200-00

(replaces part #
95607-06200-00)

NUT, U FLANGE$2.95$2.5410+ In-Stock
597017-08016-00

(replaces part #
97007-08016-00)

BOLT$9.49$7.408 In-Stock
692907-08600-00WASHER, PLATE$3.25$2.80
73UL-14753-00-00SILENCER, EXHAUST$181.55$141.61Not Shipping
895817-08012-00

(replaces part #
95827-08012-00)

BOLT, FLANGE$5.49$4.2810+ In-Stock
993210-16290-00O-RING$9.49$7.4010+ In-Stock
10438-14752-00-00PIPE, OUTLET$79.99$62.39Usually ships in 7-10 business days
1198507-06010-00SCREW, PAN HEAD$3.85$3.318 In-Stock
1292907-06100-00WASHER, SPRING$1.30$1.1210+ In-Stock
133UL-14718-00-00PROTECTOR, MUFFLER 1$113.99$88.91Not Shipping
1498907-06010-00SCREW, BIND$1.80$1.558 In-Stock
1590206-06090-00WASHER, WAVE$9.49$7.4010+ In-Stock
1690202-05187-00WASHER, PLATE$1.70$1.4610+ In-Stock
1790202-05187-00WASHER, PLATE$1.70$1.4610+ In-Stock
