1998 Yamaha RT100 Frame OEM Parts Diagram

Submodel RT100K - 1998

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRAME

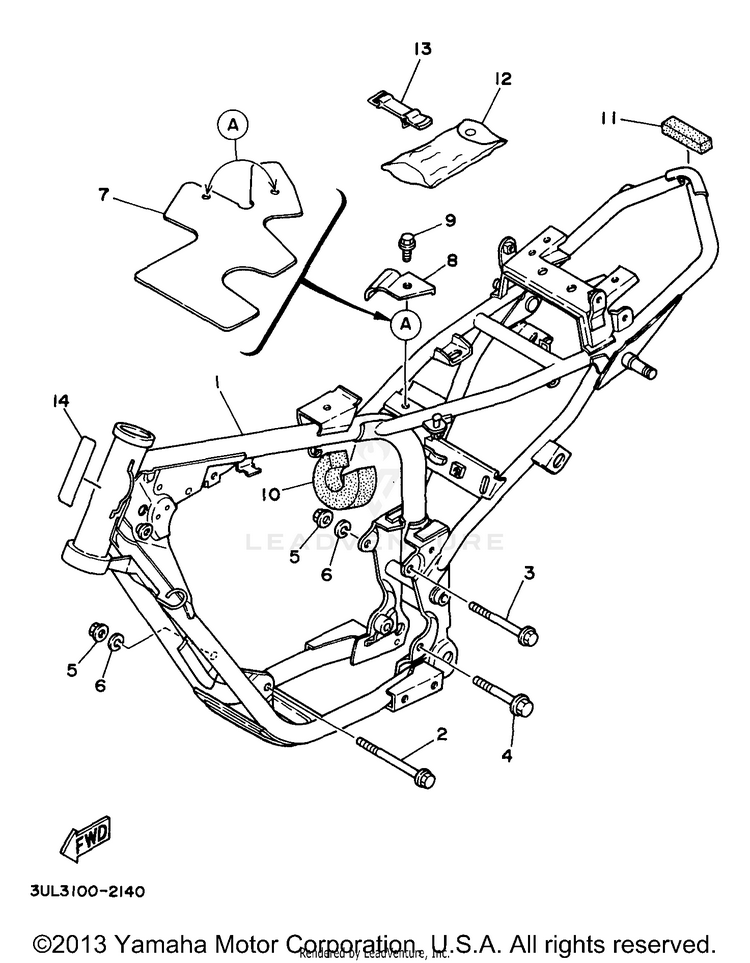

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13UL-21110-00-33FRAME COMP. | YAMAHA BLACK (033)$802.99$626.33Usually ships in 7-10 business days
290105-08094-00BOLT, FLANGE$2.95$2.66Usually ships in 7-10 business days
390105-08095-00BOLT, WASHER BASED$4.50$4.05Usually ships in 7-10 business days
495817-10075-00BOLT, FLANGE$6.49$5.84Usually ships in 7-10 business days
595707-08500-00NUT,FLANGE (JN5)$1.95$1.6810+ In-Stock
692907-08100-00WASHER, SPRING$9.49$7.4010+ In-Stock
73UL-2117F-00-00COVER$86.99$67.85Usually ships in 7-10 business days
83UL-21329-00-00PLATE$11.49$9.42Usually ships in 7-10 business days
995817-06016-00

(replaces part #
95807-06016-00)

BOLT, FLANGE$1.95$1.6810+ In-Stock
108V7-21961-00-00

(replaces part #
1YW-24183-00-00)

PATCH 1$10.49$8.60Usually ships in 7-10 business days
1183R-14425-00-00

(replaces part #
1UJ-21717-00-00)

DAMPER 1$8.49$7.64Usually ships in 7-10 business days
1259V-28100-00-00

(replaces part #
2XK-28100-00-00)

TOOL KIT (24W-28100-00)$42.99$35.25Usually ships in 7-10 business days
1321V-21376-00-00

(replaces part #
288-21376-00-00)

BAND, TOOL$7.49$5.845 In-Stock
143UL-2179X-00-00PLATE, EPA | FOR USA$17.49$14.34Usually ships in 7-10 business days
