FRONT MASTER CYLINDER

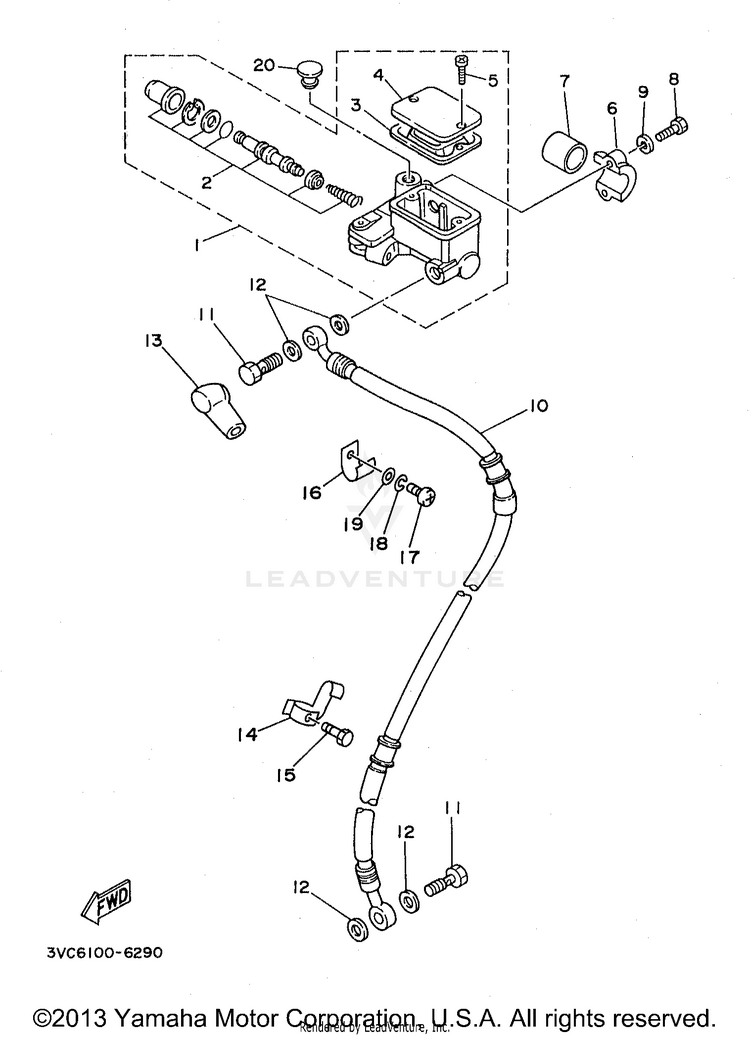

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
139F-25870-00-00MASTER CYLINDER SUB ASSY$194.99$154.02Usually ships in 7-10 business days
256A-W0041-00-00CYLINDER KIT, MASTER$75.99$59.276 In-Stock
AFTERMARKET ALTERNATIVE
$29.55$28.075 In-Stock
34L0-25854-00-00DIAPHRAGM, RESERVOIR$30.99$24.1710+ In-Stock
44H7-25852-00-00CAP, RESERVOIR$43.99$34.312 In-Stock
598707-04012-00SCREW, FLAT HEAD-$1.9410+ In-Stock
64L0-25867-00-00BRACKET, MASTER CYLINDER$35.99$29.51Usually ships in 7-10 business days
790560-22807-09SPACER$5.49$4.94Usually ships in 7-10 business days
897017-06025-00

(replaces part #
97326-06025-09)

BOLT$4.55$3.9110+ In-Stock
992907-06600-00WASHER, PLATE$1.00$0.9910+ In-Stock
102TW-F5872-19-00

(replaces part #
2TW-F5872-11-00)

HOSE,BRAKE 1$198.99$155.21Not Shipping
1190401-10159-00

(replaces part #
90401-10034-00)

BOLT, UNION$12.49$9.7410+ In-Stock
1290201-10886-00WASHER, PLATE$1.30$1.17Not Shipping
133V9-F5862-00-00BOOT, MASTER CYLINDER$8.49$7.64Not Shipping
144BN-F3318-00-00HOLDER, CABLE 1$7.49$6.74Not Shipping
1591317-06010-00BOLT$10.49$8.184 In-Stock
164BN-F5875-00-00HOLDER, BRAKE HOSE 1$6.99$6.29Usually ships in 7-10 business days
1790159-06082-00

(replaces part #
90159-06084-00)

SCREW, WITH WASHER$10.49$8.1810+ In-Stock
1892907-06100-00

(replaces part #
92906-06100-09)

WASHER, SPRING$1.30$1.1210+ In-Stock
1990201-06380-00WASHER, PLATE-$0.7110+ In-Stock
202WL-F5825-00-00

(replaces part #
2WL-F151W-00-00)

CAP$1.25$1.12Usually ships in 7-10 business days
