1998 Yamaha RT180 Shift Shaft OEM Parts Diagram

Submodel RT180K - 1998

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

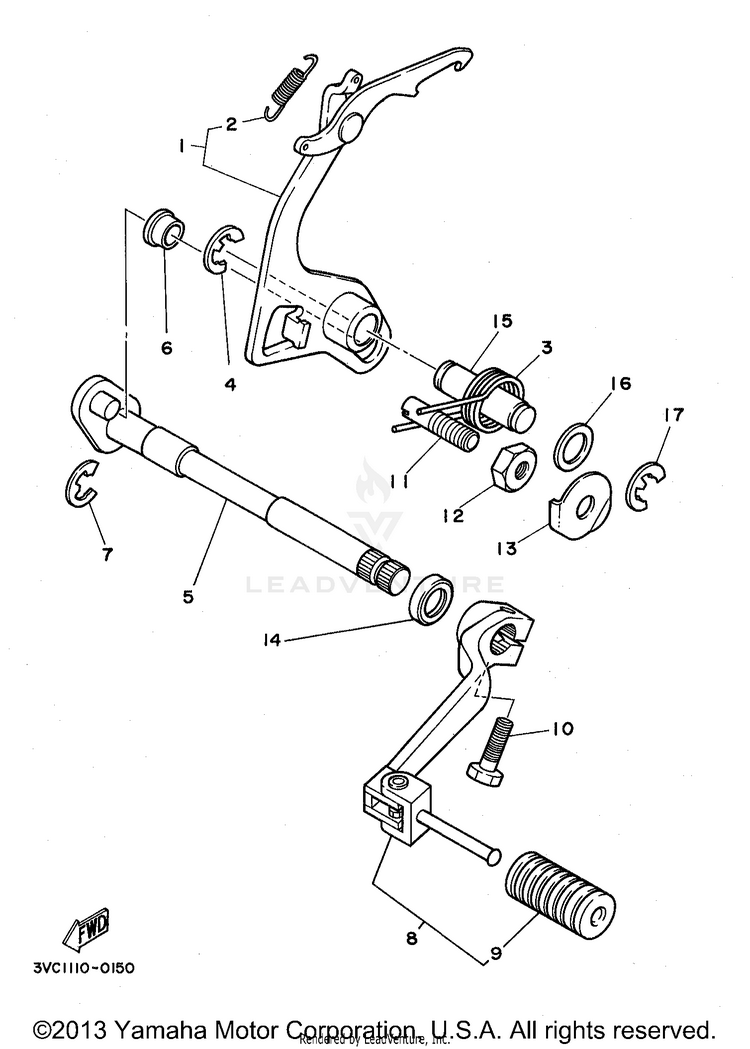

SHIFT SHAFT

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
123K-E8120-00-00SHIFT LEVER ASSEMBLY$26.99$22.13Not Shipping
290506-08155-00SPRING, TENSION$11.49$9.42Usually ships in 7-10 business days
390508-32349-00SPRING, TORSION$11.49$9.42Usually ships in 7-10 business days
499006-10600-00

(replaces part #
93430-10801-09)

CIRCLIP$10.49$8.1810+ In-Stock
55L9-E8101-00-00SHIFT SHAFT ASSEMBLY$55.99$43.67Not Shipping
6401-18178-00-00ROLLER, SHIFT LEVER$21.99$18.03Usually ships in 7-10 business days
799006-10600-00

(replaces part #
93430-10W02-09)

CIRCLIP$10.49$8.1810+ In-Stock
823K-E8110-00-00SHIFT PEDAL ASSEMBLY$38.99$31.97Not Shipping
94VW-E8113-00-00

(replaces part #
502-19901-00-00)

COVER,CHARGE PEDAL$2.85$2.56Usually ships in 7-10 business days
1097017-06020-00

(replaces part #
97322-06020-09)

BOLT$4.06$3.4910+ In-Stock
1190149-08111-00SCREW, SPECL SHAPE$4.40$3.96Usually ships in 7-10 business days
1290170-08193-00

(replaces part #
90170-08029-00)

NUT, HEXAGON$4.65$4.0010+ In-Stock
1390215-08014-00WASHER, LOCK$6.49$5.061 In-Stock
1493101-12173-00

(replaces part #
93101-12060-00)

OIL SEAL$14.49$11.3010+ In-Stock
151W1-18197-01-00SHAFT$5.99$5.39Usually ships in 7-10 business days
1690201-12M34-00

(replaces part #
90201-12163-09)

WASHER, PLATE$3.90$3.35
1799006-10600-00

(replaces part #
93430-10801-00)

CIRCLIP$10.49$8.1810+ In-Stock
