1998 Yamaha V-Star 650 Custom Electrical 2 OEM Parts Diagram

Submodel V-STAR CUSTOM - XVS650KC - 1998

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

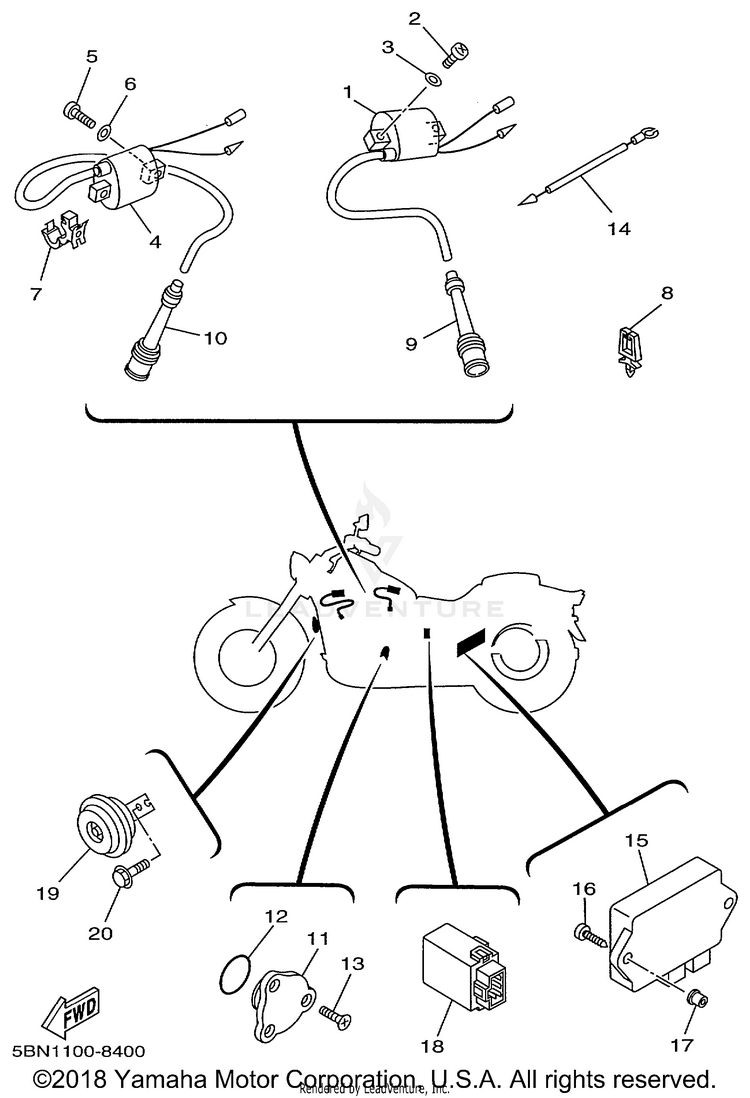

ELECTRICAL 2

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14VR-82320-00-00

(replaces part #
4VR-82310-00-00)

IGNITION COIL ASSY$178.99$139.61Usually ships in 7-10 business days
298517-05020-00

(replaces part #
98507-05020-00)

SCREW, PAN HEAD$1.75$1.503 In-Stock
392907-05600-00WASHER, PLATE$1.00$0.8610+ In-Stock
44VR-82320-00-00IGNITION COIL ASSY$178.99$139.61Usually ships in 7-10 business days
598517-05020-00

(replaces part #
98507-05020-00)

SCREW, PAN HEAD$1.75$1.503 In-Stock
692907-05600-00WASHER, PLATE$1.00$0.8610+ In-Stock
790464-10190-00CLAMP$10.49$8.60Usually ships in 7-10 business days
890464-05141-00CLAMP$2.55$2.30Usually ships in 7-10 business days
94XY-82370-00-00

(replaces part #
1FK-82370-00-00)

PLUG CAP ASSY$87.99$68.63Usually ships in 7-10 business days
104VW-82370-00-00

(replaces part #
4TR-82370-00-00)

PLUG CAP ASSY$75.99$59.276 In-Stock
111L9-82540-00-00NEUTRAL SWITCH ASSY$51.99$40.557 In-Stock
1293210-29196-00O-RING$9.49$7.4010+ In-Stock
1390149-05245-00

(replaces part #
90149-05321-00)

SCREW$9.49$8.54Usually ships in 7-10 business days
144TR-82509-00-00WIRE, SUB LEAD$10.99$9.01Usually ships in 7-10 business days
155BN-82305-01-00

(replaces part #
5BN-82305-00-00)

IGNITOR UNIT ASSY$777.99$631.32Usually ships in 7-10 business days
1697707-60020-00SCREW, TAPPING-$1.475 In-Stock
1790338-08226-00PLUG$2.35$2.0210+ In-Stock
182UJ-83350-01-00

(replaces part #
2UJ-83350-00-00)

FLASHER RELAY ASY$149.99$116.99Usually ships in 7-10 business days
1955V-83371-00-00HORN$48.99$40.17Usually ships in 7-10 business days
2090105-082A5-00BOLT, WASHER BASED$3.80$3.42Usually ships in 7-10 business days
