1998 Yamaha V-Star 650 Custom Meter OEM Parts Diagram

Submodel V-STAR CUSTOM - XVS650KC - 1998

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

METER

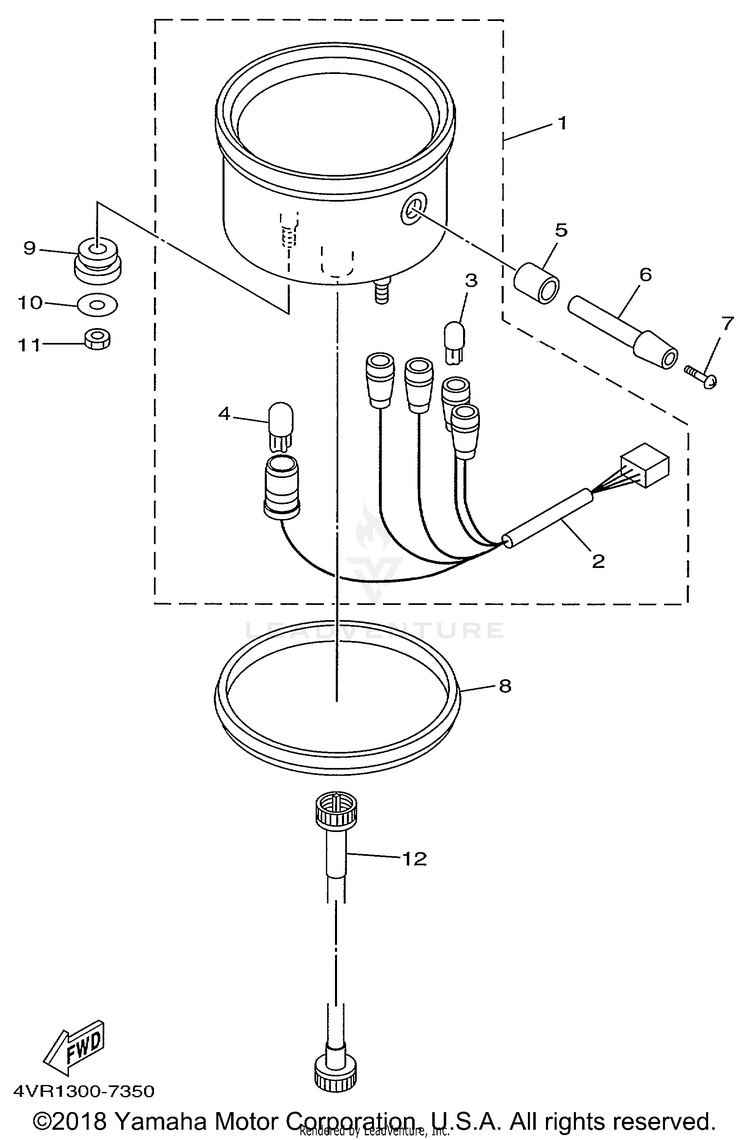

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14TR-83580-50-00SPEEDOMETER ASSY$396.99$329.65Usually ships in 7-10 business days
24TR-83520-10-00SOCKET CORD ASSY$64.99$50.69Not Shipping
33FV-83517-00-00

(replaces part #
2GV-83517-00-00)

BULB (12V-1.7W)$9.49$7.4010+ In-Stock
43GM-83517-00-00

(replaces part #
1YT-83517-00-00)

BULB (12V-1.7W T6.5)$8.49$6.6210+ In-Stock
54TR-83535-00-00TUBE$8.49$7.64Usually ships in 7-10 business days
61JK-83578-00-00KNOB, TRIP METER$22.99$18.85Usually ships in 7-10 business days
790157-02031-00SCREW, PAN HEAD$11.49$8.963 In-Stock
84TR-83513-00-00DAMPER$15.49$12.70Usually ships in 7-10 business days
94TR-83526-00-00DAMPER 2$7.49$6.74Usually ships in 7-10 business days
1090201-05033-00WASHER, SPECIAL$11.49$8.964 In-Stock
1195317-05700-00

(replaces part #
95307-05700-00)

NUT$9.49$7.402 In-Stock
124VR-83550-01-00

(replaces part #
4JH-83550-01-00)

SPEEDOMETER CABLE ASSY$39.99$32.79Usually ships in 7-10 business days
