1999 Yamaha BANSHEE 350 Crankcase OEM Parts Diagram

Submodel BANSHEE - YFZ350L - 1999

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

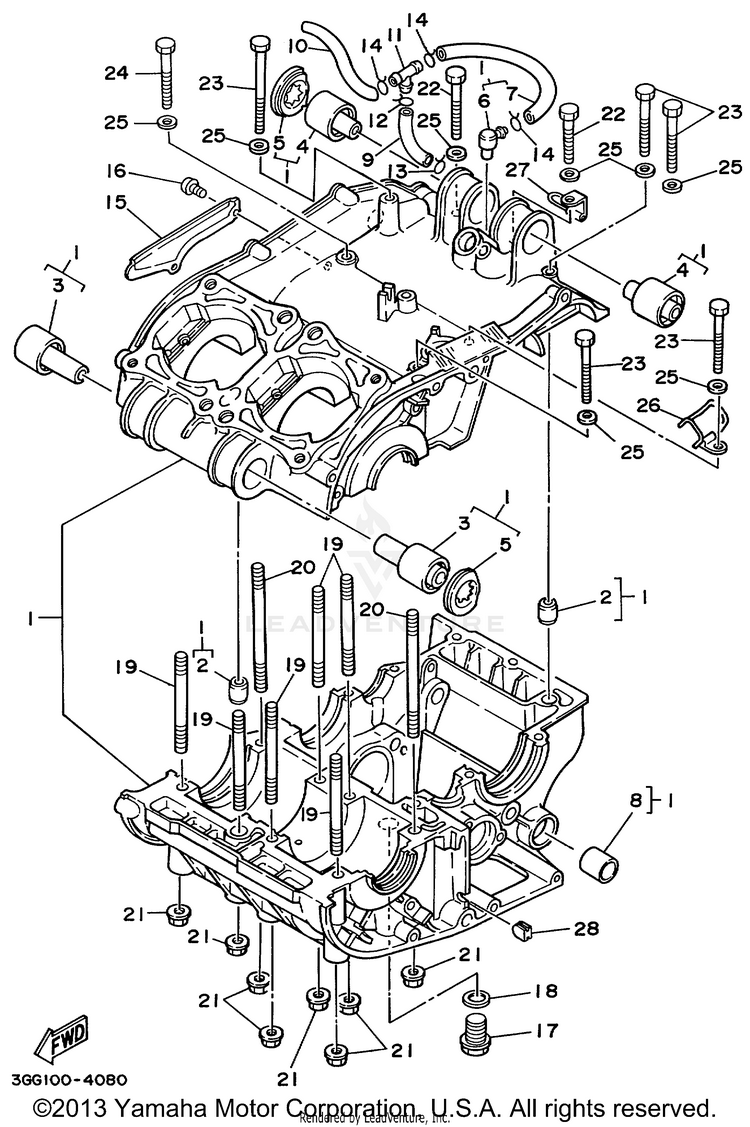

CRANKCASE

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12GU-15100-03-00

(replaces part #
2GU-15100-01-00)

CRANKCASE ASSY$957.99$857.863 In-Stock
299530-12016-00

(replaces part #
99510-12016-00)

PIN, DOWEL$4.89$4.2110+ In-Stock
390388-10006-00

(replaces part #
2GU-15316-00-00)

DAMPER$33.99$26.5110+ In-Stock
490388-10007-00

(replaces part #
2GU-15326-00-00)

DAMPER$35.99$28.0710+ In-Stock
52GU-15328-01-00

(replaces part #
2GU-15328-00-00)

SPACER, DAMPER$18.99$14.8110+ In-Stock
6583-15371-00-00

(replaces part #
120-15371-00-00)

BREATHER$7.49$5.8410+ In-Stock
75RB-24315-00-00

(replaces part #
90445-09109-00)

PIPE 5$8.49$6.6210+ In-Stock
890383-12022-00BUSH, FORMED$11.49$8.965 In-Stock
990445-081F1-00HOSE (L508)$17.49$13.644 In-Stock
1090445-090F6-00

(replaces part #
90445-09123-00)

HOSE (L675)$34.99$27.296 In-Stock
1190413-05014-00WAY 3$10.49$8.185 In-Stock
1290467-08021-00CLIP$9.49$7.4010+ In-Stock
1390467-07093-00CLIP$3.60$3.104 In-Stock
1490467-08021-00

(replaces part #
90467-08075-00)

CLIP$9.49$7.4010+ In-Stock
15278-15492-01-00COVER$8.49$6.6210+ In-Stock
1698517-05010-00

(replaces part #
98507-05010-00)

SCREW, PAN HEAD$4.60$3.9610+ In-Stock
1790340-14132-00PLUG, STRAIGHT SCREW$3.15$2.7110+ In-Stock
1890430-14043-00GASKET$8.49$6.6210+ In-Stock
1990116-08064-00BOLT, STUD$8.49$6.6210+ In-Stock
2090116-08232-00BOLT, STUD$13.49$10.5210+ In-Stock
2195707-08500-00NUT,FLANGE (JN5)$1.95$1.6810+ In-Stock
2297017-06045-00BOLT$4.05$3.484 In-Stock
2397017-06060-00BOLT$4.65$4.0010+ In-Stock
2497017-06090-00BOLT$3.45$2.976 In-Stock
2592907-06200-00WASHER$9.49$7.4010+ In-Stock
2690462-16130-00CLAMP$14.49$11.304 In-Stock
2790465-06094-00CLAMP$13.49$10.526 In-Stock
2890338-06190-00PLUG$9.49$7.407 In-Stock
