1999 Yamaha BANSHEE 350 Radiator - Hose OEM Parts Diagram

Submodel BANSHEE - YFZ350L - 1999

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

RADIATOR - HOSE

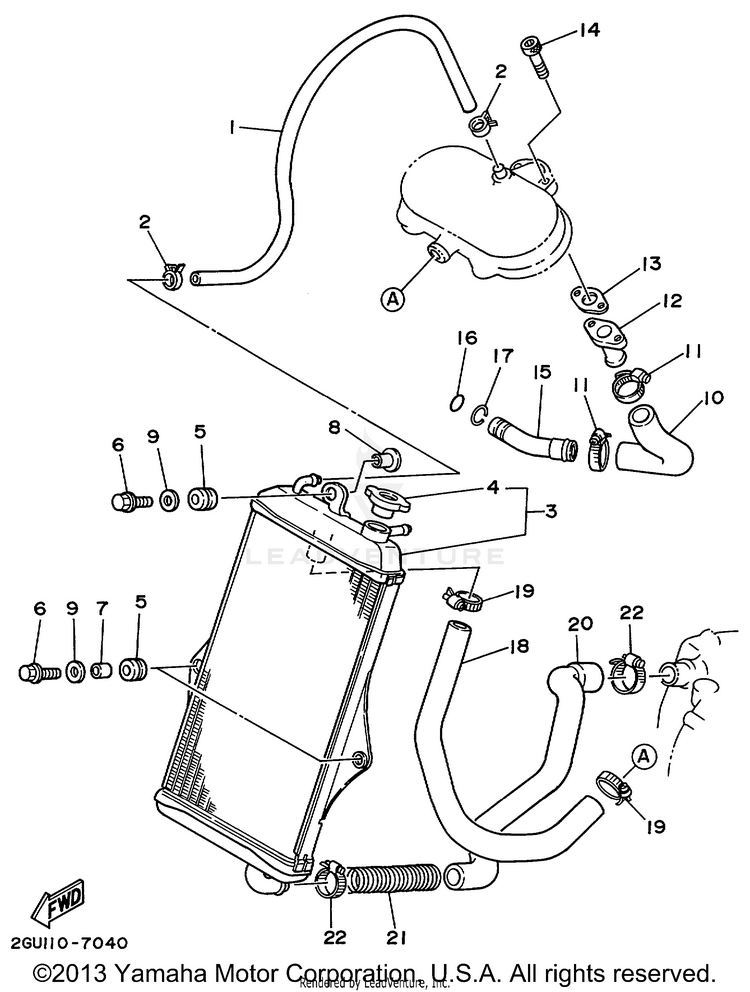

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12GU-12485-00-00PIPE 5$32.99$25.734 In-Stock
290467-13133-00

(replaces part #
90467-13083-00)

CLIP$9.49$7.4010+ In-Stock
32GU-12461-01-00

(replaces part #
2GU-12460-01-00)

RADIATOR ASSEMBLY (2GU-12460-01$851.99$743.02Not Shipping
44FL-12462-00-00

(replaces part #
22W-12462-00-00)

CAP, RADIATOR$68.99$53.8110+ In-Stock
590480-15470-00GROMMET$9.49$7.4010+ In-Stock
695817-06025-00

(replaces part #
95807-06025-00)

BOLT, FLANGE$5.49$4.2810+ In-Stock
790387-07020-00

(replaces part #
90387-0714B-00)

COLLAR$9.49$7.4010+ In-Stock
890387-063G3-00COLLAR$9.49$7.4010+ In-Stock
990201-06086-00

(replaces part #
90201-060A3-00)

WASHER, PLATE$8.49$7.0110+ In-Stock
1029L-12481-00-00PIPE 1$31.99$24.957 In-Stock
1190460-27219-00CLAMP, HOSE$29.99$23.394 In-Stock
124L0-12479-00-00JOINT$30.99$24.177 In-Stock
133XV-12435-00-00GASKET$8.49$6.6210+ In-Stock
1491317-06020-00BOLT, HEX. SOCKET HEAD$2.75$2.3610+ In-Stock
1529L-12469-00-00JOINT 1$34.99$27.294 In-Stock
1693210-16314-00

(replaces part #
93210-17239-00)

O-RING$4.65$4.2410+ In-Stock
1793440-19083-00CIRCLIP$9.49$7.4010+ In-Stock
182GU-12482-00-00PIPE 2$63.99$49.914 In-Stock
1990460-27219-00CLAMP, HOSE$29.99$23.394 In-Stock
202GU-12484-00-00PIPE 4$72.99$56.936 In-Stock
2111H-12516-00-00COVER, WATER INLET$32.99$25.733 In-Stock
2290460-27219-00CLAMP, HOSE$29.99$23.394 In-Stock
