1999 Yamaha YZ250 Crankshaft Piston OEM Parts Diagram

Submodel COMPETITION - YZ250L1 - 1999

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CRANKSHAFT PISTON

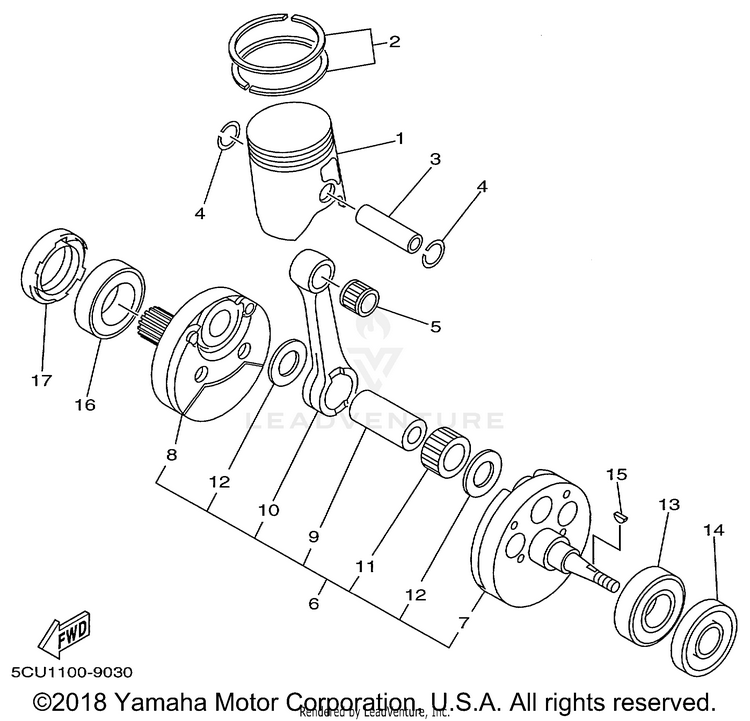

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15CU-11631-00-A0PISTON (STD)$132.99$103.73Not Shipping
15CU-11631-00-C0PISTON (STD)$135.99$106.07Not Shipping
15CU-11631-00-B0PISTON (STD)$135.99$106.07Not Shipping
15CU-11631-00-D0PISTON (STD)$132.99$103.73Not Shipping
25CU-11603-11-00

(replaces part #
5CU-11603-00-00)

PISTON RING SET (STD)$54.99$42.8910+ In-Stock
35CU-11633-10-00

(replaces part #
5CU-11633-00-00)

PIN, PISTON$43.99$36.07Usually ships in 7-10 business days
493450-19052-00CIRCLIP, INNER$7.99$6.2310+ In-Stock
593310-218A6-00BEARING$42.99$33.5310+ In-Stock
65CU-11400-00-00CRANKSHAFT ASSEMBLY$597.99$466.43Not Shipping
75CU-11410-00-00CRANKSHAFT$242.75$189.34Not Shipping
85CU-11420-00-00CRANKSHAFT$217.99$170.03Usually ships in 7-10 business days
95CU-11681-00-00PIN, CRANK 1$72.99$56.933 In-Stock
105MW-11651-00-00

(replaces part #
5CU-11651-00-00)

ROD, CONNECTING$184.99$144.29Usually ships in 7-10 business days
1193310-5240J-00BEARING$69.78$54.43Not Shipping
1290209-24327-00WASHER$48.99$38.214 In-Stock
1393306-37808-00BEARING$82.99$64.7310+ In-Stock
1493102-20485-00OIL SEAL$23.99$18.7110+ In-Stock
1590280-03017-00

(replaces part #
90280-03045-00)

KEY, WOODRUFF$8.49$6.8310+ In-Stock
1693306-37808-00BEARING$82.99$64.7310+ In-Stock
1793103-36182-00OIL SEAL$26.99$21.0510+ In-Stock
