1999 Yamaha YZ250 Shift Cam Fork OEM Parts Diagram

Submodel COMPETITION - YZ250L1 - 1999

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SHIFT CAM FORK

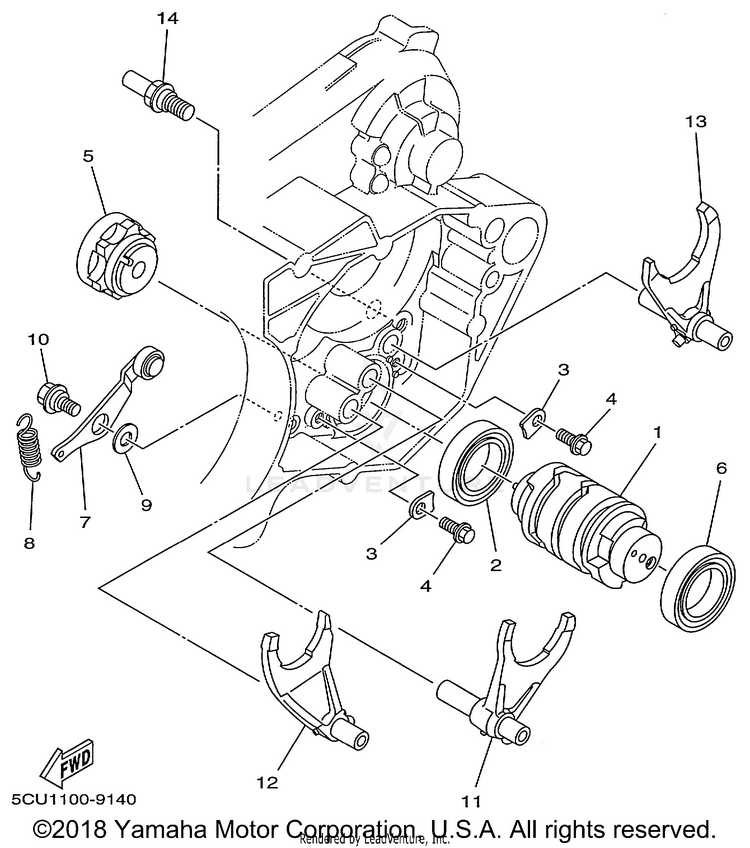

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15CU-18541-00-00CAM, SHIFT$138.99$108.41Not Shipping
293306-90506-00

(replaces part #
93306-90504-00)

BEARING$45.99$35.8710+ In-Stock
35DH-18562-00-00PLATE, STOPPER 2$8.49$6.627 In-Stock
495027-06012-00

(replaces part #
90105-06553-00)

BOLT, FLANGE$4.20$3.6110+ In-Stock
54EW-18185-00-00SEGMENT$118.99$92.817 In-Stock
693306-90501-00BEARING$45.99$35.8710+ In-Stock
75CU-18140-01-00

(replaces part #
5CU-18140-00-00)

STOPPER LEVER ASSY$70.99$55.3710+ In-Stock
890507-14064-00SPRING, TENSION$9.49$7.4010+ In-Stock
990201-06104-00

(replaces part #
90201-06589-00)

WASHER, PLATE$6.49$5.064 In-Stock
1090109-06036-00

(replaces part #
90109-063F8-00)

BOLT$10.49$8.187 In-Stock
115BE-18501-20-00

(replaces part #
5BE-18501-00-00)

FORK, SHIFT 1$133.99$104.5110+ In-Stock
125BE-18502-20-00

(replaces part #
5BE-18502-00-00)

FORK, SHIFT 2$150.99$117.7710+ In-Stock
135CU-18503-20-00

(replaces part #
5CU-18503-00-00)

FORK, SHIFT 3$93.99$73.3110+ In-Stock
1490109-08227-00

(replaces part #
4BR-18127-00-00)

BOLT$8.49$6.624 In-Stock
