2000 Yamaha KODIAK 400 2x4 Shift Cam Fork OEM Parts Diagram

Submodel KODIAK 2WD - YFM400AMC - 2000

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SHIFT CAM FORK

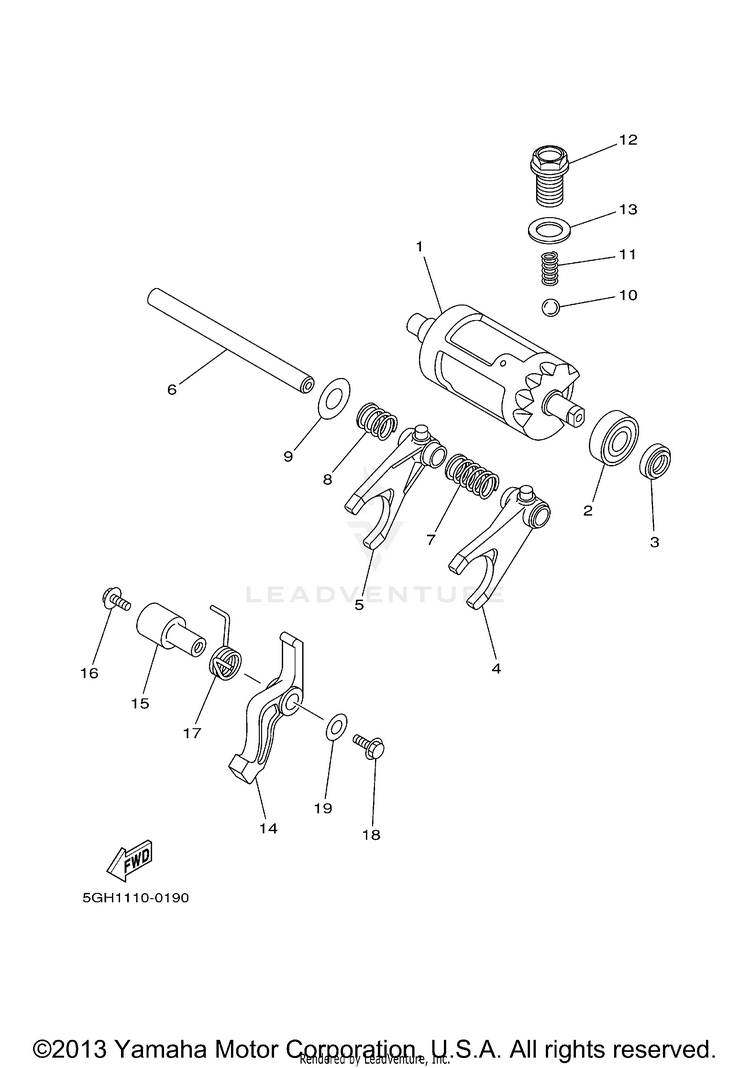

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15GH-18540-00-00SHIFT CAM ASSY$256.99$200.45Usually ships in 7-10 business days
293306-00208-00BEARING$45.99$37.71Usually ships in 7-10 business days
393102-15212-00OIL SEAL$10.49$8.189 In-Stock
45GH-18511-00-00FORK, SHIFT 1$64.99$50.69Usually ships in 7-10 business days
55GH-18512-00-00FORK, SHIFT 2$64.99$50.69Usually ships in 7-10 business days
64KB-18531-01-00BAR, SHIFT FORK GUIDE 1$18.49$15.16Usually ships in 7-10 business days
790501-13001-00SPRING, COMPRESSION$0.90$0.81Usually ships in 7-10 business days
890501-166L4-00SPRING, COMPRESSION$1.80$1.62Usually ships in 7-10 business days
990201-15234-00

(replaces part #
90201-15564-00)

WASHER, PLATE$9.49$7.406 In-Stock
1093503-08007-00BALL$4.50$3.879 In-Stock
1190501-10353-00SPRING, COMPRESSION$10.49$8.182 In-Stock
1290105-14367-00BOLT, FLANGE$12.49$10.24Usually ships in 7-10 business days
1390430-14043-00

(replaces part #
90430-14042-00)

GASKET$8.49$6.6210+ In-Stock
145GH-18148-00-00LEVER, STOPPER$67.99$53.03Usually ships in 7-10 business days
155GH-1812E-00-00SHAFT, STOPPER$46.99$38.53Usually ships in 7-10 business days
1690105-06696-00

(replaces part #
95027-06016-00)

BOLT, FLANGE$10.49$8.1810+ In-Stock
1790508-235B7-00SPRING, TORSION$3.40$3.06Usually ships in 7-10 business days
1895027-06014-00BOLT, FLANGE$0.95$0.825 In-Stock
1990201-06020-00

(replaces part #
90201-06060-00)

WASHER, PLATE$10.49$8.1810+ In-Stock
