2000 Yamaha KODIAK 400 2x4 Steering Handle Cable OEM Parts Diagram

Submodel KODIAK 2WD - YFM400AMC - 2000

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

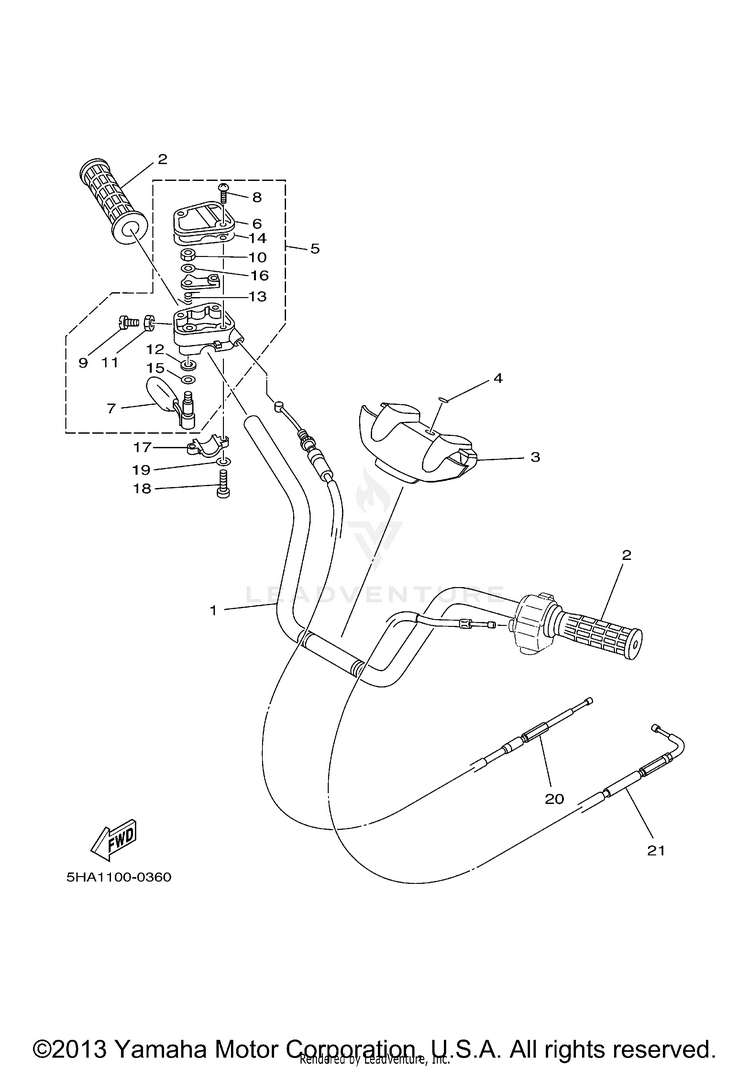

STEERING HANDLE CABLE

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15GH-26111-00-00HANDLEBAR$46.99$38.53Not Shipping
23GB-26241-00-00GRIP (L.H.) (5V6-26241-01)$23.99$18.7110+ In-Stock
35GH-26124-00-00PROTECTOR, HANDLEBAR$15.99$13.11Not Shipping
45GT-2836B-10-00

(replaces part #
5GT-2836B-00-00)

TUNING FORK MARK$17.99$14.034 In-Stock
54KB-26250-12-00

(replaces part #
4KB-26250-00-00)

THROTTLE LEVER ASSY-$260.603 In-Stock
64KB-2628F-00-00CAP, GEAR$23.99$19.67Not Shipping
71NV-2625G-02-00

(replaces part #
1NV-2625G-01-00)

LEVER, THROTTLE$65.99$51.474 In-Stock
890149-04278-00SCREW$0.95$0.8210+ In-Stock
998517-05020-00

(replaces part #
98507-05020-00)

SCREW, PAN HEAD$1.75$1.503 In-Stock
1095617-05100-00

(replaces part #
95607-05100-00)

NUT, U$10.49$8.1810+ In-Stock
1195317-05700-00

(replaces part #
95307-05700-00)

NUT$9.49$7.402 In-Stock
1293104-09025-00OIL SEAL$8.49$6.623 In-Stock
131NV-26304-00-00SPRING$12.99$10.133 In-Stock
144KB-2628G-00-00GASKET$14.49$11.301 In-Stock
151NV-26129-00-00WASHER$7.49$5.842 In-Stock
1653L-83909-00-00

(replaces part #
1NV-26398-00-00)

WASHER, SPECIAL$4.55$3.91Not Shipping
174V4-82913-00-00HOLDER, LEVER LOWER 1$31.99$24.95
1898517-05020-00

(replaces part #
98507-05020-00)

SCREW, PAN HEAD$1.75$1.503 In-Stock
1992907-05100-00WASHER, SPRING$9.49$7.706 In-Stock
205GH-26311-11-00

(replaces part #
5GH-26311-00-00)

CABLE, THROTTLE 1$36.99$28.852 In-Stock
215GH-26331-02-00

(replaces part #
5GH-26331-00-00)

CABLE, STARTER 1$45.99$35.873 In-Stock
