2000 Yamaha TTR90 Electrical 1 OEM Parts Diagram

Submodel TTR90 - TTR90MC - 2000

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

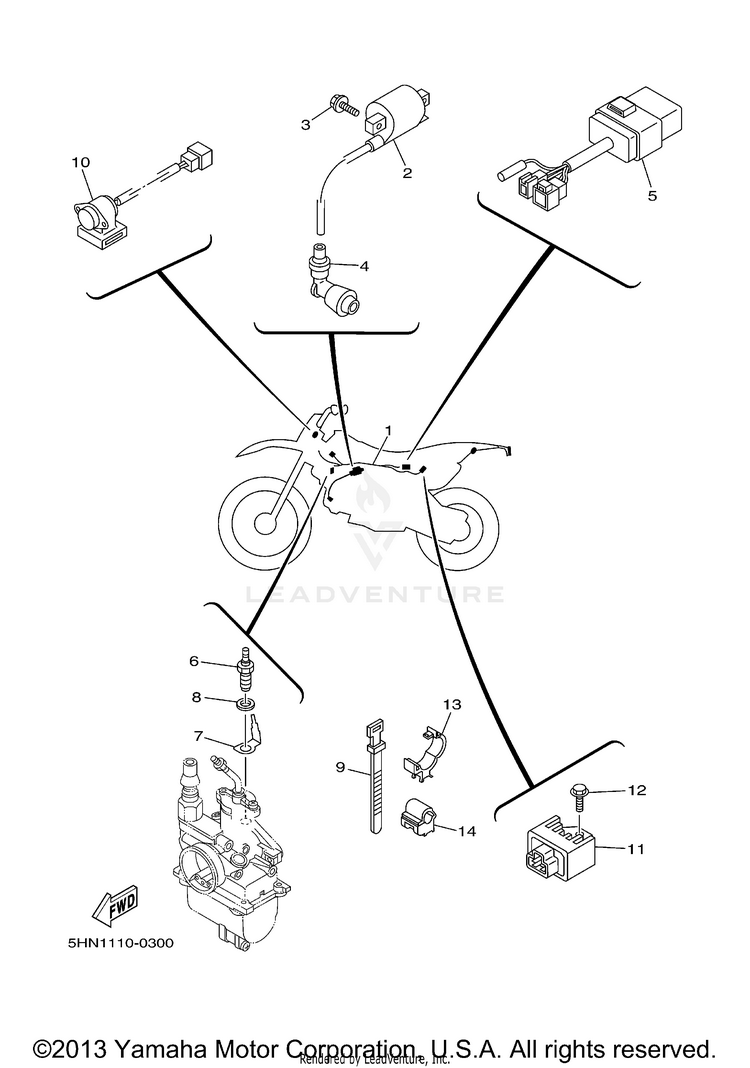

ELECTRICAL 1

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15HN-82590-00-00WIRE HARNESS ASSY$13.49$11.06Usually ships in 7-10 business days
23KJ-82310-14-00

(replaces part #
4KJ-82310-10-00)

IGNITION COIL ASSY$41.99$41.7510+ In-Stock
395027-06020-00BOLT, FLANGE-$2.8110+ In-Stock
44BP-82370-01-00

(replaces part #
4BP-82370-00-00)

PLUG CAP ASSY$38.99$30.418 In-Stock
54GL-85540-20-00C.D.I. UNIT ASSY$204.99$159.89Usually ships in 7-10 business days
65FU-83790-20-00

(replaces part #
3BT-83790-00-00)

HEATER ASSY (30W)$53.99$42.114 In-Stock
75FU-82103-00-00

(replaces part #
3BT-82103-00-00)

TERMINAL 1$8.49$6.622 In-Stock
890201-08016-00

(replaces part #
90201-085R5-00)

WASHER, PLATE$9.49$7.404 In-Stock
95Y9-12491-00-00CLAMP 1$7.49$6.744 In-Stock
104TR-82560-00-00THERMO SWITCH ASSY$59.99$46.79Usually ships in 7-10 business days
114CK-81960-01-00RECTIFIER & REGULATOR ASSY$217.99$170.03Usually ships in 7-10 business days
1295027-06012-00BOLT, FLANGE$4.20$3.6110+ In-Stock
1390464-15192-00CLAMP$9.49$7.404 In-Stock
1490464-05188-00CLAMP$5.49$4.94Usually ships in 7-10 business days

Get additional RM Cash on OEM purchases!

Select parts to add, then click
