2000 Yamaha TTR90 Valve OEM Parts Diagram

Submodel TTR90 - TTR90MC - 2000

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

VALVE

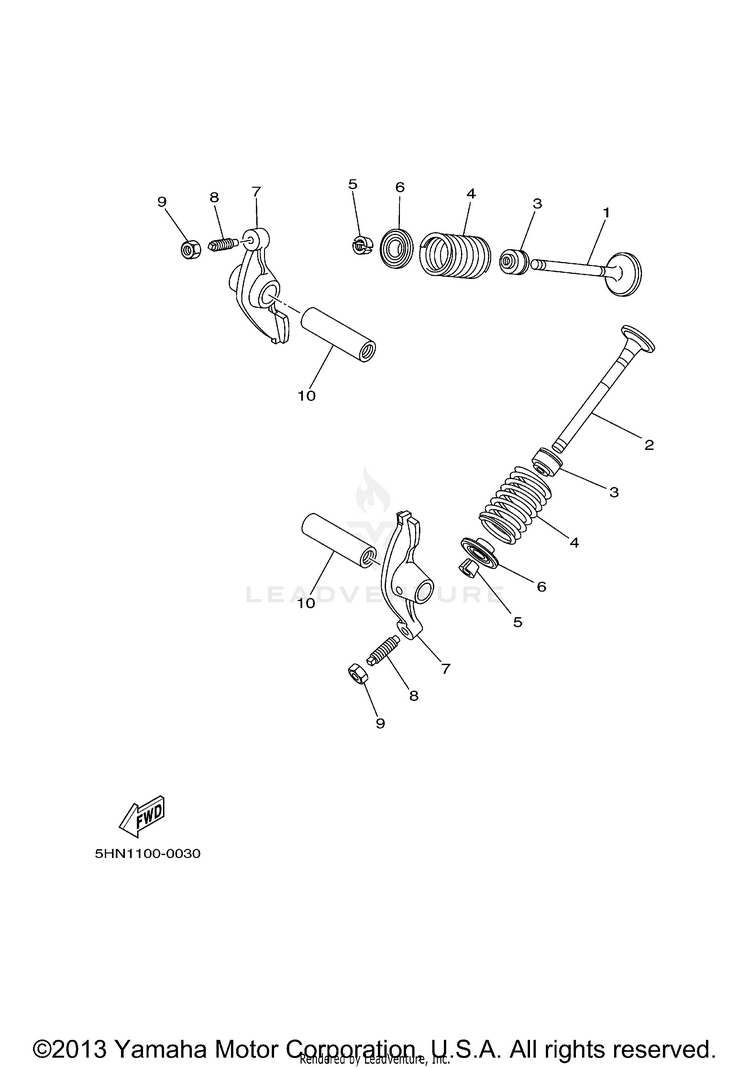

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14GL-12111-11-00VALVE, INTAKE$39.99$31.199 In-Stock
24GL-12121-01-00

(replaces part #
4GL-12121-00-00)

VALVE, EXHAUST$82.99$64.735 In-Stock
34SV-12119-00-00

(replaces part #
1WG-12119-00-00)

SEAL, VALVE STEM$25.99$20.2710+ In-Stock
45DV-12114-01-00

(replaces part #
4GL-12114-00-00)

SPRING, VALVE OUTER$14.49$11.305 In-Stock
51WG-12118-00-00LOCK, VALVE SPRING RETAINER$9.49$7.4010+ In-Stock
63UH-12117-00-00RETAINER, VALVE SPRING$9.49$7.404 In-Stock
722F-12151-10-00

(replaces part #
22F-12151-00-00)

ARM, VALVE ROCKER$37.99$29.636 In-Stock
822F-12159-00-00SCREW, VALVE ADJUSTING$10.99$8.578 In-Stock
990170-05302-00NUT$0.90$0.776 In-Stock
1022F-12156-00-00SHAFT, ROCKER 2$22.99$17.9310+ In-Stock
