2000 Yamaha V-Max Camshaft Chain OEM Parts Diagram

Submodel V-MAX - VMX1200MC - 2000

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

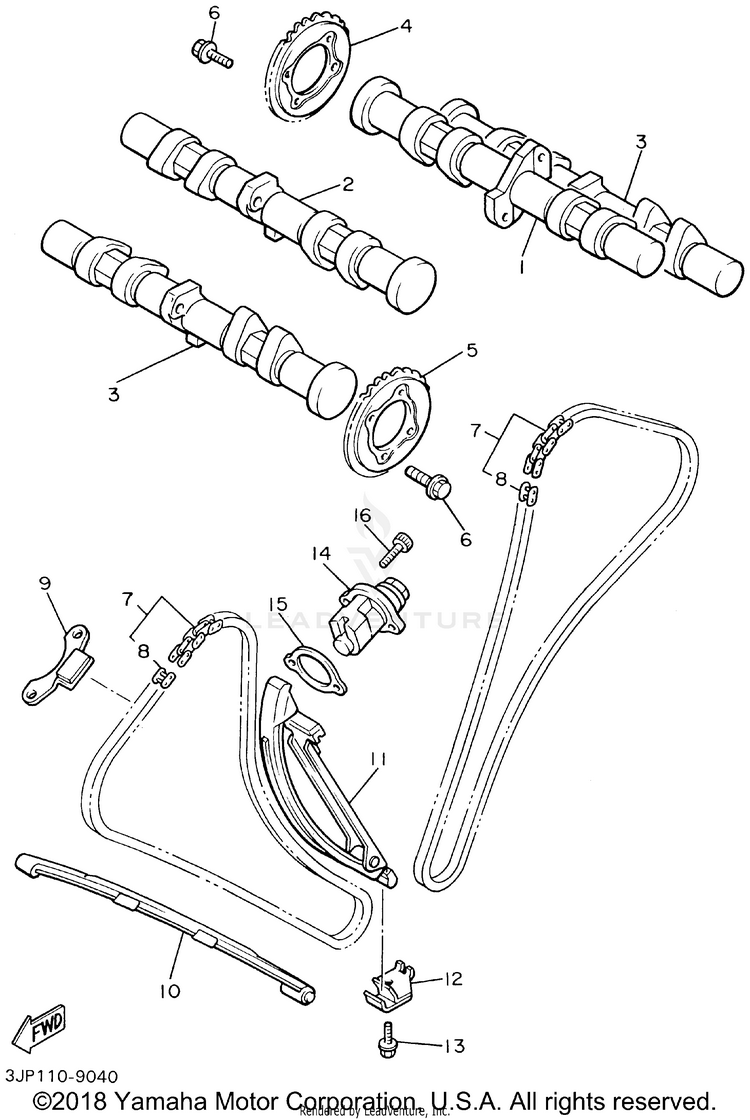

CAMSHAFT CHAIN

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12WF-12171-01-00CAMSHAFT 1 | (3JPY)$308.99$256.41Usually ships in 7-10 business days
11FK-12171-00-00CAMSHAFT 1 | (3JPX)$274.99$214.49Usually ships in 7-10 business days
23JP-12171-01-00CAMSHAFT 1 | (3JPY)$308.99$256.41Usually ships in 7-10 business days
21FK-12171-00-00CAMSHAFT 1 | (3JPX)$274.99$214.49Usually ships in 7-10 business days
31FK-12181-00-00CAMSHAFT 2 | (3JPX)$274.99$214.49Usually ships in 7-10 business days
32WF-12181-00-00CAMSHAFT 2 | (3JPY)$252.82$197.20Usually ships in 7-10 business days
426H-12176-02-00SPROCKET, CAM CHAIN$55.99$43.67Usually ships in 7-10 business days
526H-12177-01-00SPROCKET, CAM CHAIN$55.99$43.67Usually ships in 7-10 business days
690105-07004-00

(replaces part #
90105-07342-00)

BOLT, FLANGE$6.49$5.0610+ In-Stock
79Y58A-81117-00

(replaces part #
94580-81118-00)

CHAIN (D.I.D 219FTS118LL)$94.99$74.09Not Shipping
84SV-11498-00-00PIN, JOINT$8.49$7.64Usually ships in 7-10 business days
926H-12241-00-00GUIDE, STOPPER 2$28.99$23.77Usually ships in 7-10 business days
1026H-12251-00-00DAMPER, CHAIN 1$37.99$31.15Usually ships in 7-10 business days
1126H-12252-00-00DAMPER, CHAIN 2$101.99$79.55Usually ships in 7-10 business days
1226H-12233-00-00PLATE, GUIDE STOPPER 1$9.49$8.54Usually ships in 7-10 business days
1395817-08025-00BOLT, FLANGE$9.49$7.4010+ In-Stock
1426H-12210-03-00TENSIONER ASSY, CAM CHAIN$237.99$185.63Usually ships in 7-10 business days
153JP-12213-01-00GASKET, TENSIONER CASE$8.49$7.64Usually ships in 7-10 business days
1691317-06020-00BOLT, HEX. SOCKET HEAD$2.75$2.3610+ In-Stock
