2000 Yamaha V-Max Seat OEM Parts Diagram

Submodel V-MAX - VMX1200MC - 2000

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SEAT

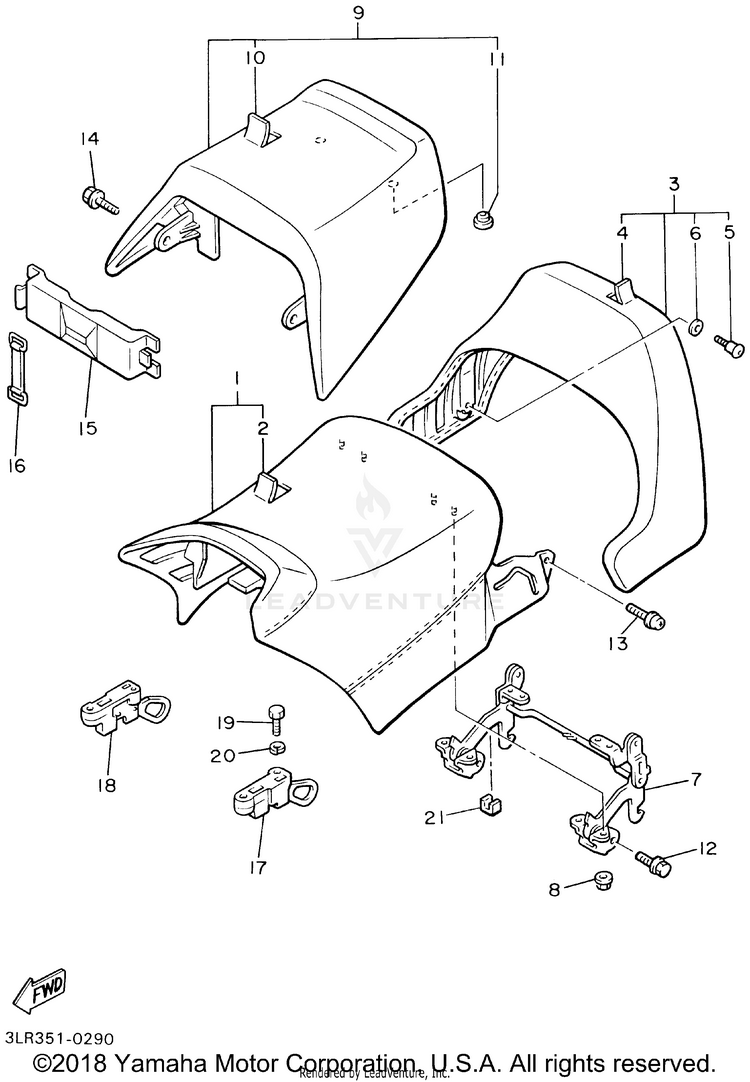

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11FK-24771-00-00SEAT COMP.$422.99$329.93Usually ships in 7-10 business days
21FK-24711-00-00COVER, SINGLE SEAT$140.99$109.97Usually ships in 7-10 business days
31FK-24790-00-00SEAT BACK ASSY$186.06$145.13Usually ships in 7-10 business days
41FK-24791-00-00COVER, SEAT BACK$140.99$109.97Not Shipping
51FK-2476F-00-00PIN, GUIDE$10.99$9.01Usually ships in 7-10 business days
61FK-24736-00-00WASHER$5.49$4.94Usually ships in 7-10 business days
71FK-24772-00-00HINGE ASS'Y$230.99$180.17Usually ships in 7-10 business days
895707-06500-00NUT, FLANGE$1.00$0.9910+ In-Stock
91FK-24750-00-00TANDEM SEAT ASSY$257.99$201.23Usually ships in 7-10 business days
101FK-24751-00-00COVER, TANDEM SEAT$118.99$92.81Usually ships in 7-10 business days
1122W-24741-00-00PAD, SEAT$9.49$7.4010+ In-Stock
1295817-06012-00

(replaces part #
95807-06012-00)

BOLT, FLANGE$1.95$1.7710+ In-Stock
1390159-06060-00

(replaces part #
90159-06033-00)

SCREW, WITH WASHER$9.49$7.4010+ In-Stock
1490119-06242-00

(replaces part #
90119-06044-00)

BOLT, WITH WASHER$8.49$6.6210+ In-Stock
151FK-2473T-00-00LID 1$33.99$27.87Usually ships in 7-10 business days
165H9-21376-00-00BAND, TOOL$6.99$6.29Not Shipping
171FK-24760-00-00SEAT LEVER ASSY$43.99$36.07Usually ships in 7-10 business days
181FK-24780-00-00SEAT LOCK ASSY$43.99$36.07Usually ships in 7-10 business days
1997017-06012-00

(replaces part #
97007-06012-00)

BOLT$4.05$3.4810+ In-Stock
2092907-06600-00WASHER, PLATE$1.00$0.9910+ In-Stock
213UF-24737-00-00DAMPER, SEAT$4.90$4.41Usually ships in 7-10 business days
