2002 Yamaha TTR250 Fender OEM Parts Diagram

Submodel TTR250 - TTR250PC - 2002

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FENDER

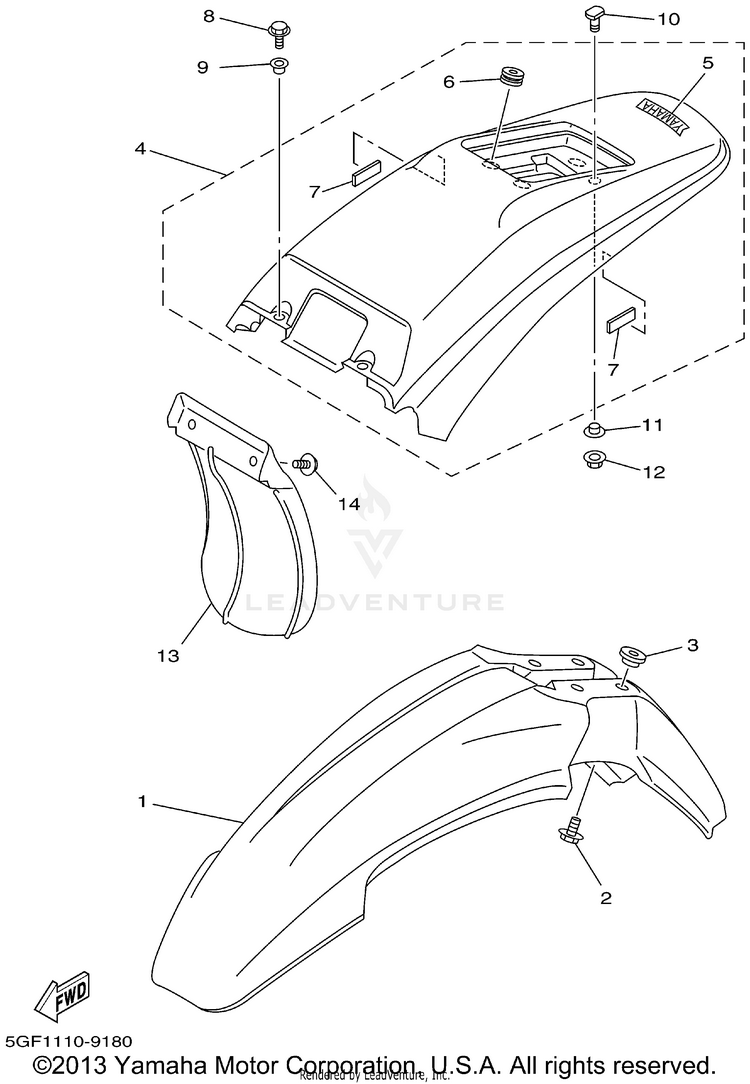

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14GY-21511-40-00FENDER, FRONT$67.99$62.035 In-Stock
290119-06063-00BOLT, WITH WASHER$10.49$8.1810+ In-Stock
390387-06681-00COLLAR$10.49$8.1810+ In-Stock
44GY-Y2161-S0-00

(replaces part #
4GY-Y2161-60-00)

REAR FENDER COMP.$140.99$109.97Not Shipping
599241-00080-00EMBLEM, YAMAHA$15.49$12.086 In-Stock
690480-14023-00

(replaces part #
90480-14102-00)

GROMMET$8.49$6.6210+ In-Stock
73XV-21717-00-00

(replaces part #
1KT-21746-00-00)

DAMPER$3.55$3.20Usually ships in 7-10 business days
897017-06016-00

(replaces part #
97007-06016-00)

BOLT$9.49$7.405 In-Stock
990387-06107-00

(replaces part #
90387-064J1-00)

COLLAR$9.49$7.409 In-Stock
1090109-064A5-00BOLT$4.00$3.441 In-Stock
1190387-06648-00COLLAR$9.49$7.406 In-Stock
1295604-06200-00

(replaces part #
95607-06200-00)

NUT, U FLANGE$2.95$2.5410+ In-Stock
134GY-21642-00-00GUARD, FLAP$47.99$37.433 In-Stock
1490119-06117-00

(replaces part #
90119-06194-00)

BOLT, WITH WASHER$5.49$4.284 In-Stock
