2002 Yamaha TTR250 Stand Footrest OEM Parts Diagram

Submodel TTR250 - TTR250PC - 2002

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STAND FOOTREST

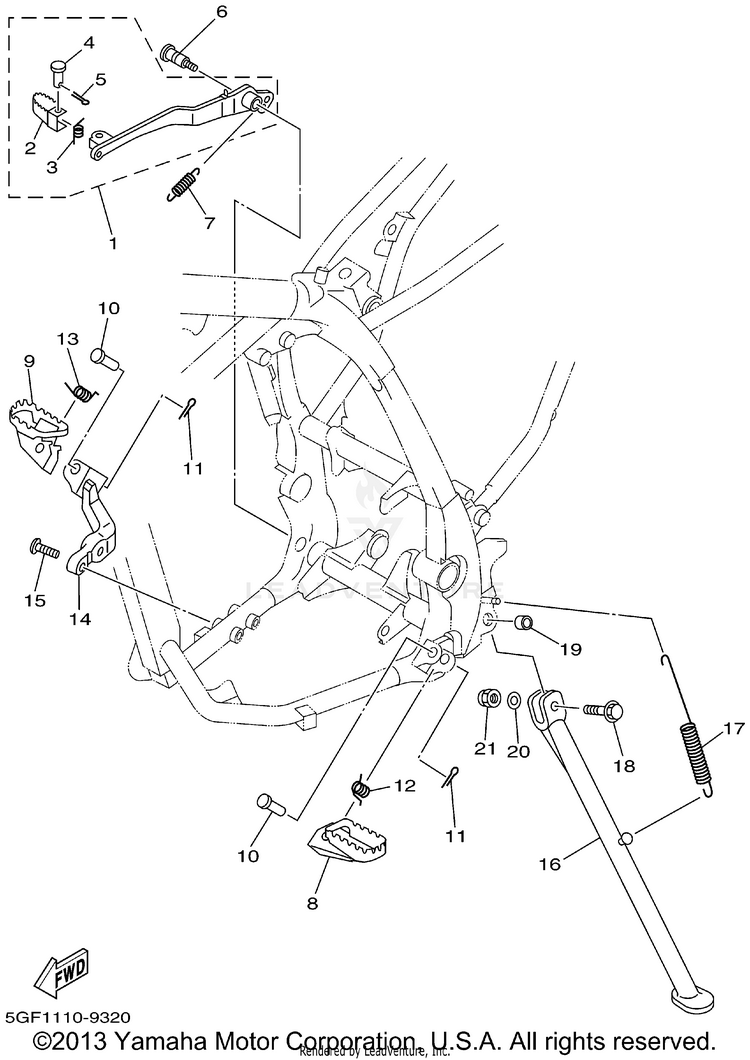

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15GF-27200-00-00PEDAL, BRAKE$63.99$49.91Not Shipping
24TP-27242-00-00PEDAL, BRAKE$28.99$23.77Usually ships in 7-10 business days
390508-14352-00SPRING, TORSION$10.49$8.188 In-Stock
491701-06022-00PIN, CLEVIS$2.70$2.324 In-Stock
591490-20015-00

(replaces part #
91401-20012-00)

PIN. COTTER$2.20$1.8910+ In-Stock
64GY-27217-10-00

(replaces part #
4GY-27217-00-00)

BOLT$18.99$14.812 In-Stock
790506-20369-00SPRING, TENSION$6.49$5.062 In-Stock
84DA-27411-00-00FOOTREST 1$88.99$69.41Usually ships in 7-10 business days
94GY-27421-00-00FOOTREST 2$72.99$56.93Not Shipping
1090240-10117-00PIN, CLEVIS$16.49$12.866 In-Stock
1191490-25020-00

(replaces part #
91401-25015-00)

PIN. COTTER$3.45$2.9710+ In-Stock
1290508-28777-00SPRING, TORSION$8.49$6.629 In-Stock
1390508-284A7-00SPRING, TORSION$8.49$6.625 In-Stock
144GY-27422-00-00BRACKET, FOOTREST 2$114.99$89.69Usually ships in 7-10 business days
1592017-10030-00

(replaces part #
90111-10008-00)

BOLT, BUTTON HEAD$5.49$5.258 In-Stock
164GY-27311-01-00STAND, SIDE$72.99$56.93Usually ships in 7-10 business days
1790506-35474-00SPRING, TENSION$22.99$17.936 In-Stock
1890105-10728-00BOLT, FLANGE$9.49$8.54Usually ships in 7-10 business days
1990387-1003G-00COLLAR$23.99$18.7110+ In-Stock
2092990-10200-00WASHER, PLAIN$3.80$3.2710+ In-Stock
2195617-10100-00NUT, U$9.49$7.405 In-Stock
