2002 Yamaha TW200 Handle Switch Lever OEM Parts Diagram

Submodel TW200 - TW200PC - 2002

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

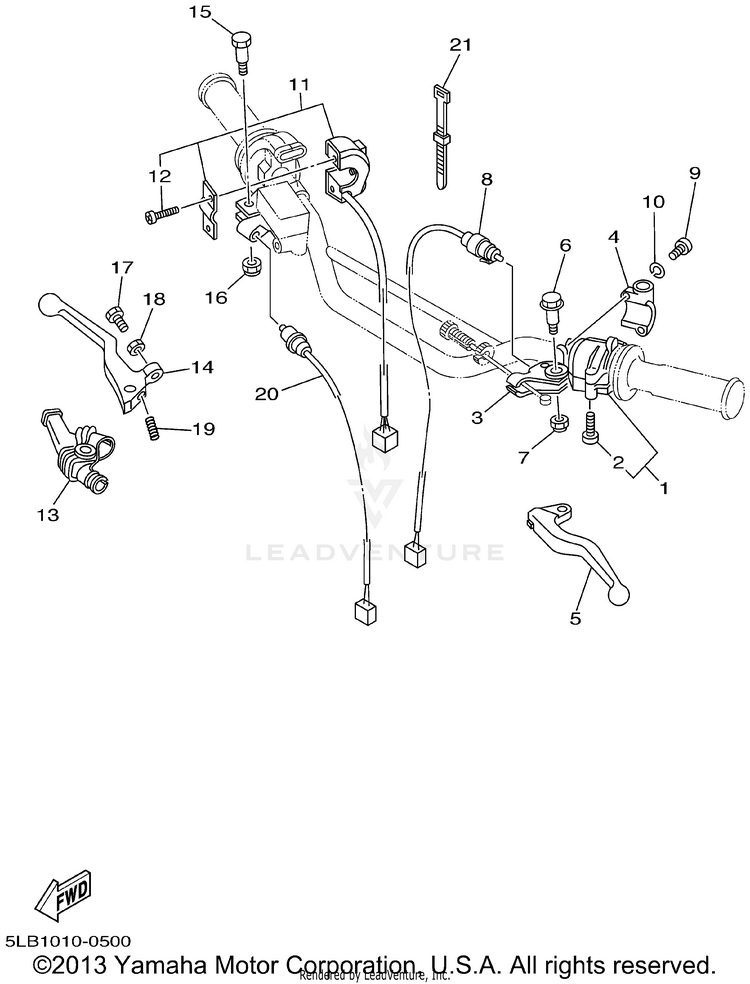

HANDLE SWITCH LEVER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14CS-83973-00-00SWITCH, HANDLE 3$219.99$171.592 In-Stock
298517-05030-00

(replaces part #
98507-05030-00)

SCREW, PAN HEAD$11.49$8.962 In-Stock
31LN-82911-00-00HOLDER, LEVER 1$44.99$35.092 In-Stock
433G-82913-01-00HOLDER, LEVER LOWER 1$21.99$17.159 In-Stock
54GY-83912-00-00LEVER 1$31.99$24.9510+ In-Stock
690109-06799-00BOLT$5.49$4.288 In-Stock
795617-06100-00

(replaces part #
95607-06100-00)

NUT, U$2.90$2.4910+ In-Stock
84GY-82917-01-00SWITCH$49.99$38.992 In-Stock
998517-05020-00

(replaces part #
98507-05020-00)

SCREW, PAN HEAD$1.75$1.503 In-Stock
1092907-05100-00WASHER, SPRING$9.49$7.706 In-Stock
115LB-83975-01-00

(replaces part #
5LB-83975-00-00)

SWITCH, HANDLE 2$98.99$77.21Usually ships in 7-10 business days
1298507-05018-00SCREW, PAN HEAD$3.55$3.0510+ In-Stock
131T5-26372-00-00COVER, HANDLE LEVER 1$22.99$17.934 In-Stock
1455Y-83922-02-00

(replaces part #
55Y-83922-00-00)

LEVER 2$41.99$32.756 In-Stock
1590109-06577-00BOLT$6.49$5.0610+ In-Stock
1695617-06100-00

(replaces part #
95607-06100-00)

NUT, U$2.90$2.4910+ In-Stock
1790149-06131-00SCREW$9.49$7.4010+ In-Stock
1890170-06010-00NUT$9.49$7.404 In-Stock
1990501-10312-00SPRING, COMPRESSION$9.49$7.405 In-Stock
202UJ-83980-00-00

(replaces part #
3DM-83980-00-00)

FRONT STOP SWITCH ASSY$47.99$39.35Usually ships in 7-10 business days
21437-83936-01-00BAND, SWITCH CORD$8.49$6.6210+ In-Stock
