SEAT

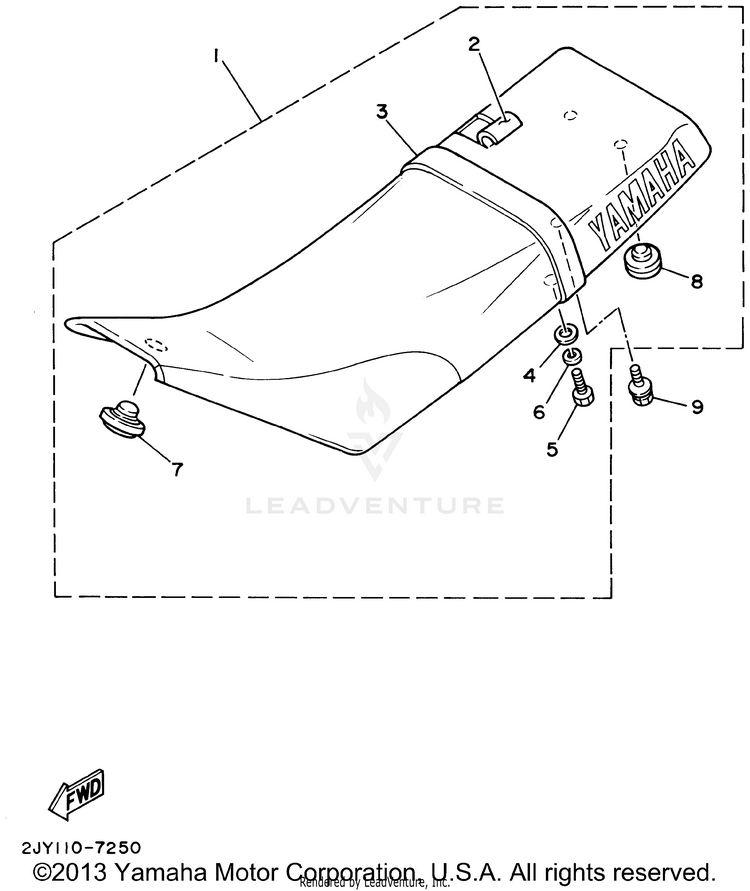

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12JX-24770-90-00SEMI-DOUBLE SEAT ASSY$349.99$272.99Not Shipping
22JX-24731-90-00COVER, SEAT$118.99$92.81Not Shipping
32JX-24734-60-00BAND, SEAT$19.99$16.39Usually ships in 7-10 business days
490201-06057-00

(replaces part #
90201-06059-00)

WASHER, PLATE$6.49$5.067 In-Stock
597017-06020-00

(replaces part #
97007-06020-00)

BOLT$4.06$3.4910+ In-Stock
692907-06100-00WASHER, SPRING$1.30$1.1210+ In-Stock
718A-24723-00-00DAMPER, SEAT$9.49$8.54Usually ships in 7-10 business days
81L9-24741-00-00

(replaces part #
1L9-24741-A0-00)

PAD, SEAT$10.99$8.5710+ In-Stock
990119-06063-00BOLT, WITH WASHER$10.49$8.1810+ In-Stock
