2002 Yamaha V-Star 650 Custom Oil Pump OEM Parts Diagram

Submodel V-STAR CUSTOM - XVS650PC - 2002

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

OIL PUMP

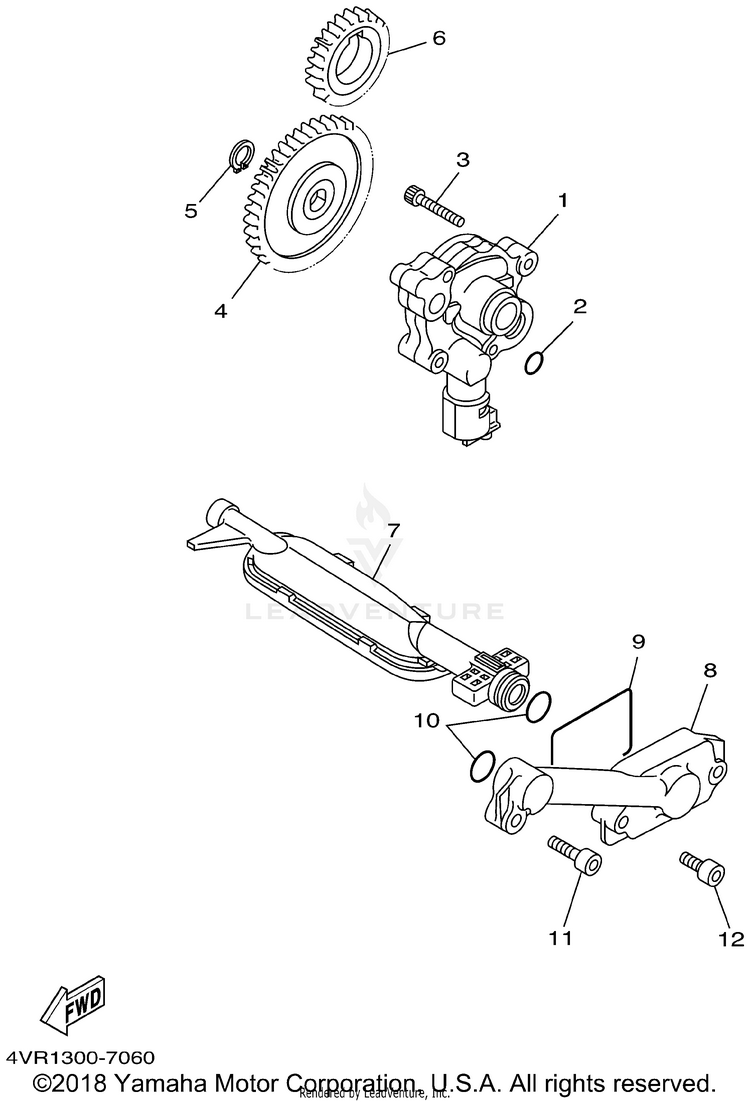

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14VR-13300-00-00OIL PUMP ASSY$258.99$202.01Usually ships in 7-10 business days
293210-10096-00O-RING$4.05$3.4810+ In-Stock
390110-06138-00BOLT$6.49$5.0610+ In-Stock
44VR-13325-01-00

(replaces part #
4VR-13325-00-00)

GEAR, PUMP DRIVEN (39T)$17.49$14.34Usually ships in 7-10 business days
599009-11400-00CIRCLIP$9.49$7.406 In-Stock
622U-13324-00-00GEAR, DRIVE (24T)$32.99$27.05Usually ships in 7-10 business days
74TR-13410-00-00STRAINER HOUSING ASSY$34.99$28.69Usually ships in 7-10 business days
84VR-13417-01-00

(replaces part #
4VR-13417-00-00)

COVER, STRAINER$101.99$79.55Usually ships in 7-10 business days
922U-13415-00-00SEAL, OIL STRAINER$13.49$11.06Usually ships in 7-10 business days
1093210-15151-00O-RING$8.49$6.622 In-Stock
1191314-06025-00BOLT, HEXAGON SOCKET HEAD$9.49$7.407 In-Stock
1291314-06020-00BOLT, HEXAGON SOCKET HEAD$2.65$2.5710+ In-Stock
