2002 Yamaha V-Star Custom XVS1100 Crankcase OEM Parts Diagram

Submodel V-STAR 1100 CUSTOM - XVS1100PC - 2002

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CRANKCASE

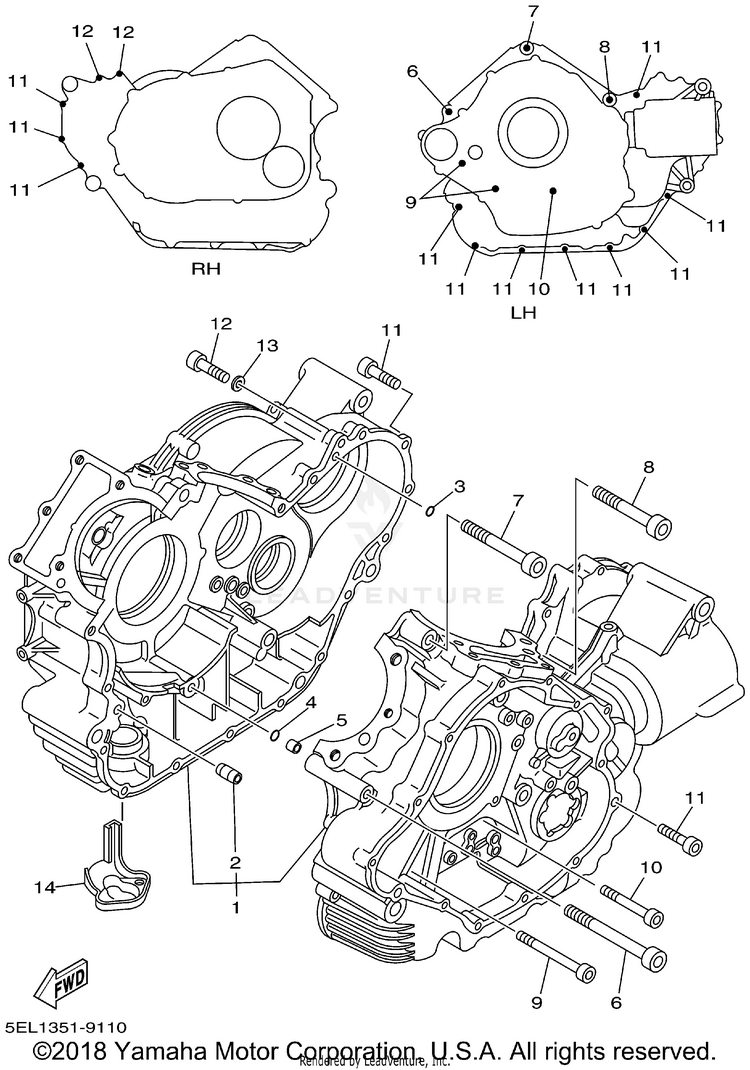

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15EL-15100-00-00CRANKCASE ASSY$1,195.99$1,046.31Usually ships in 7-10 business days
299530-14016-00PIN, DOWEL A$3.80$3.2710+ In-Stock
393210-07135-00O-RING$6.99$5.4510+ In-Stock
AFTERMARKET ALTERNATIVE
$10.45$4.9910+ In-Stock
493210-07135-00O-RING$6.99$5.4510+ In-Stock
AFTERMARKET ALTERNATIVE
$10.45$4.9910+ In-Stock
590387-06704-00COLLAR$2.95$2.66Usually ships in 7-10 business days
691317-10100-00BOLT$8.99$8.09Usually ships in 7-10 business days
791317-10070-00BOLT$7.49$6.74Usually ships in 7-10 business days
891317-10060-00BOLT, HEX. SOCKET HEAD$9.49$8.54Usually ships in 7-10 business days
991317-06080-00BOLT$6.49$5.063 In-Stock
1091317-06055-00BOLT$4.50$3.8710+ In-Stock
1190110-06138-00BOLT$6.49$5.0610+ In-Stock
1291314-06030-00BOLT, HEXAGON SOCKET HEAD$9.49$8.547 In-Stock
1390430-06014-00GASKET$8.99$7.0110+ In-Stock
144X7-15491-00-00PROTECTOR$35.99$29.51Usually ships in 7-10 business days
