TAILLIGHT

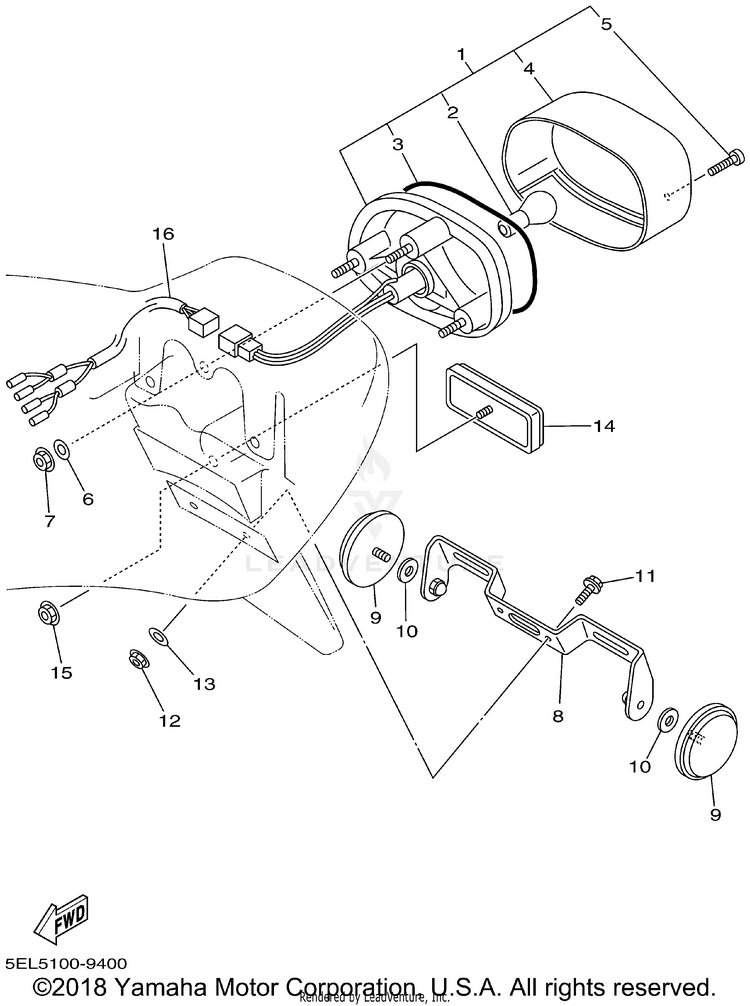

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14TV-84700-00-00TAILLIGHT ASSY$164.99$128.69Usually ships in 7-10 business days
2256-84714-61-00BULB (12V-27/8W)$12.99$10.1310+ In-Stock
34TX-84723-00-00GASKET, TAIL LENS$5.49$4.283 In-Stock
44TR-84733-00-00LENS, TAILLIGHT$24.99$19.497 In-Stock
597707-40520-00SCREW, TAPPING$10.49$8.186 In-Stock
690201-06020-00

(replaces part #
90201-065F3-00)

WASHER, PLATE$10.49$8.1810+ In-Stock
795617-06100-00NUT, U$2.90$2.4910+ In-Stock
85EL-84751-00-00BRACKET, LICENSE$36.99$30.33Usually ships in 7-10 business days
9449-85131-02-00REFLECTOR, REAR 1$33.99$26.514 In-Stock
1090201-05033-00WASHER, SPECIAL$11.49$8.964 In-Stock
1195027-06014-00BOLT, FLANGE$0.95$0.825 In-Stock
1295617-06100-00NUT, U$2.90$2.4910+ In-Stock
1390201-06095-00

(replaces part #
90201-06063-00)

WASHER, PLATE$9.49$7.407 In-Stock
143Y6-85130-02-00REAR REFLECTOR ASSY$30.99$24.173 In-Stock
1595707-05500-00NUT, FLANGE$9.49$7.4010+ In-Stock
164TR-84717-00-00CORD, TAILLIGHT$29.99$24.59Usually ships in 7-10 business days
