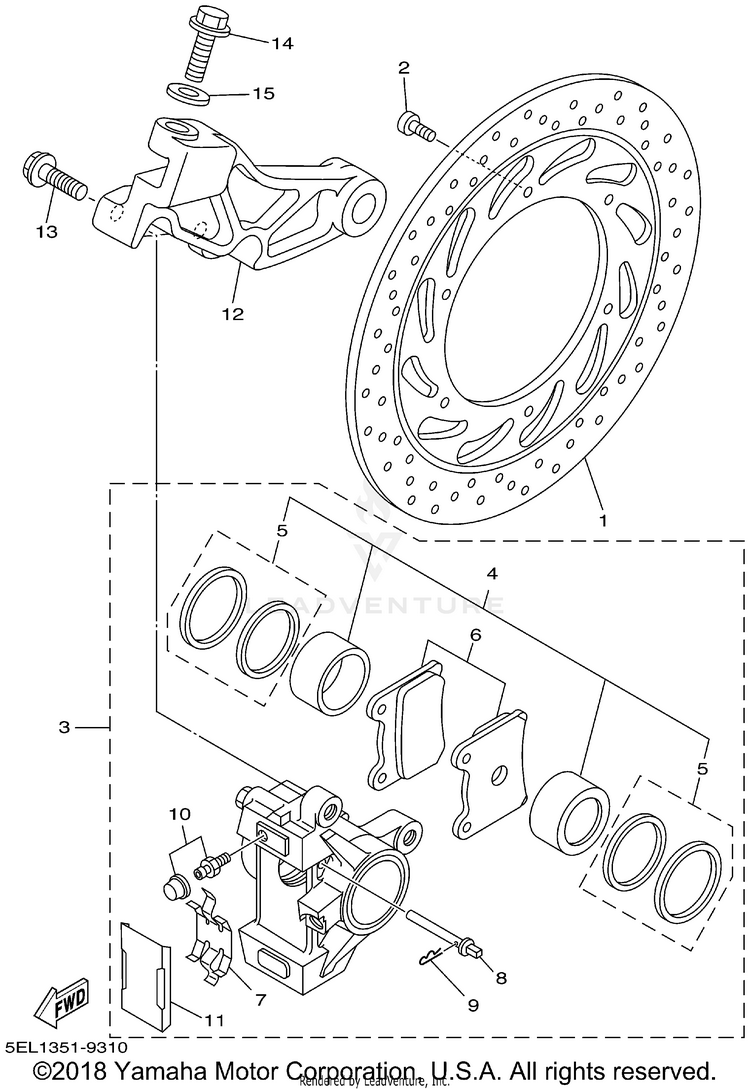

REAR BRAKE CALIPER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15EL-2582W-00-00DISC, REAR BRAKE 2$321.99$251.15Usually ships in 7-10 business days
290111-08057-00

(replaces part #
90109-083G4-00)

BOLT$2.50$2.1510+ In-Stock
35EL-2580W-01-00

(replaces part #
5EL-2580W-00-00)

CALIPER ASSY, REAR 2$528.99$427.75Usually ships in 7-10 business days
431A-W0057-00-00PISTON ASSY, CALIPER$153.99$120.11Usually ships in 7-10 business days
531A-W0047-00-00CALIPER SEAL KIT$62.99$49.135 In-Stock
63XF-W0045-50-00BRAKE PAD KIT$50.99$39.774 In-Stock
71WG-25919-00-00

(replaces part #
29L-25919-00-00)

SUPPORT, PAD$11.99$9.83Usually ships in 7-10 business days
83HE-25924-00-00PIN, PAD$22.99$17.933 In-Stock
93GM-25925-00-00CLIP$12.99$10.136 In-Stock
101J3-W0048-00-00BLEED SCREW KIT$33.99$27.87Usually ships in 7-10 business days
1151J-25836-01-00

(replaces part #
51J-25836-00-00)

COVER, DUST$17.49$14.34Usually ships in 7-10 business days
125EL-25819-01-00BRACKET, CALIPER$147.99$117.20Usually ships in 7-10 business days
1390105-10638-00BOLT, WASHER BASED$8.49$6.6210+ In-Stock
1490105-10010-00BOLT, FLANGE$10.49$8.60Usually ships in 7-10 business days
1590201-105R9-00WASHER, PLATE$10.49$8.1810+ In-Stock
