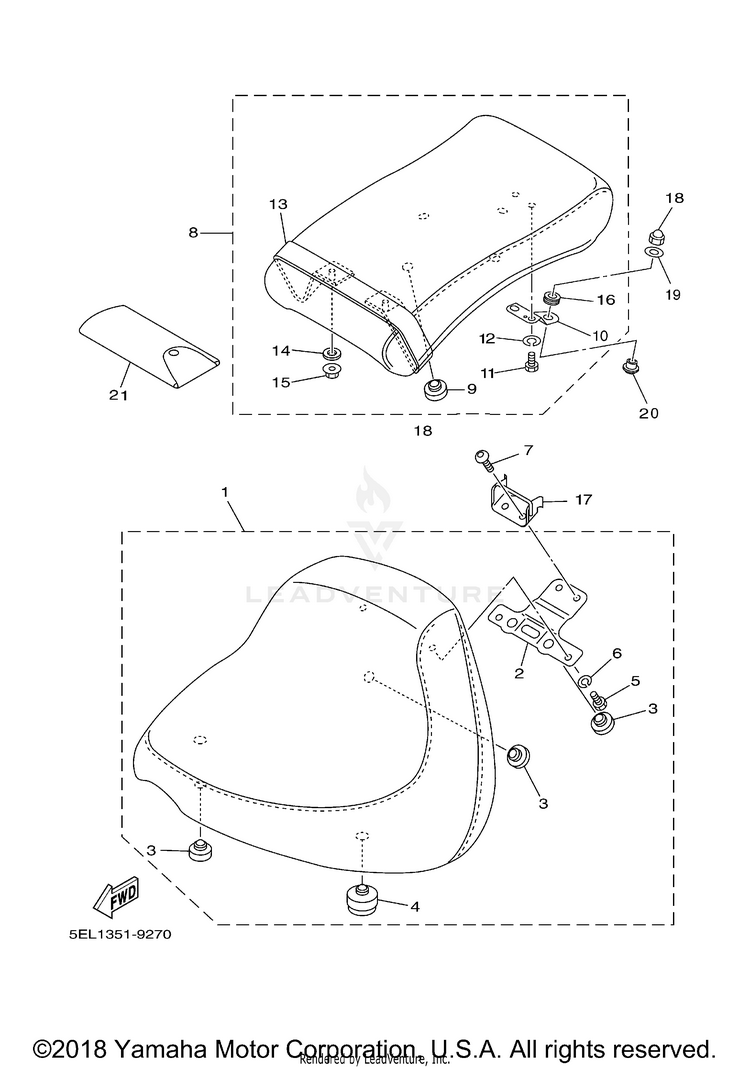

2002 Yamaha V-Star Midnight Custom XVS1100M Seat OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	5EL-24710-00-00	SINGLE SEAT ASSY	$401.99	$313.55	Usually ships in 7-10 business days
2	5EL-2475H-00-00	BRACKET, SEAT LEVER 1	$26.99	$22.13	Usually ships in 7-10 business days
3	22W-24741-00-00	PAD, SEAT	$9.49	$7.40	10+ In-Stock
4	1T4-24741-00-00	PAD, SEAT	$8.49	$7.64	Usually ships in 7-10 business days
5	97017-06012-00	BOLT	$4.05	$3.48	10+ In-Stock
6	92907-06100-00	WASHER, SPRING	$1.30	$1.12	10+ In-Stock
7	92017-06016-00	BOLT, HEX. SOCKET BUTTON	$9.49	$7.40	10+ In-Stock
8	5EL-24750-10-00	TANDEM SEAT ASSY	$233.99	$182.51	Usually ships in 7-10 business days
9	22W-24741-00-00	PAD, SEAT	$9.49	$7.40	10+ In-Stock
10	5PB-2475J-00-00	BRACKET, SEAT LEVER 2	$13.49	$11.06	Usually ships in 7-10 business days
11	97017-06012-00	BOLT	$4.05	$3.48	10+ In-Stock
12	92907-06100-00	WASHER, SPRING	$1.30	$1.12	10+ In-Stock
13	5EL-24734-00-00	BAND, SEAT	$14.99	$12.29	Usually ships in 7-10 business days
14	90201-06020-00 (replaces part # 90201-065F3-00)	WASHER, PLATE	$10.49	$8.18	10+ In-Stock
15	95707-06500-00	NUT, FLANGE	$1.00	$0.99	10+ In-Stock
16	5YS-24742-00-00	GROMMET	$2.50	$2.15	1 In-Stock
17	5EL-2475N-00-00	BRACKET	$48.99	$40.17	Usually ships in 7-10 business days
18	90176-08001-00	NUT, CROWN	$9.49	$8.54	Usually ships in 7-10 business days
19	90201-08042-00	WASHER, PLATE	$9.49	$8.54	1 In-Stock
